To remove the cabinet
Removing the cabinet allows access to the rear deck, fan assembly, power supply
cover, power supply assembly, and power switch assembly.
1 Using a TORX T20 driver, remove the five screws securing the cabinet to the
rear deck assembly.
2 Carefully slide cabinet back away from rear deck assembly.

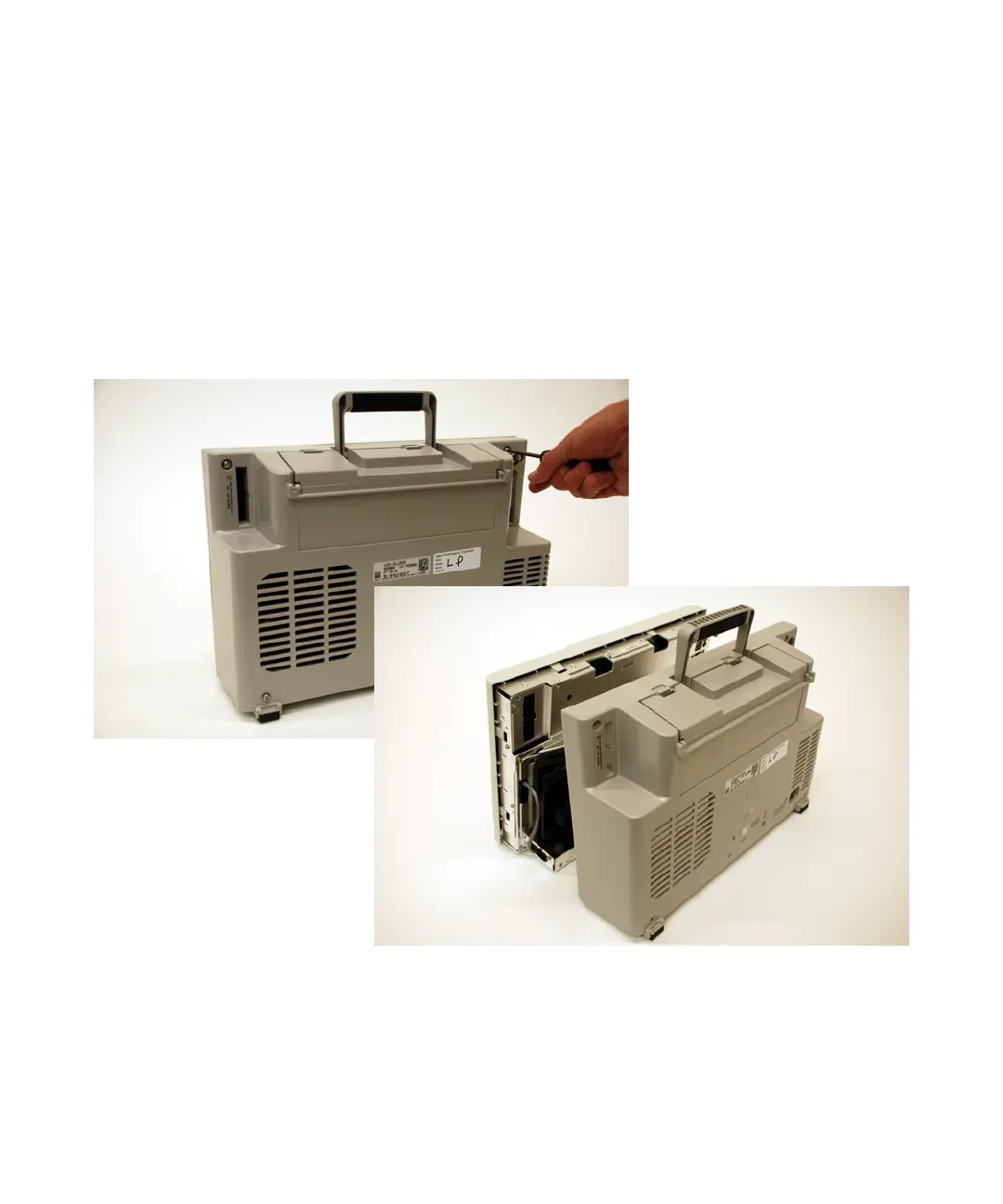

Figure 18 Removing the cabinet
