To remove the acquisition board
These steps show how to remove the acquisition board.
1 Using a TORK T6 driver locate and remove the 4 screws on the front of the
instrument (4 Channel version).

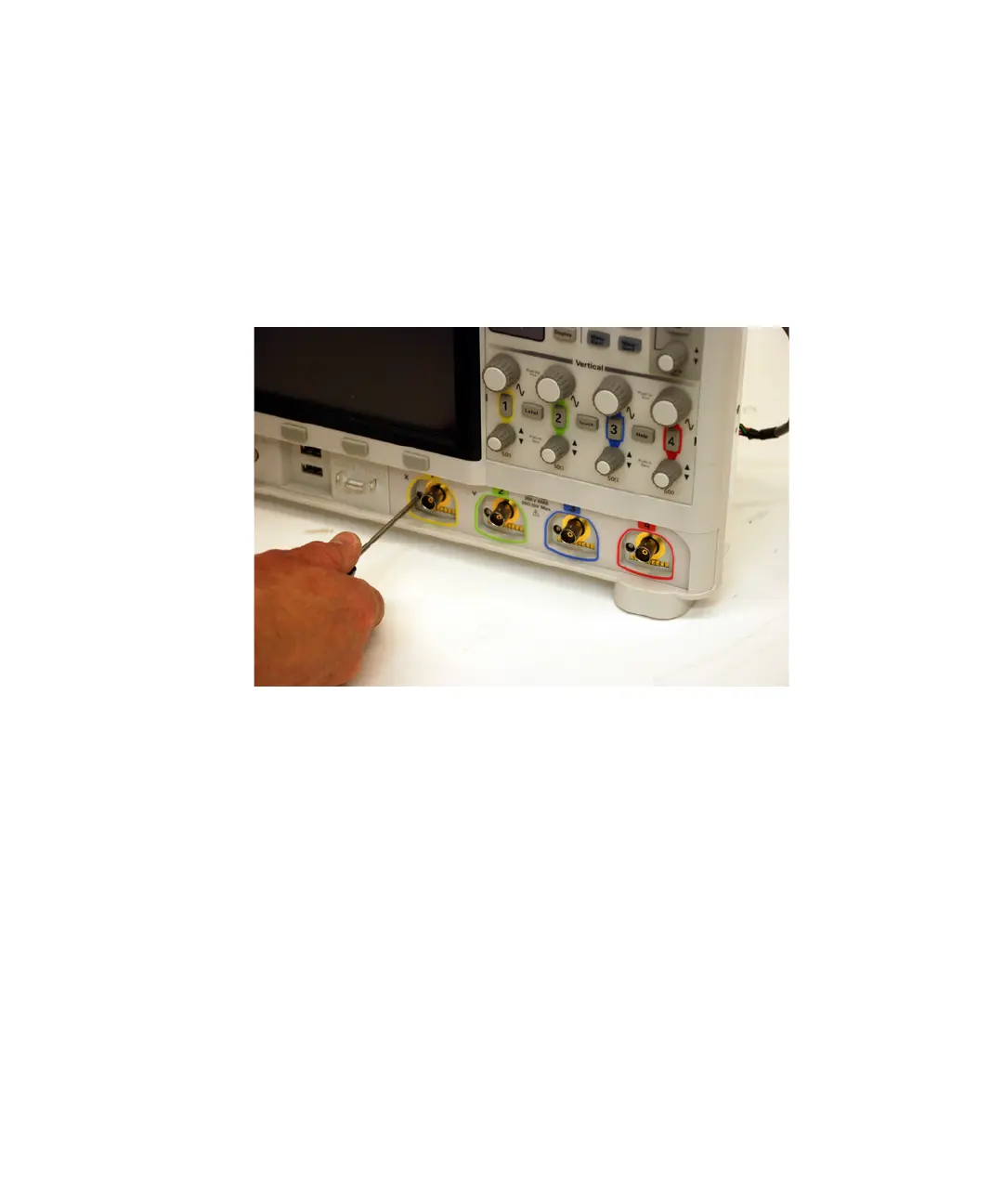

Figure 28 Removing the analog channel BNC securing T6 screws
