Troubleshooting 4
6000 X-Series Oscilloscopes Service Guide 67

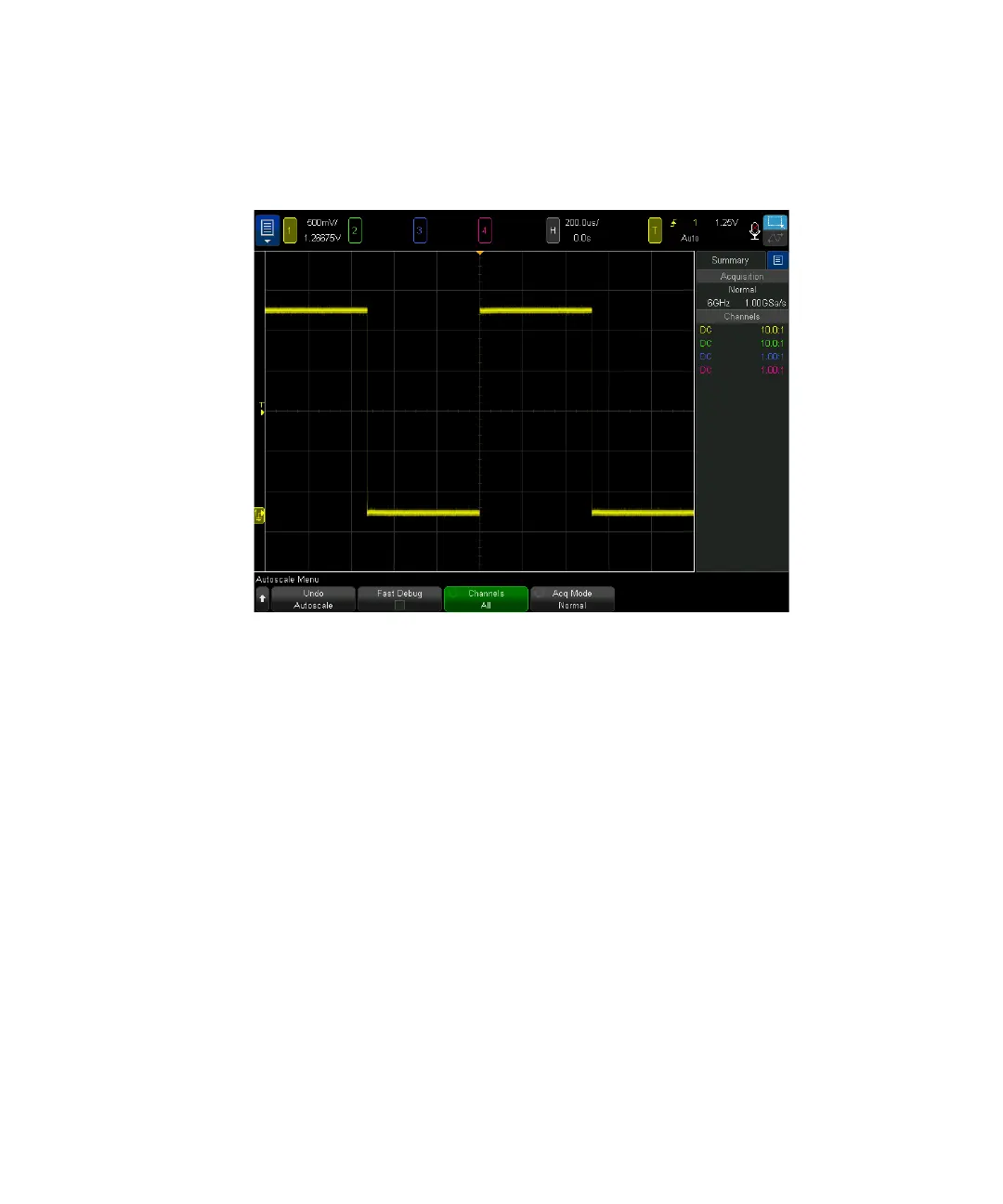

5 You should see a waveform on the oscilloscope’s display similar to this:
If you see the waveform, but the square wave is not shaped correctly as shown
above, perform the procedure “To compensate passive probes" on page 67.
If you do not see the waveform, ensure your power source is adequate, the
oscilloscope is properly powered-on, and the probe is connected securely to
the front-panel analog channel input BNC and to the Demo 2 (Probe Comp)
terminal.
6 If you still do not see the waveform, use the troubleshooting flowchart in this
chapter to isolate the problem.
To compensate passive probes
You should compensate your passive probes to match their characteristics to the
oscilloscope’s channels. A poorly compensated probe can introduce measurement
errors.
1 Perform the procedure “To perform an Auto Scale on the Probe Comp
signal" on page 66
2 Press the channel key to which the probe is connected ([1], [2], etc.).
