Functions and Features 3
Keysight U1253B User’s and Service Guide 105
Selecting square wave output duty cycle
1 Set the rotary switch to .
2 Press to select duty cycle (%) on the primary display.
3 Press or to adjust the duty cycle. The duty cycle can be stepped through
256 steps, with each step equivalent to 0.390625%. The best resolution the
display can offer is 0.001%.

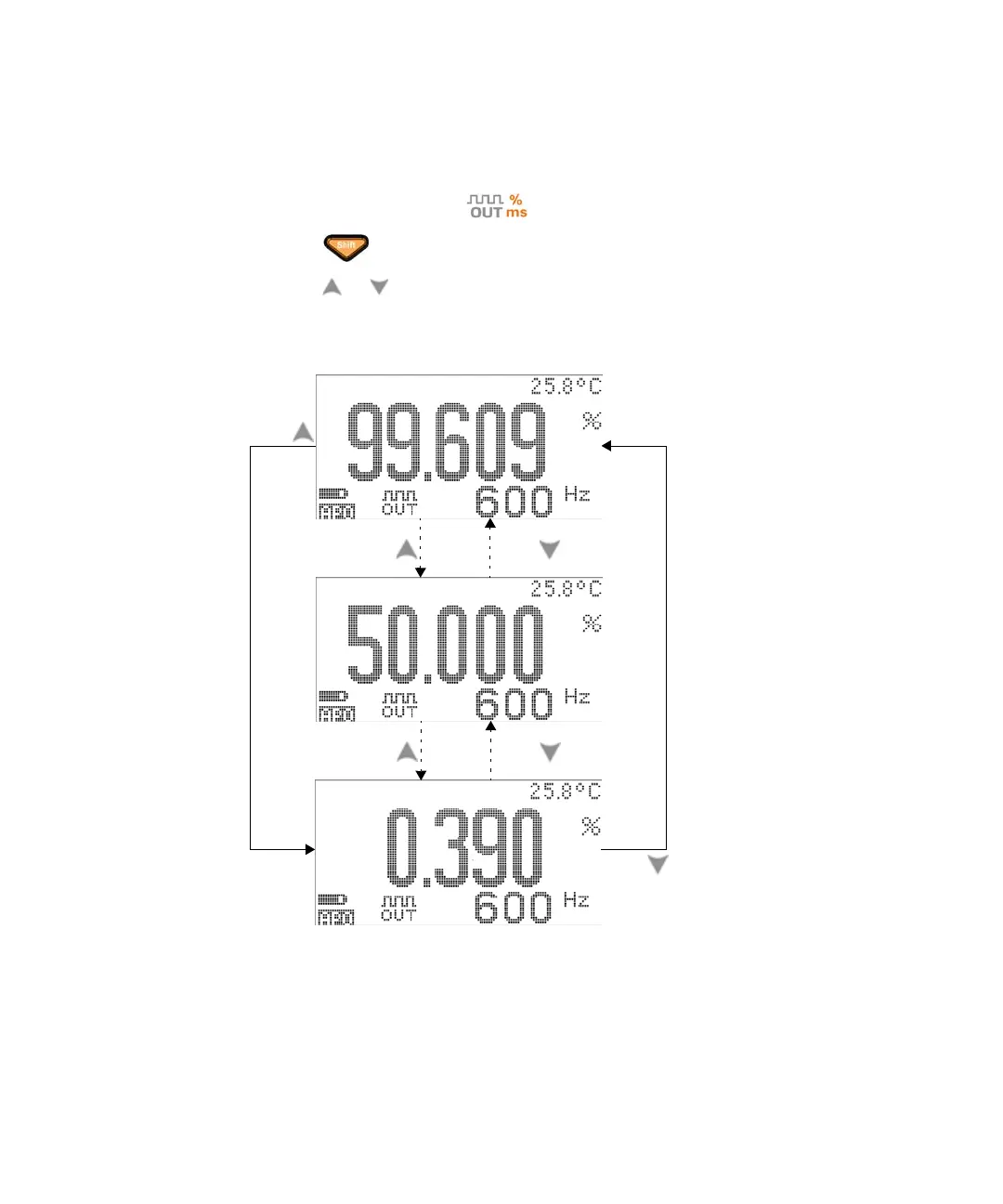

Figure 3-13 Duty cycle adjustment for square wave output
Press
Press
Press Press
Press
Press
