4 Changing the Default Settings
122 Keysight U1253B User’s and Service Guide
Setting percentage scale readout
This setting converts the DC current measurement display to percentage scale
readout: 0% to 100% based on a range of 4 mA to 20 mA or 0 mA to 20 mA.
For example, a 25% readout represents a DC current of 8 mA for the 4 mA to 20
mA range, or a DC current of 5 mA for the 0 mA to 20 mA range. To disable this
function, set this to “OFF”.

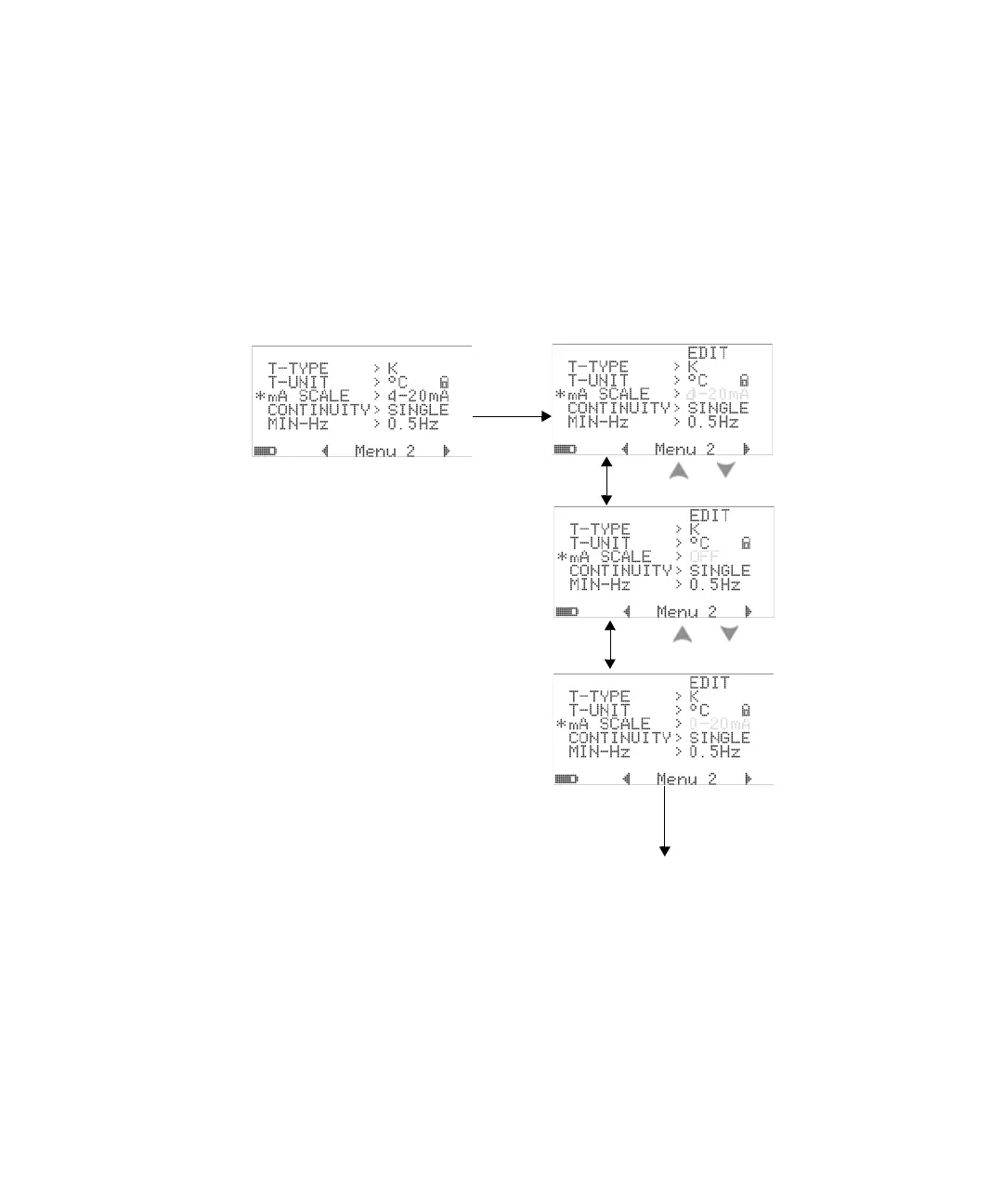

Figure 4-9 Setting up percentage scale readout
to configure
Press or
Press Hz
to edit
Press Hz to save
and exit
or press Esc
to exit without saving
to configure
Press or
