Selecting display with the Shift button
The table below shows the primary display selection, with respect to
measurement function (rotary switch position), using the Shift button.

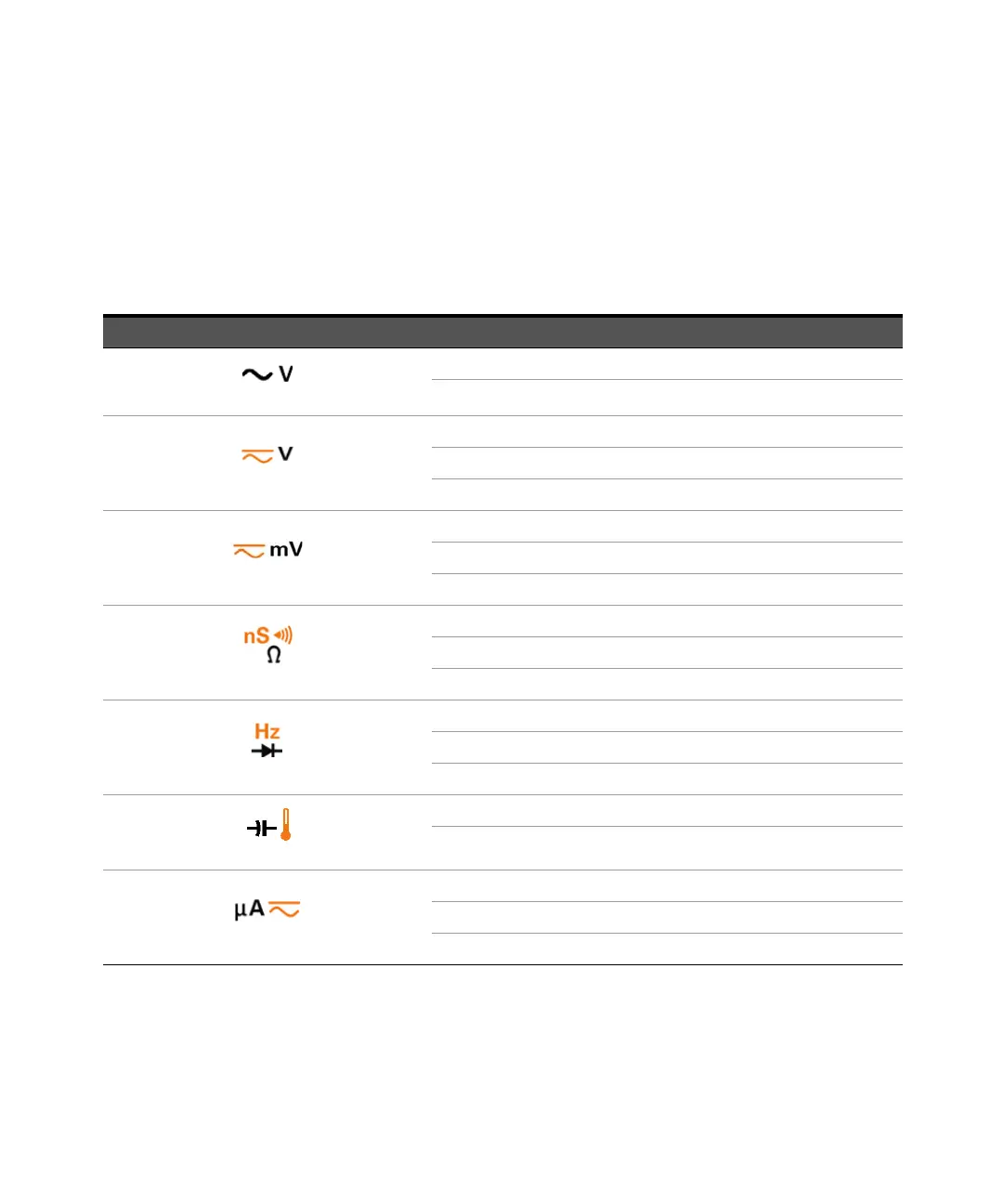

Table 1-7 Selecting display with the Shift button
Rotary switch position (Function) Primary display
(AC voltage)
AC V
dBm or dBV (in dual display mode)
[a] [b]
(AC+DC voltage)
DC V
AC V
AC+DC V
(AC+DC voltage)
DC mV
AC mV
AC+DC mV
(Resistance)
Ω
Ω (Audible)
nS
(Diode Test & Frequency)
Diode
Hz
(Capacitance & Temperature)
Capacitance
Temperature
(AC+DC current)
DC μA
AC μA
AC+DC μA
