4 Changing the Default Settings
116 Keysight U1253B User’s and Service Guide
Setting data logging mode
1 Set to “HAND” to enable manual (hand) data logging, or set to “TIME” to
enable interval (time) data logging. Refer to Figure 4-3 below.

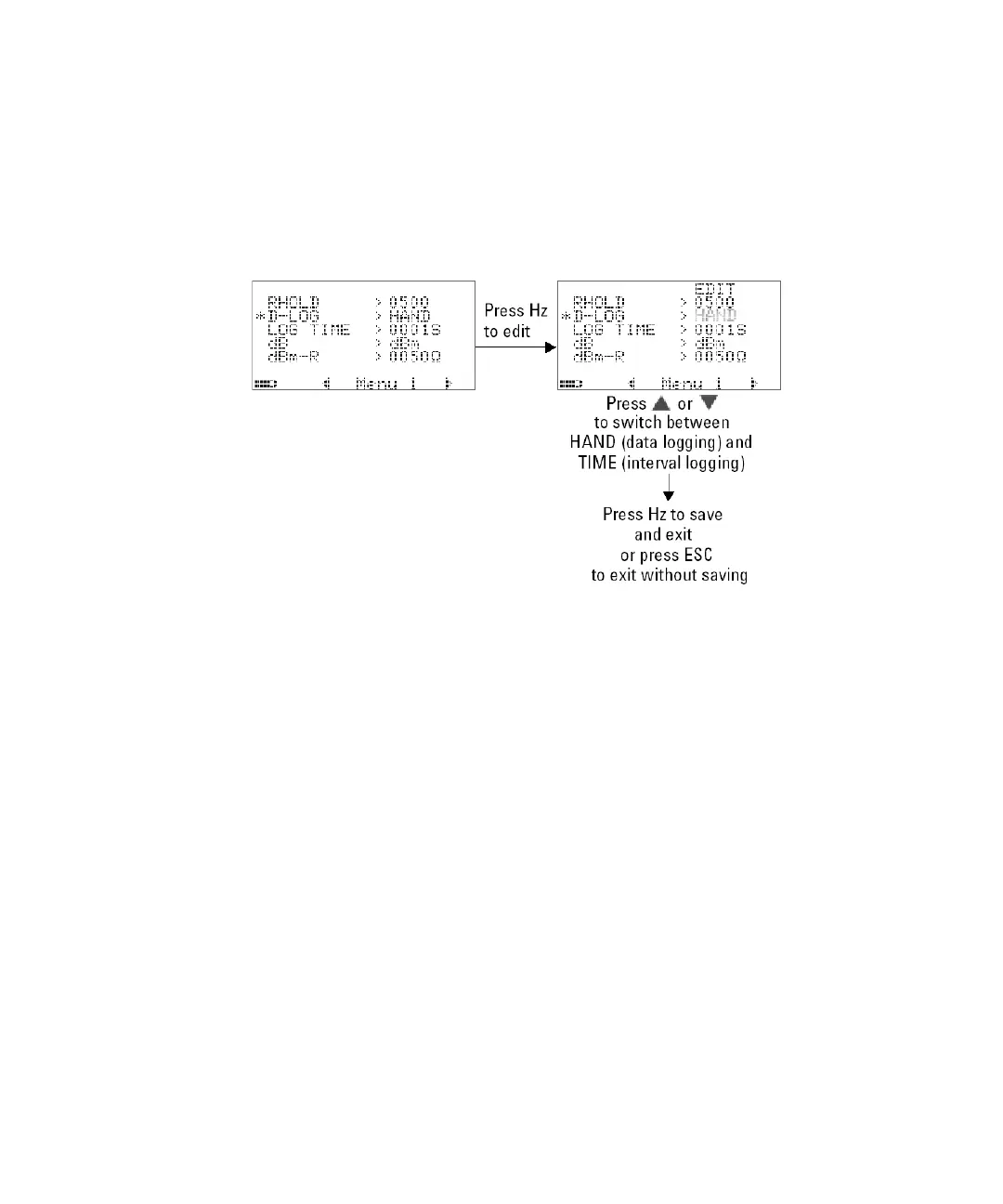

Figure 4-3 Data logging setup
2 For interval (time) data logging, set the LOG TIME within the range of 0001
second to 9999 seconds to specify the data logging interval.
