Measuring AC voltage
Set up your multimeter to measure AC voltage as shown in Figure 2-1. Probe the
test points and read the display.

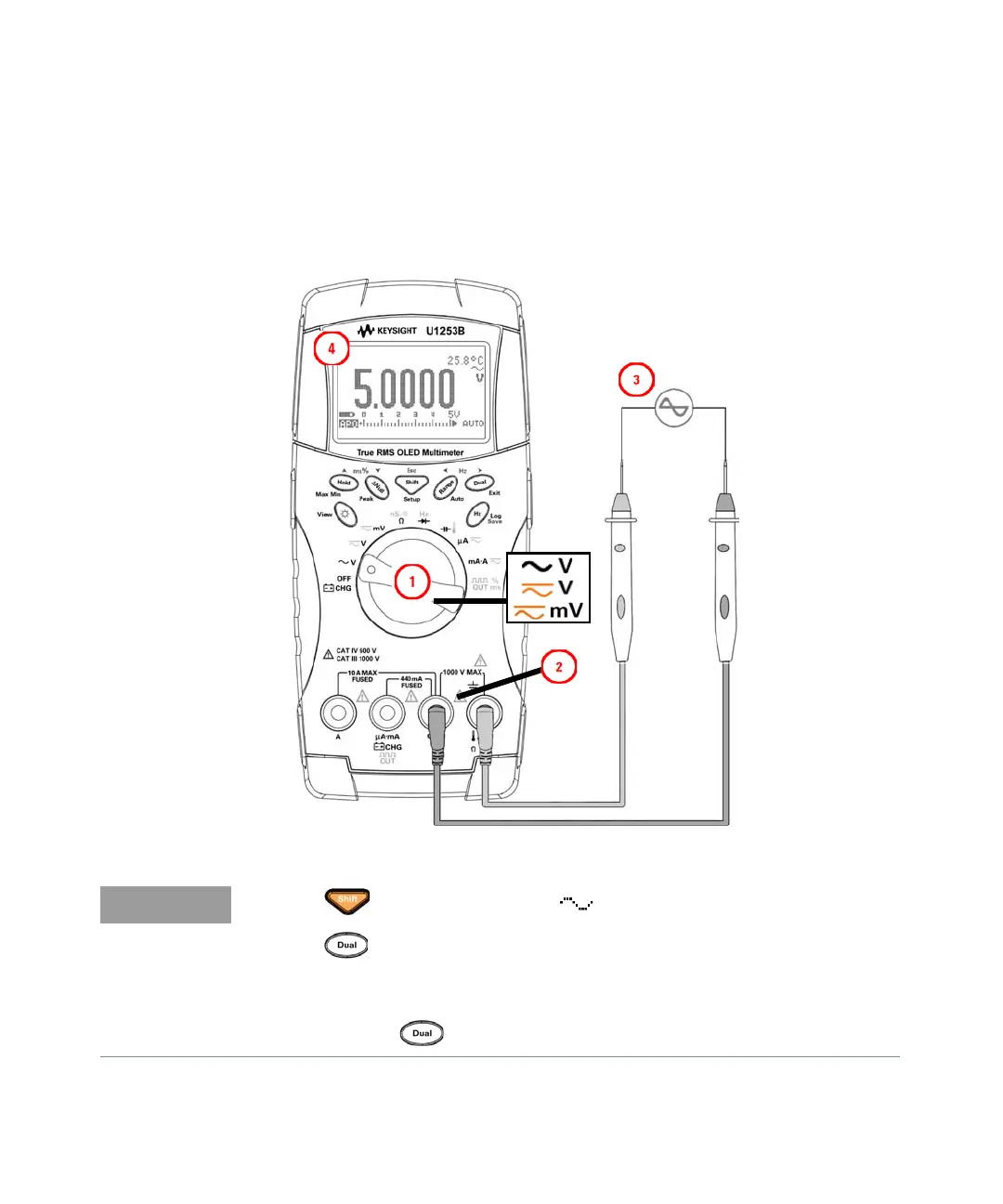

Figure 2-1 Measuring AC voltage
Red Lead
Black Lead
NOTE
– Press if necessary to ensure is shown on the display.
– Press to display dual measurements. See Table 1-8 of “Selecting
display with the Dual button” on page 44 for a list of dual measurements
available.
– Press and hold for more than 1 second to exit dual display mode.
