53220A/53230A Math, Graphing, and Data Logging 6
Keysight 53220A/53230A User’s Guide 243

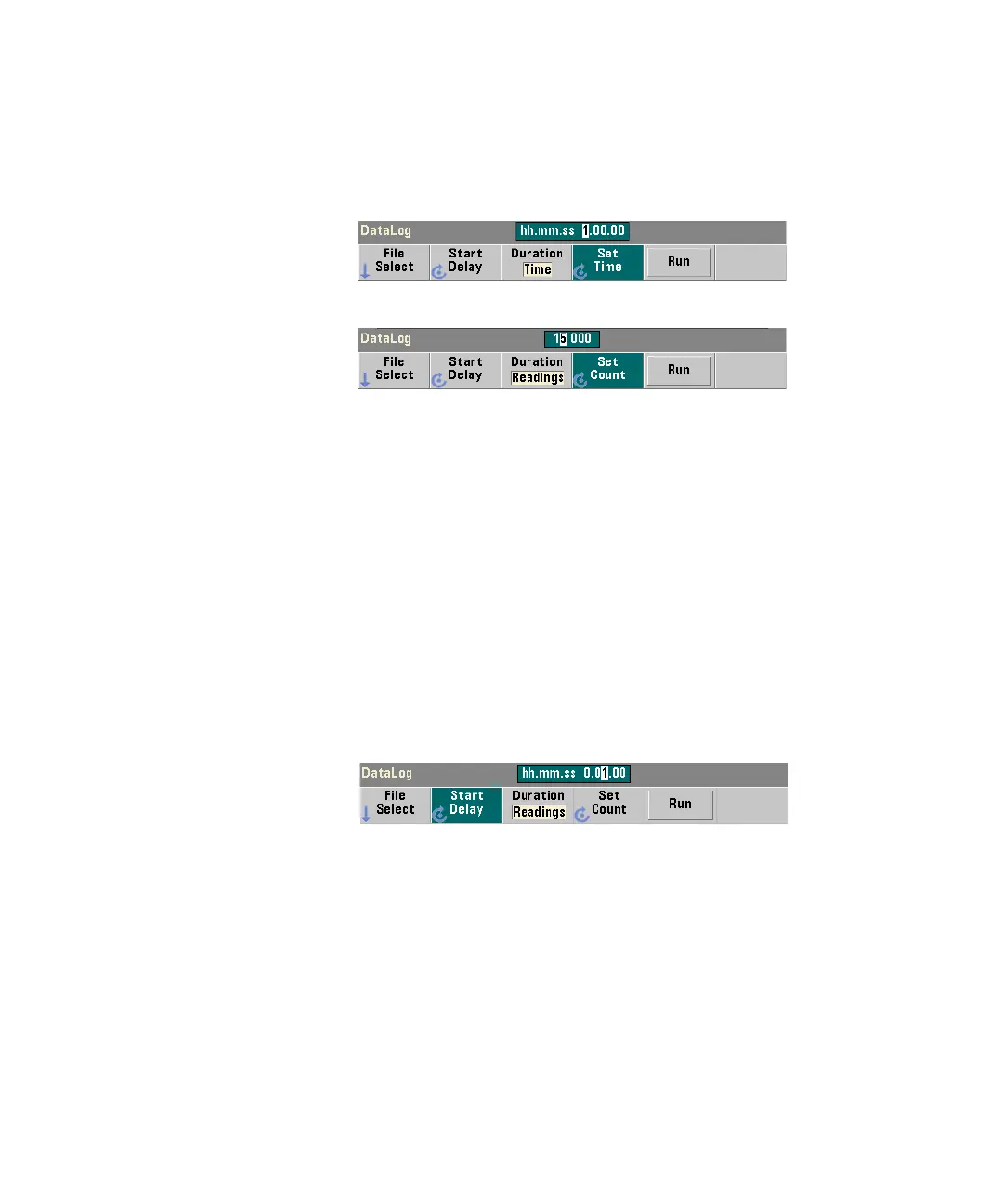

Setting the duration
In terms of Time, the data logging duration is specified in hh.mm.ss format. The
value is set using the rotary knob and arrow keys, or using the [Shift]ed numeric
keys. By highlighting specific digits in the time window, greater resolution (i.e.
minutes and seconds) of the logging time can be specified.
The maximum data logging period is 99.00.00. The reading limit, however, is
1,000,000 readings which may occur before the time duration is reached.
In terms of Readings, data logging continues until the specified number of
readings are complete. The reading count is set using the rotary knob and arrow
keys, or using the [Shift]ed numeric keys. A maximum of 1,000,000 readings can
be specified.
For the Time Stamp measurement function, only read ing duration is available.
Setting a start delay
When required, a delay can be set between the time the Run key is pressed, and
the start of data logging. The start delay is specified in hh.mm.ss format and is set
using the rotary knob and arrow keys, or using the [Shift]ed numeric keys. By
highlighting specific digits in the delay window, greater resolution (i.e. minutes
and seconds) of the delay time can be specified.
The maximum delay setting is 99:00:00.
