Math Waveforms 5
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 103
See Also • “Units for Math Waveforms" on page 101
Multiply or Divide
When you select the multiply or divide math function, the Source 1 and Source 2
values are multiplied or divided point by point, and the result is displayed.
The divide by zero case places holes (that is, zero values) in the output waveform.
Multiply is useful for seeing power relationships when one of the channels is
proportional to the current.

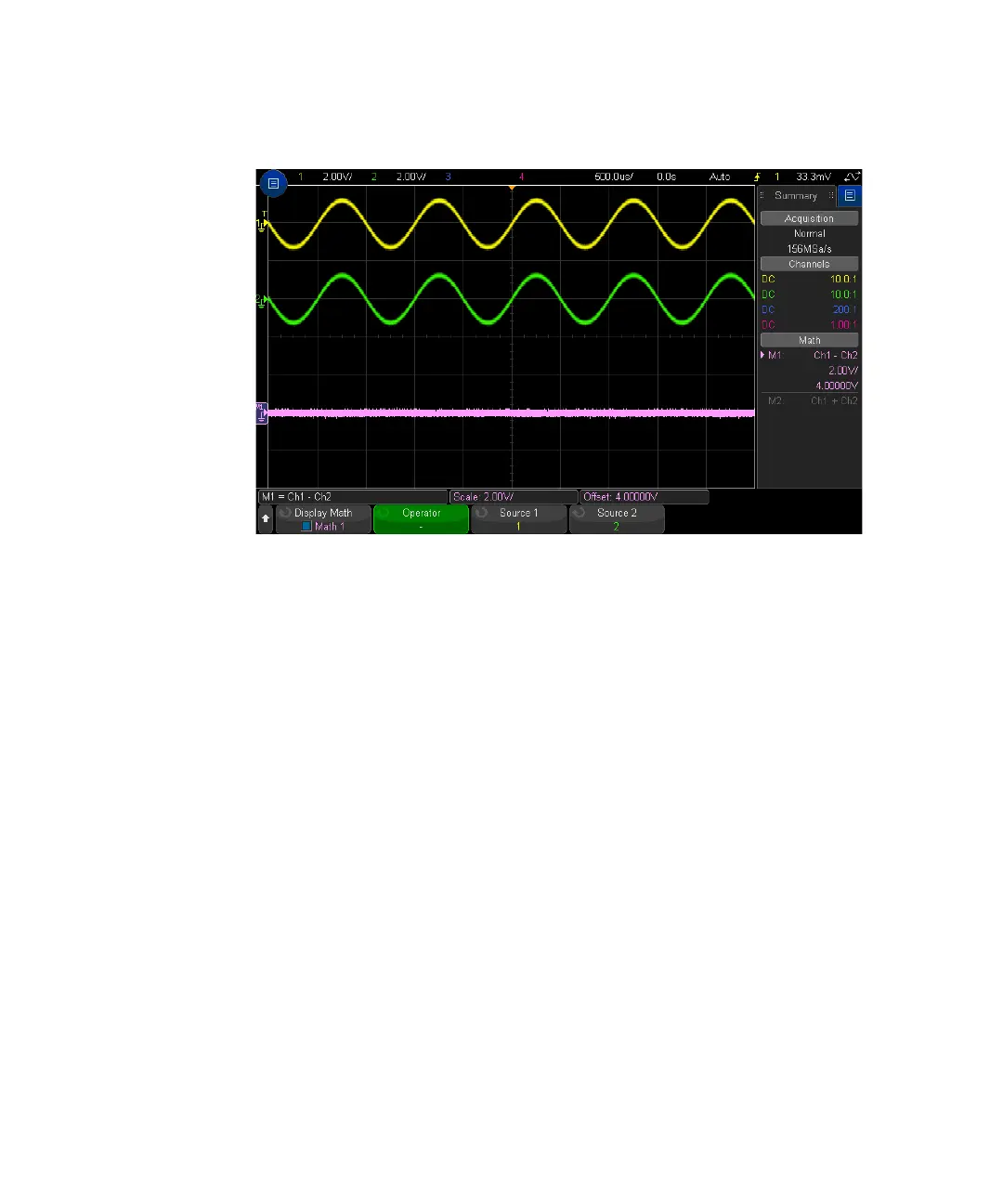

Figure 6 Example of Subtract Channel 2 from Channel 1
