7 Digital Channels

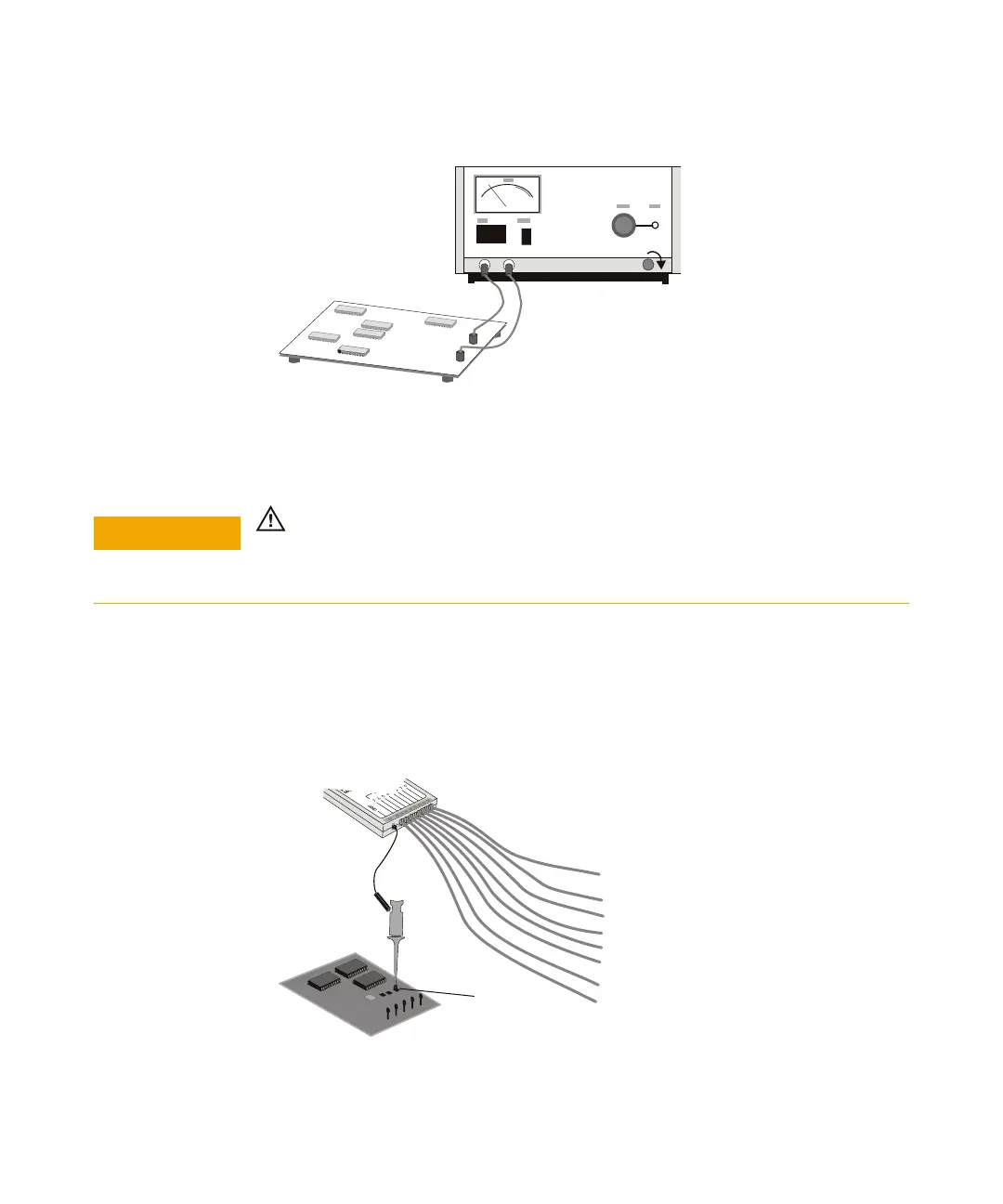

2 Connect the digital probe cable to the DIGITAL Dn - D0 connector on the
mixed-signal oscilloscope. The digital probe cable is keyed so you can connect
it only one way. You do not need to power-off the oscilloscope.
3 Connect the ground lead on each set of channels (each pod), using a probe
grabber. The ground lead improves signal fidelity to the oscilloscope, ensuring
accurate measurements.
Off
CAUTION
Probe cable for digital channels
Use only the Keysight logic probe and accessory kit supplied with the mixed-signal
oscilloscope (see “Probes and Accessories" on page 378).
Channel
Pod Ground
Circuit
Ground
