504 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
32 SENT Triggering and Serial Decode
SENT Serial Decode
To set up the oscilloscope to capture SENT signals, see “Setup for SENT
Signals" on page 497.
To set up SENT serial decode:

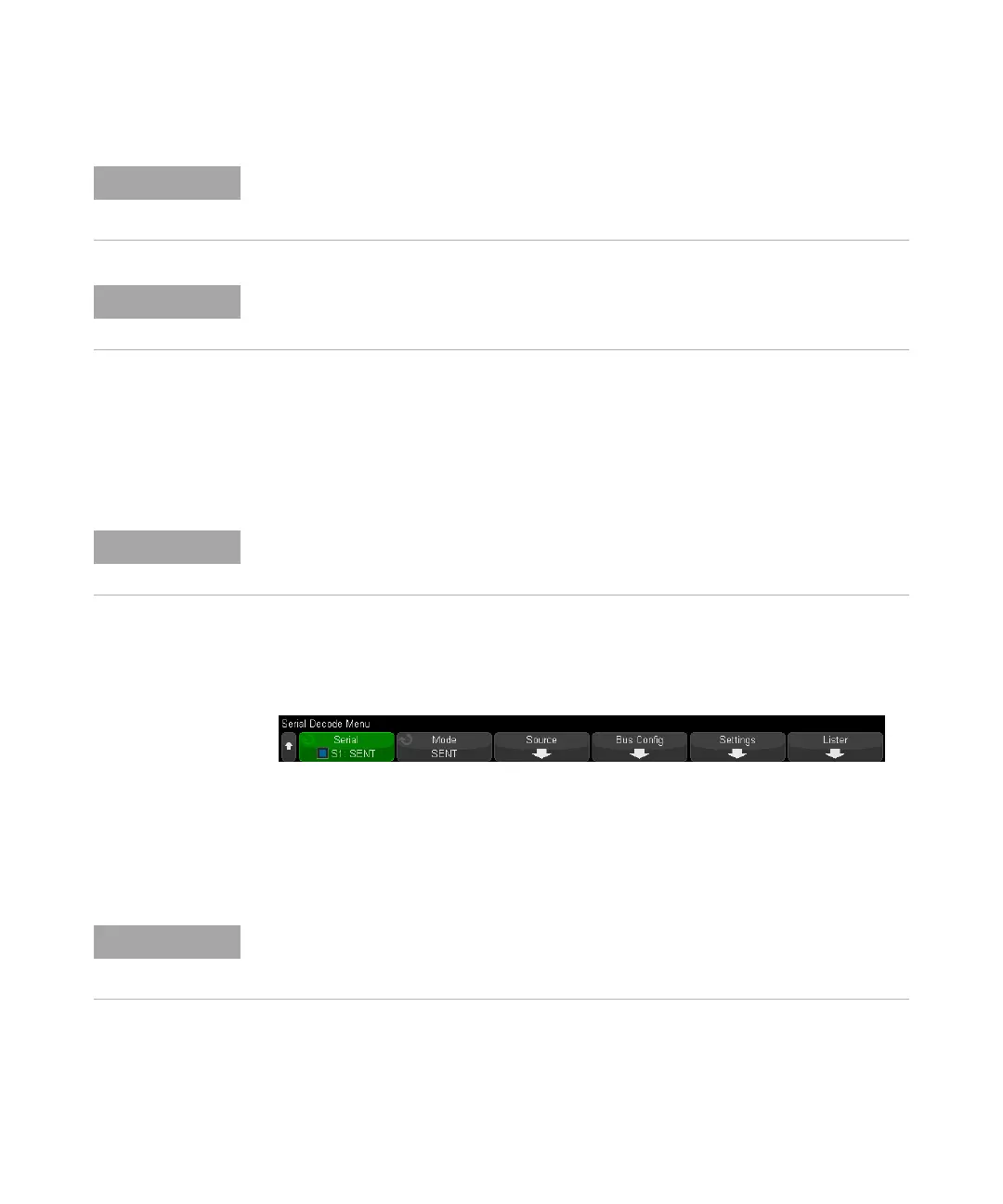

1 Press [Serial] to display the Serial Decode Menu.
2 If the decode line does not appear on the display, press the [Serial] key to turn it
on.
3 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and decode
data.
You can use the horizontal Zoom window for easier navigation of the acquired data.
If the setup does not produce a stable trigger, the SENT signals may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode softkey
to set the trigger mode from Auto to Normal.
To display SENT serial decode, see “SENT Serial Decode" on page 504.
For SENT triggering setup see “SENT Triggering" on page 502.
If the setup does not produce a stable trigger, the SENT signals may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode softkey
to set the trigger mode from Auto to Normal.
