272 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
15 Measurements
Measurement Window
You can choose whether measurements are made in the Main window portion of
the display, the Zoom window portion of the display (when the zoomed time base
is displayed), or gated by the X1 and X2 cursors.
1 Press the [Meas] key.

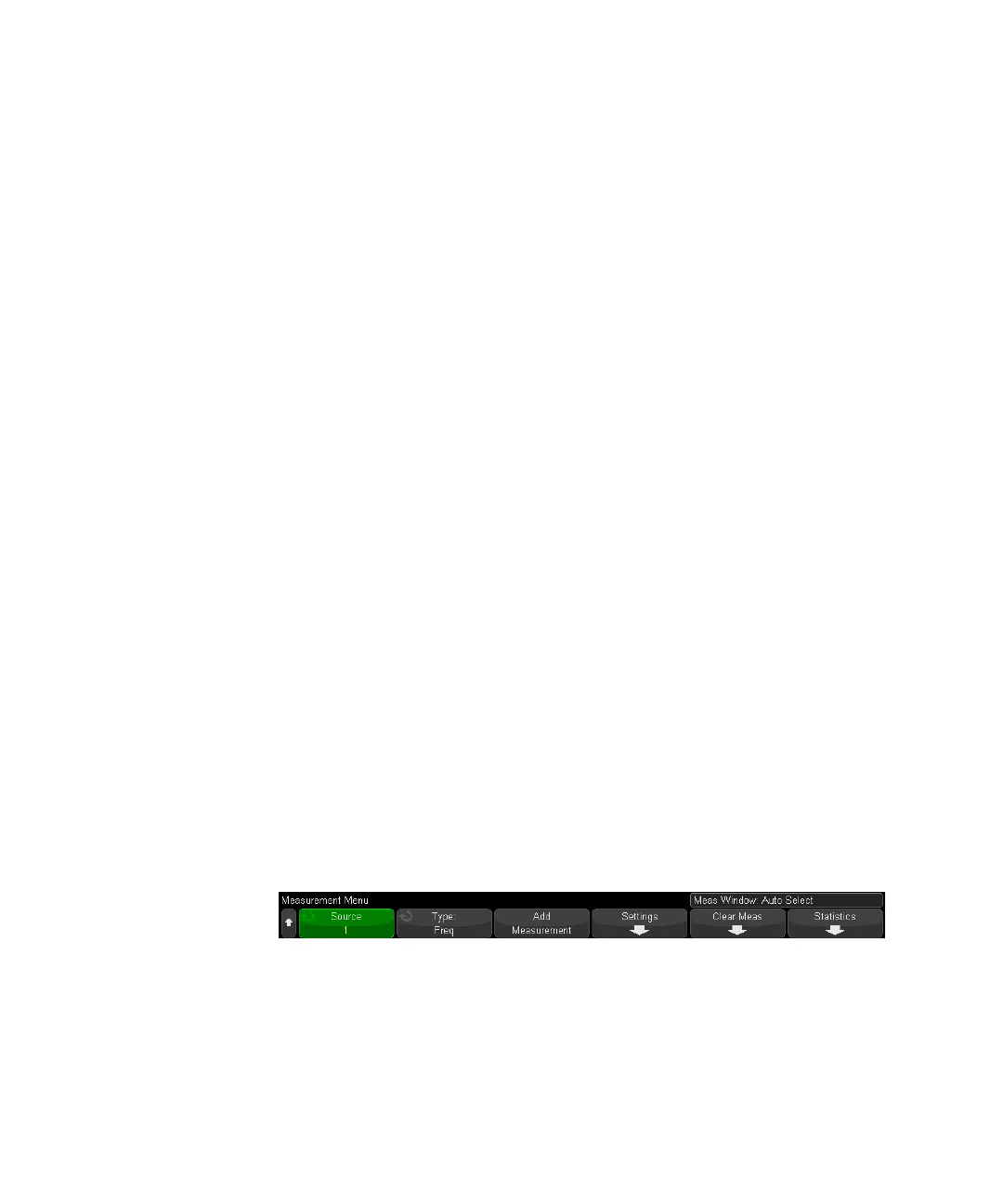

2 In the Measurement Menu, press the Meas Window softkey; then, turn the Entry
knob to select from:
• Auto Select — When the zoomed time base is displayed, the measurement is
attempted in the lower, Zoom window; if it cannot be made there, or if the
zoomed time base is not displayed, the Main window is used.
• Main — The measurement window is the Main window.
• Zoom — The measurement window is the lower, Zoom window.
• Gated by Cursors — The measurement window is between the X1 and X2
cursors. When the zoomed time base is displayed, the X1 and X2 cursors in
the Zoom window portion of the display are used.
Measurement Statistics
To display measurement statistics:
1 Press the [Meas] key to enter the Measurement Menu. By default frequency and
peak-to-peak voltage are measured on channel 1.
2 Select the measurements you desire for the channels you are using (see
“Measurements Summary" on page 246).
3 From the Measurement Menu, press the Statistics softkey to enter the Statistics
Menu.
4 Press the Display On softkey to enable the measurement statistics display.
