434 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
27 FlexRay Triggering and Serial Decode

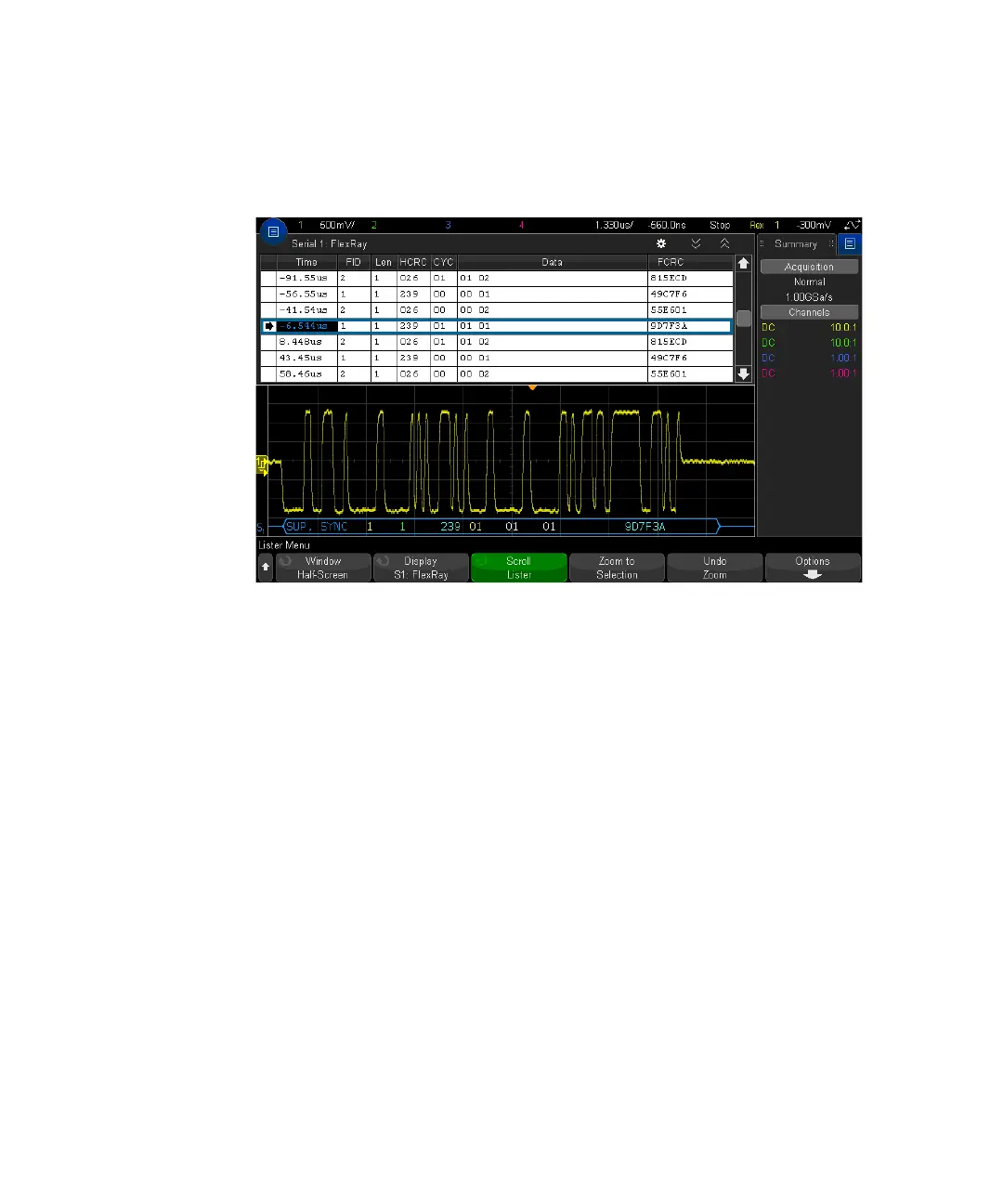

Interpreting FlexRay Lister Data
In addition to the standard Time column, the FlexRay Lister contains these
columns:
• FID — frame ID.
• Len — payload length.
• HCRC — header CRC.
• CYC — cycle number.
•Data.
• FCRC — frame CRC.
• Frames with errors are highlighted in red.
Searching for FlexRay Data in the Lister
The oscilloscope's search capability lets you search for (and mark) certain types of
FlexRay data in the Lister. You can use the [Navigate] key and controls to navigate
through the marked rows.
1 With FlexRay selected as the serial decode mode, press [Search].
