46 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
1 Getting Started
• “Enter Names Using Alpha-Numeric Keypad Dialogs" on page 52
• “Change Waveform Offsets By Dragging Ground Reference Icons" on page 53
• “Access Controls and Menus Via the Menu Icon" on page 54
• “Turn Channels On/Off and Open Scale/Offset Dialogs" on page 55
• “Access the Horizontal Menu and Open the Scale/Delay Dialog" on page 56
• “Access the Trigger Menu, Change the Trigger Mode, and Open the Trigger
Level Dialog" on page 57
• “Use a USB Mouse and/or Keyboard for Touchscreen Controls" on page 58
Draw Rectangles for Waveform Zoom or Zone Trigger Set Up

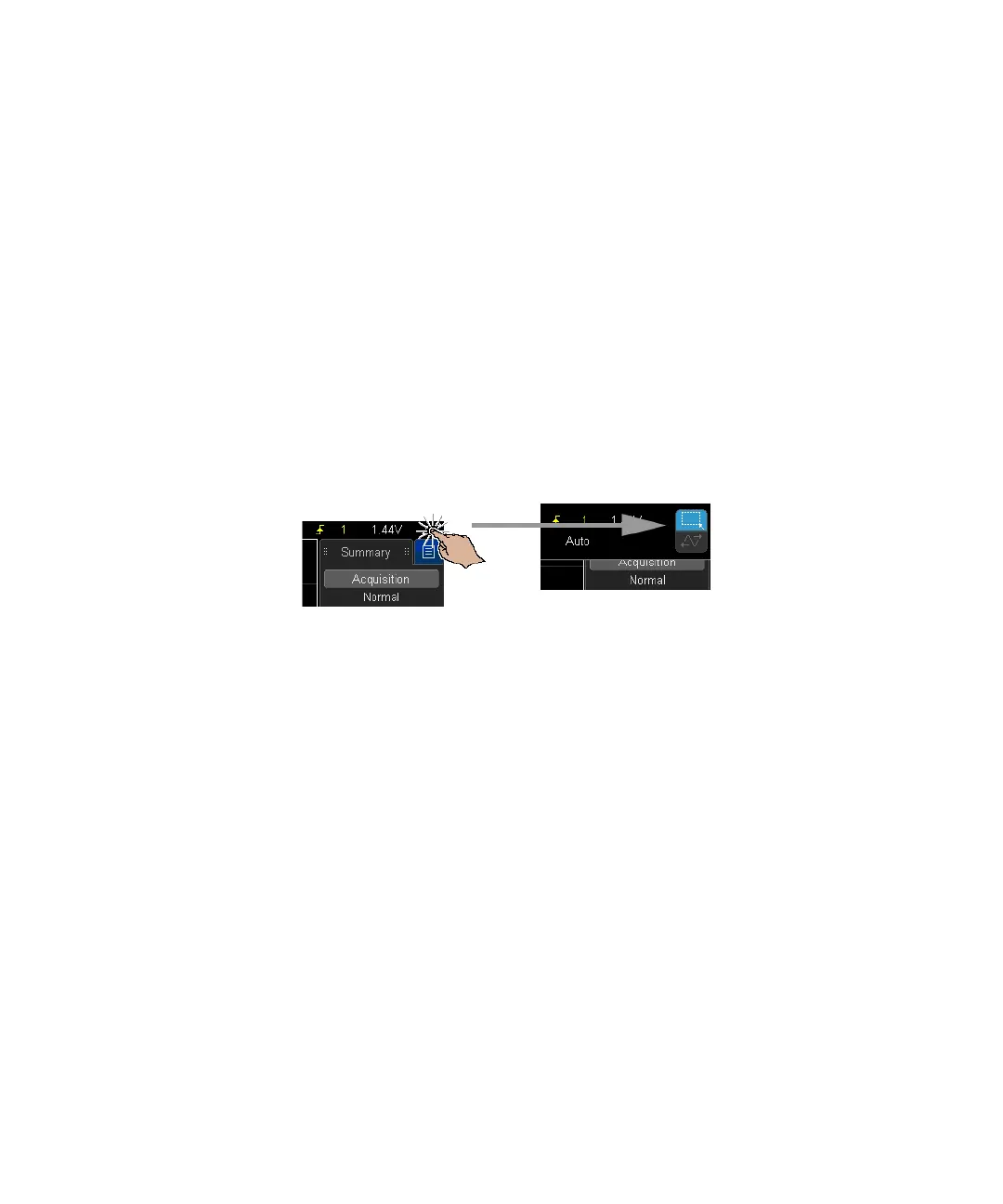

1 Touch the upper-right corner to select the rectangle draw mode.
2 Drag your finger across the screen to draw a rectangle.
3 Take your finger off the screen.
4 Touch the desired option from the popup menu.
