166 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
10 Labels
To add an annotation
You can add up to four annotations to the oscilloscope's display. Annotations are
useful for documentation purposes, to add notes before capturing screens.
To add an annotation:
1 Press [Display] > Label.
2 In the label menu, press Annotation.
3 In the Annotation Menu, press the Display softkey and turn the Entry knob to
select the desired annotation.
4 Then, press the Display softkey again to enable/disable the annotation display.
When enabled, you can drag the annotation anywhere in the graticule using the
touchscreen, a USB mouse, or the X1 and Y1 softkeys.
5 Press Edit.

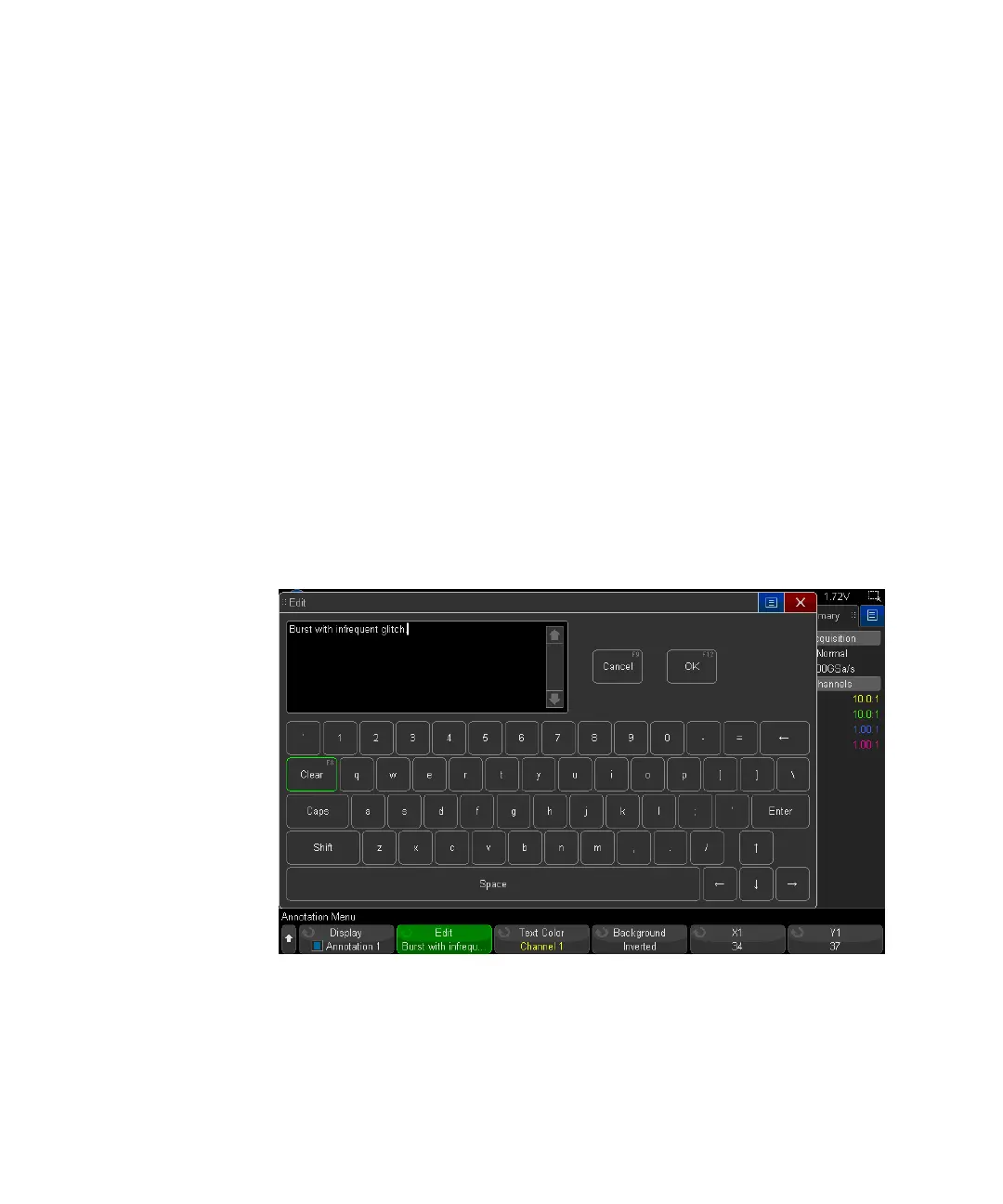

6 In the Edit keypad dialog, you can enter text using:
• The touch screen (when the front panel [Touch] key is lit).
