• For LIN 1.3 a wakeup signal is indicated by WAKE in blue. If the wakeup signal
is not followed by a valid wakeup delimiter a wakeup error is detected and
displayed as WUP in red.
Interpreting LIN Lister Data

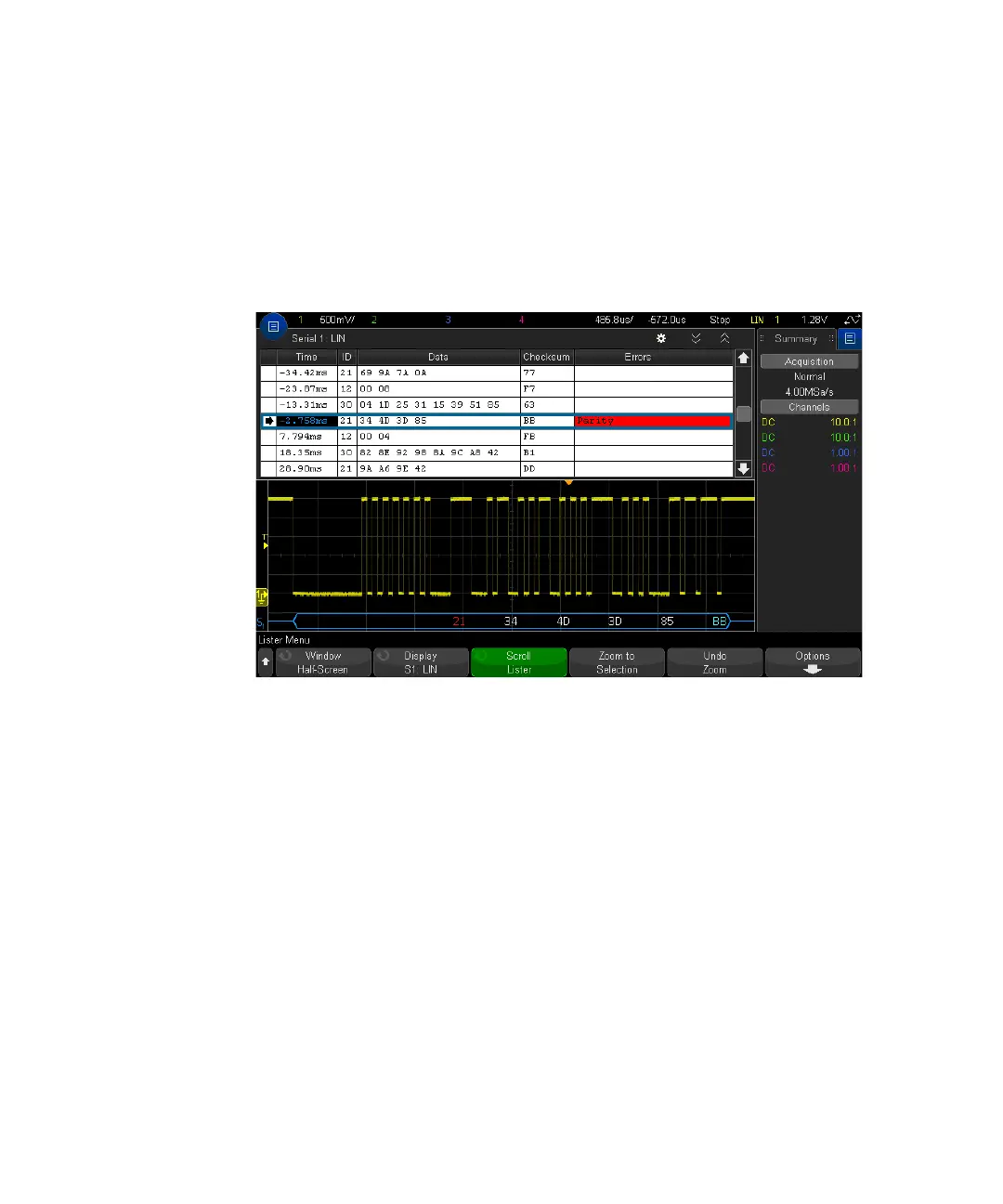

In addition to the standard Time column, the LIN Lister contains these columns:
• ID — frame ID. Can be displayed as hex digits or symbolic information (see
“Loading and Displaying LIN Symbolic Data" on page 409).
• Data — data bytes. Can be displayed as hex digits or symbolic information.
• Checksum.
• Errors — highlighted in red.
Aliased data is highlighted in pink. When this happens, decrease the horizontal
time/div setting and run again.
Searching for LIN Data in the Lister
The oscilloscope's search capability lets you search for (and mark) certain types of
LIN data in the Lister. You can use the [Navigate] key and controls to navigate
through the marked rows.
