SENT Triggering and Serial Decode 32
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 505
See Also • “Interpreting SENT Decode" on page 505
• “Interpreting SENT Lister Data" on page 507
• “Searching for SENT Data in the Lister" on page 508

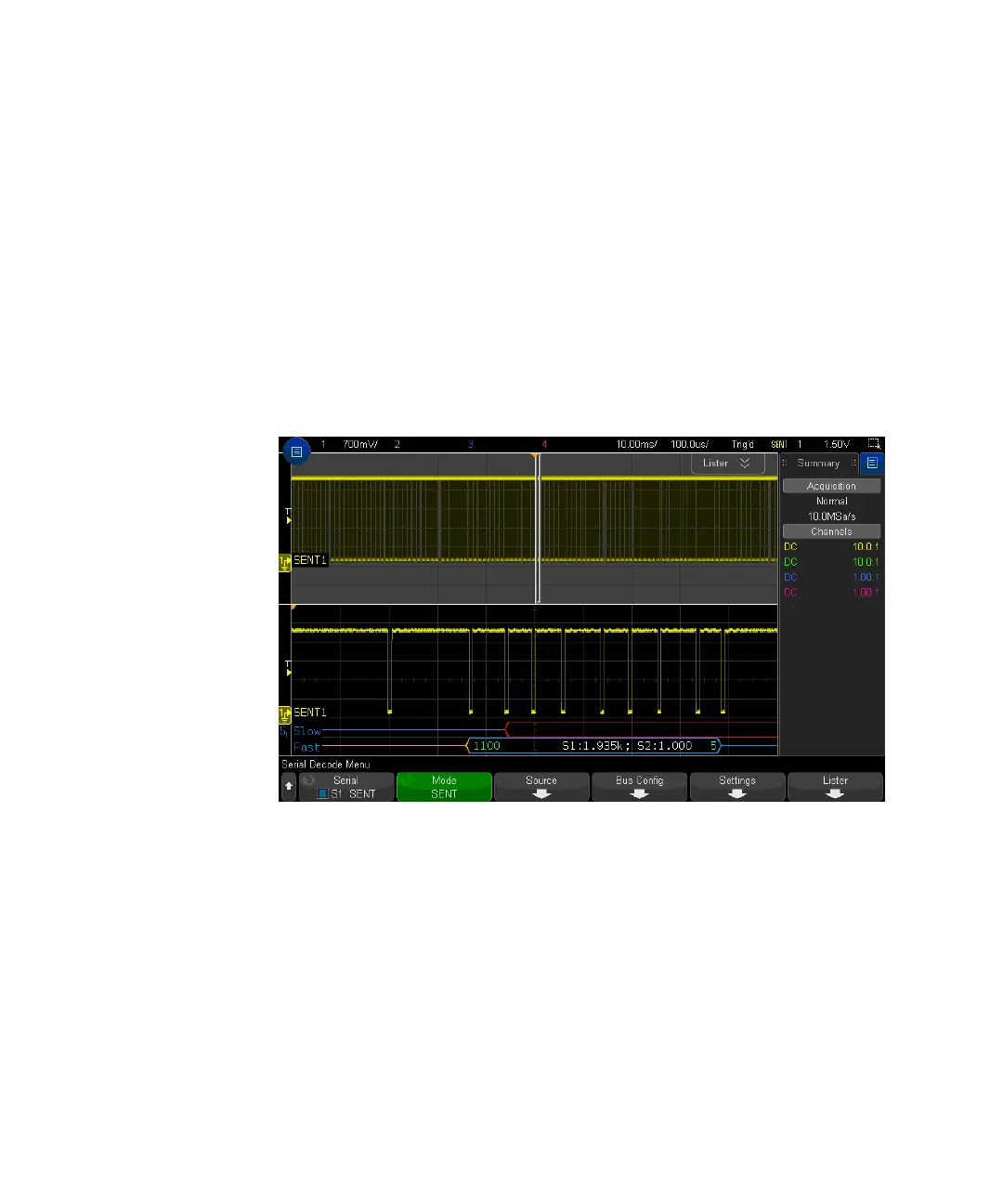

Interpreting SENT Decode
The fields of the Fast and Slow Channels are displayed as follows. Note that the
Slow Channel has three different variants. The colors noted below indicate the
color of the text:
• Fast Channel:
• Status & Communication (S&C) Nibble (green) (4 bits):
• 2 Application bits and 2 Serial Message bits will be displayed, in all
formats.
• Data Nibbles (white) (4 bits, but may be combined into Signals, based on
format):
• "Fast Nibbles (All)" format — each nibble displayed as hex or decimal
number.
• "Fast Signals", "Fast + Short Serial", or "Fast + Enhanced Serial" formats — If
any fast signals are enabled, signals are displayed like:
