Web Interface 23
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 369
3 Click the Recall link.

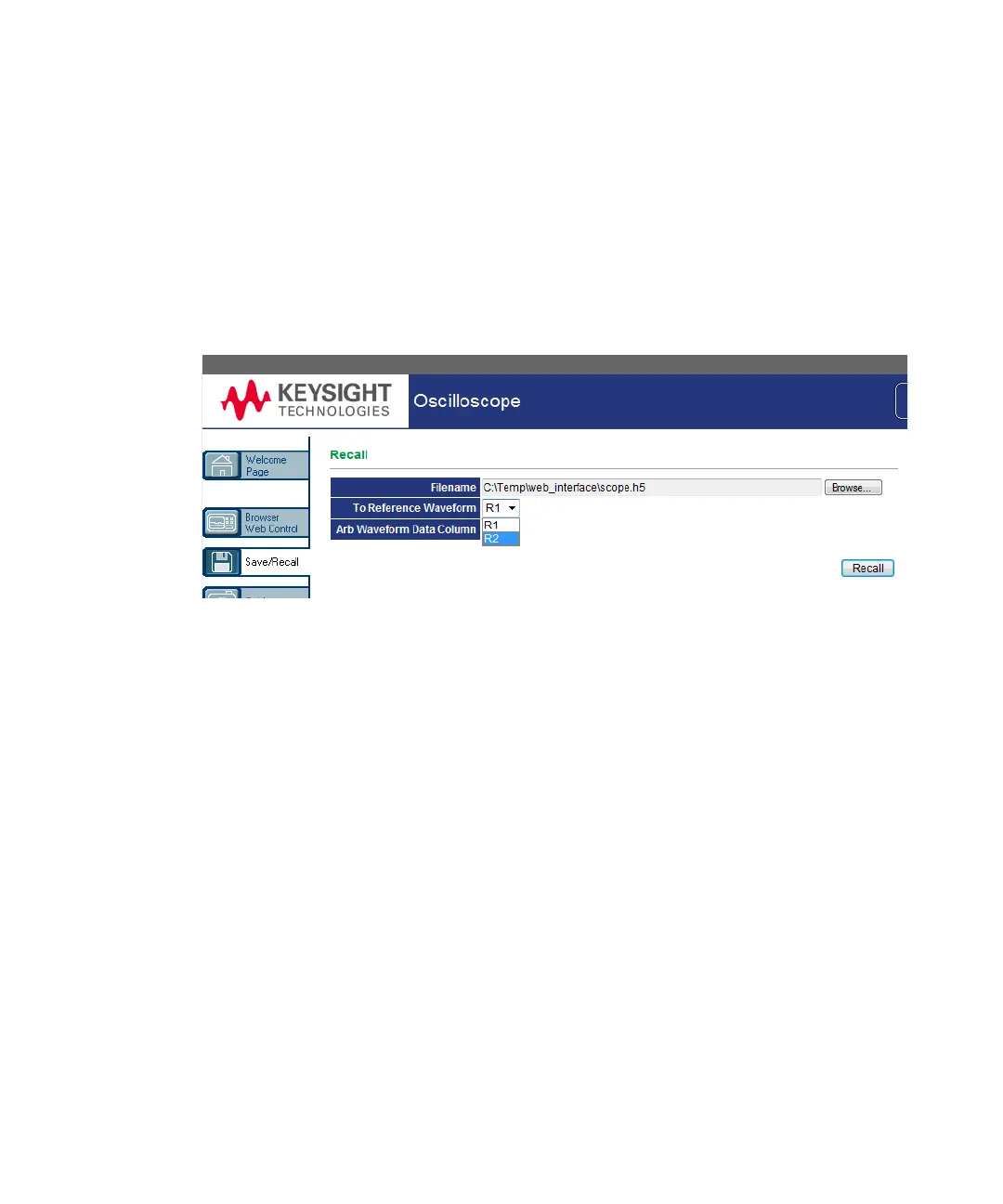

4 On the Recall page:
a Click Browse....
b In the "Choose file" dialog, select the file you want to recall; then, click Open.
c When recalling reference waveform data files, select the To Reference
Waveform location.
d Click Recall.
Get Image
To save (or print) the oscilloscope's display from the web interface:
1 Access the oscilloscope's web interface (see “Accessing the Web Interface" on
page 360).
2 When the oscilloscope's web interface is displayed, select the Get Image tab
from the left side of the Welcome screen. After a delay of several seconds, the
oscilloscope's screen image will be displayed.
3 Right-click on the image and select Save Picture As... (or Print Picture...).
4 Select a storage location for the image file and click Save.
