Keysight DSOX3034T User Manual

Waveform Generator 19
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 305
To edit arbitrary waveforms
1 When Arbitrary is selected as the generated waveform type (see “To select
generated waveform types and settings" on page 301), press the Edit Waveform
softkey to open the Edit Waveform Menu.

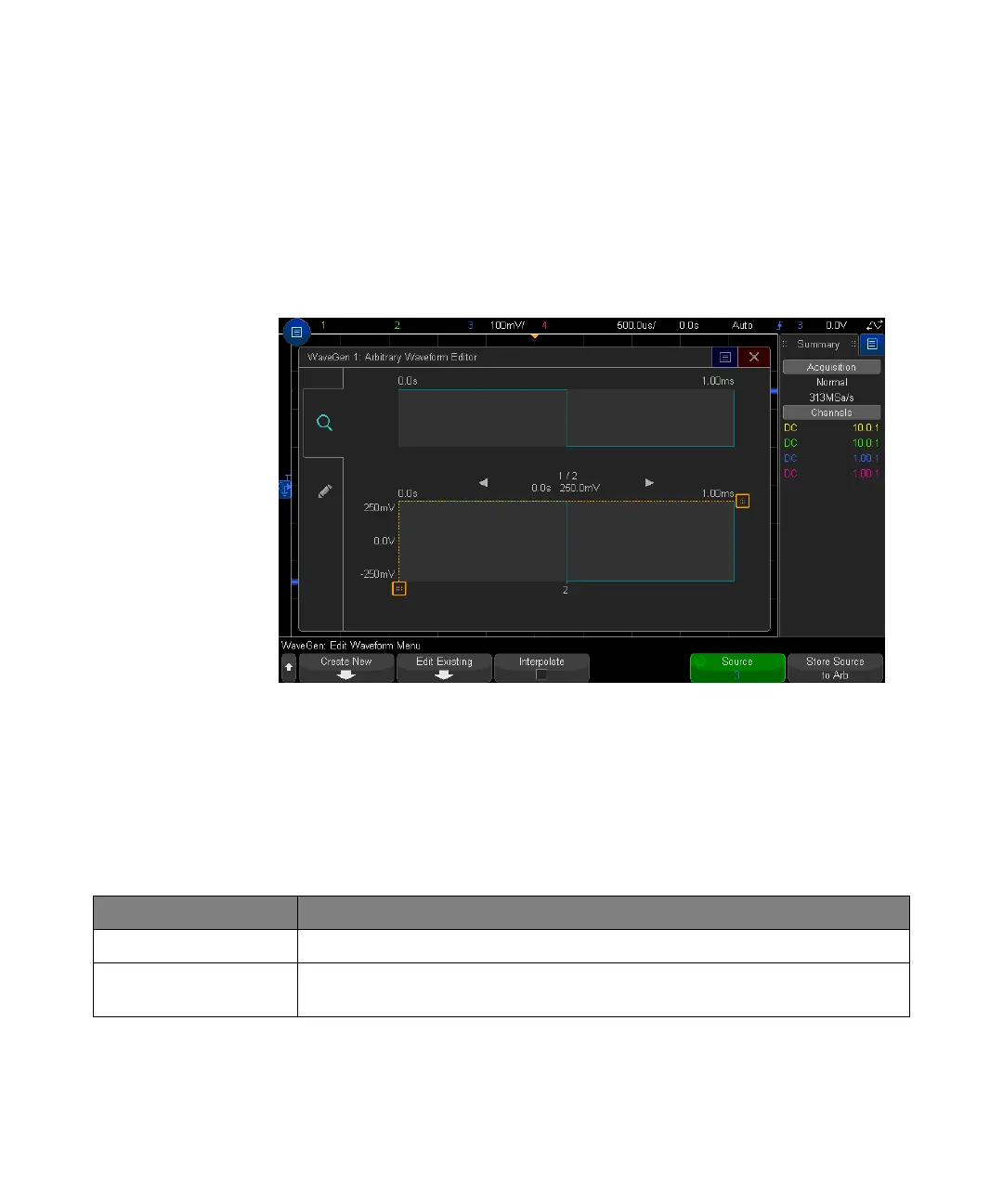

When you open the Edit Waveform Menu, you see the existing arbitrary
waveform definition. The voltage and time period you see in the diagram are
the bounding parameters — they come from the frequency and amplitude
settings in the main Waveform Generator Menu.
2 Use the softkeys in the Edit Waveform Menu to define the shape of the arbitrary
waveform:
Softkey Description
Create New Opens the New Waveform Menu. See “Creating New Arbitrary Waveforms" on page 306.
Edit Existing Opens the Edit Waveform Points Menu. See “Editing Existing Arbitrary Waveforms" on
page 307.
