Measurements 15
Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide 253

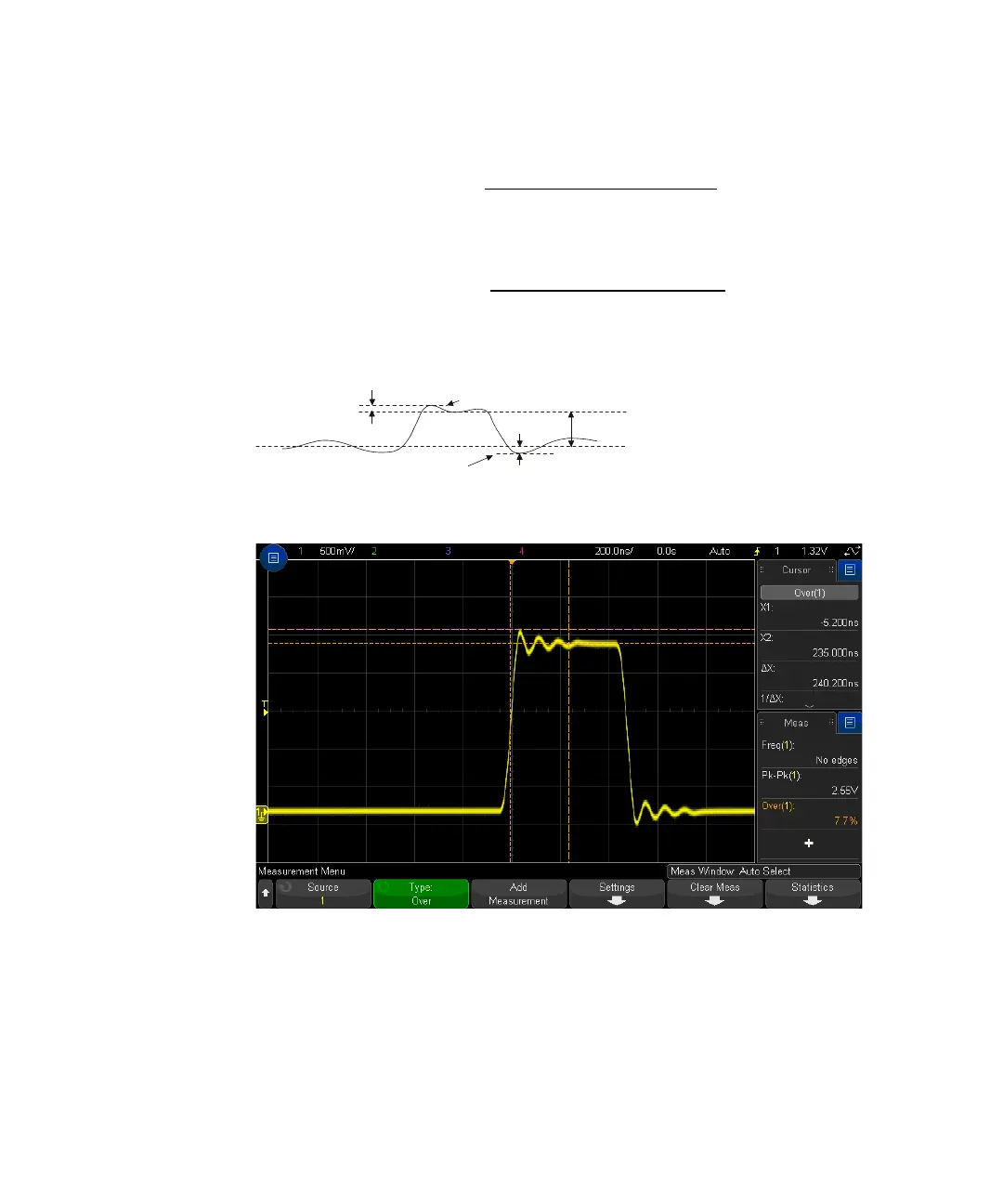

Figure 48 Automatic Overshoot measurement
Rising edge overshοot =
local Maximum − D Top
Amplitude
× 100
Falling edge overshοot =
Base − D local Minimum
Amplitude
× 100
Overshoot
local Maximum
local Minimum
Base
Top
Overshoot
