412 Keysight InfiniiVision 3000T X-Series Oscilloscopes User's Guide
25 CAN/LIN Triggering and Serial Decode

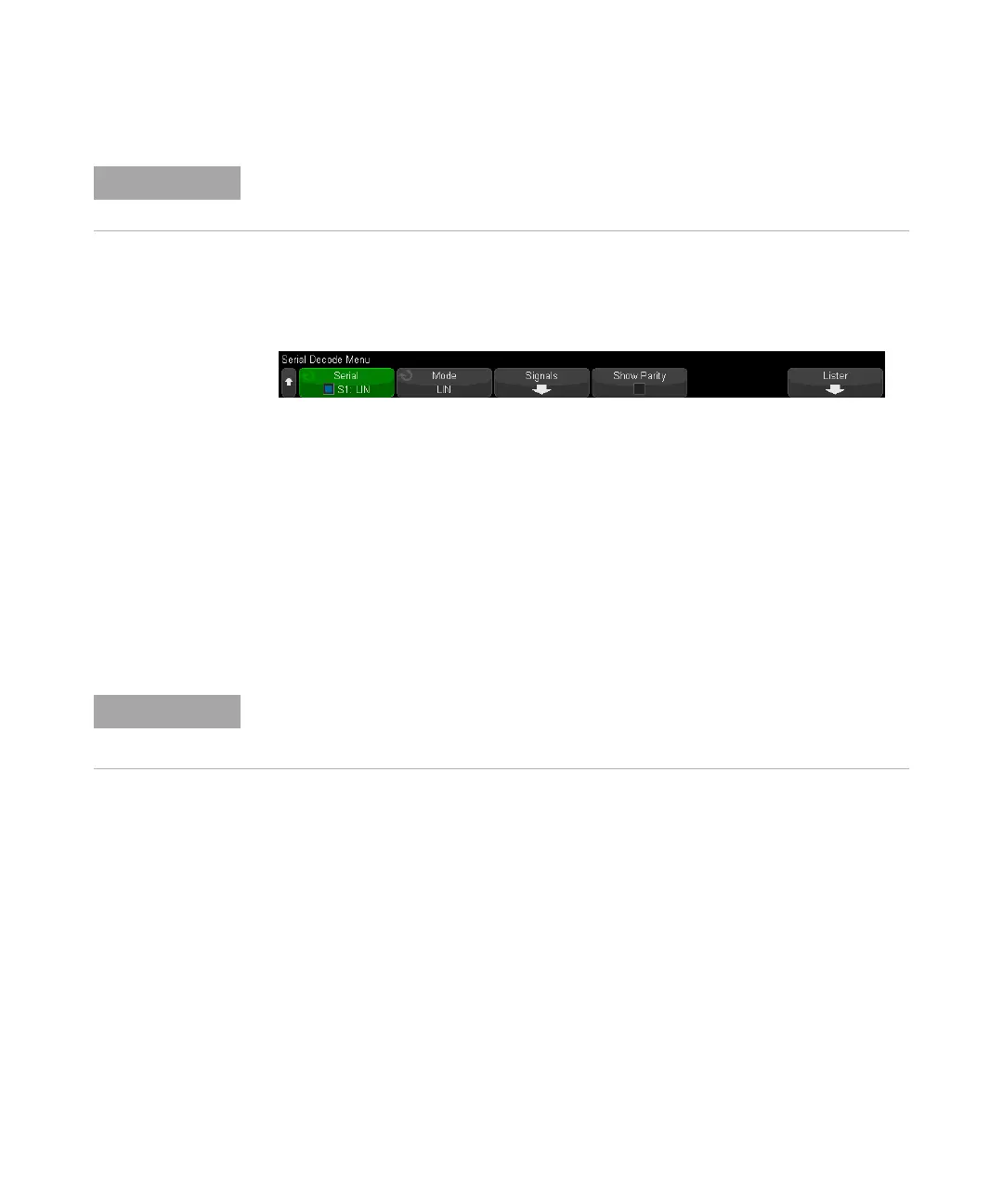

To set up LIN serial decode:
1 Press [Serial] to display the Serial Decode Menu.
2 Choose whether to include the parity bits in the identifier field.
a If you want to mask the upper two parity bits, ensure that the box under the
Show Parity softkey is not selected.
b If you want to include the parity bits in the identifier field, ensure that the box
under the Show Parity softkey is selected.
3 If the decode line does not appear on the display, press the [Serial] key to turn it
on.
4 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and decode
data.
You can use the horizontal Zoom window for easier navigation of the decoded data.
See Also • “Interpreting LIN Decode" on page 413
• “Interpreting LIN Lister Data" on page 414
• “Searching for LIN Data in the Lister" on page 414
For LIN triggering setup see “LIN Triggering" on page 409.
If the setup does not produce a stable trigger, the LIN signal may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode softkey
to set the trigger mode from Auto to Normal.
