32
1 x End Slide Panel 1-1/4 x 37 x 86-29/32”
2 x Narrow Panel 1-1/4 x 21-1/2 x 86-21/32”
Wood Parts
9214
9248
Hardware
8 x 1/4 x 2-1/2” Wafer Lag
WL5
WL5
WL5
9214
9248

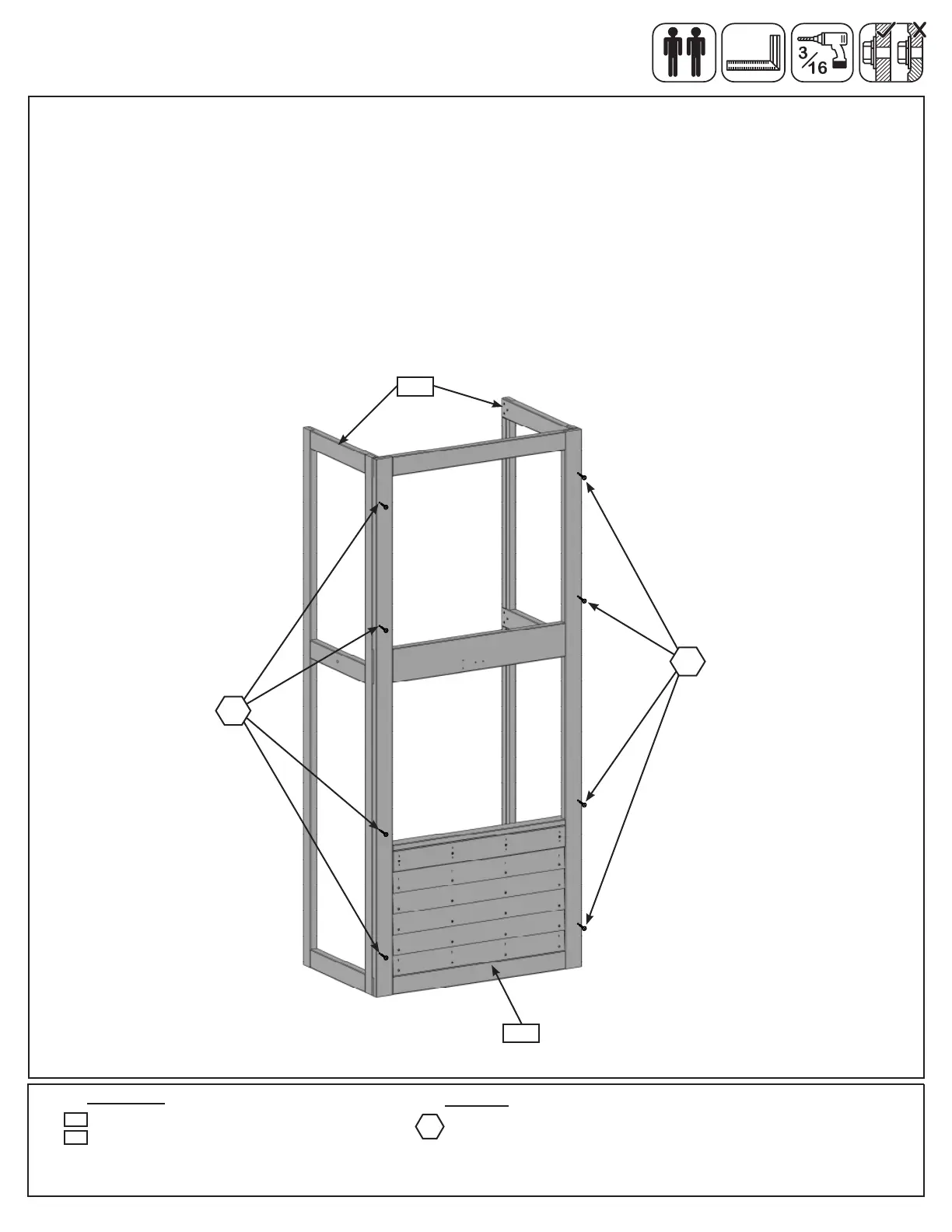

Fig. 6.1
A: With a helper, place 1 (9248) Narrow Panel up against the inside edge of (9214) End Slide Panel so that the
edges are ush. The tops and bottoms of the panels should be ush and panels square. Predrill with a 3/16” drill
bit, then fasten (9214) End Slide Panel to (9248) Narrow Panel with 4 (WL5) 1/4 x 2-1/2” Wafer Lags. (g. 6.1)
B: Repeat Step A to install a second (9248) Narrow Panel on the opposite side. (g. 6.1)
Step 6: Slide Wall Assembly
