Step 35: Attach Café Canopy to Fort

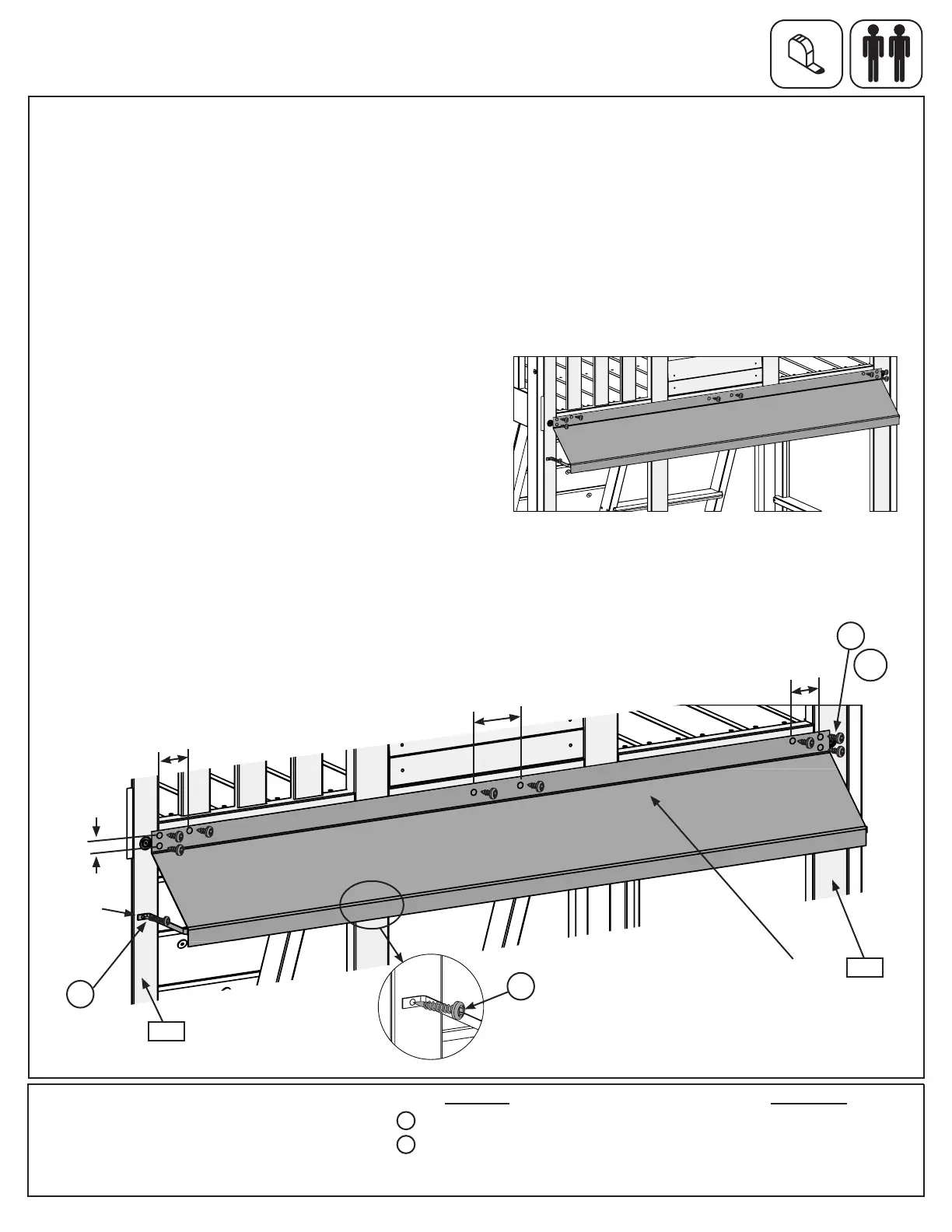

A: With a helper hold the Canopy against the Fort, centred on Front Wall. Make sure the Cafe Canopy is smooth
and tight then attach to the panel with 1 (S5) #8 x 1/2” Pan Screw (with #8 at washer). Measure 2” (5cm) down
from the rst screw then attach a second screw and washer. Follow measurements as shown for remaining screws
and washers, measurements must be exact. (g. 35.1 and 35.2)
B: Hold the Cafe Canopy Frame against the panel and attach with 3 (S6) #12 x 1” Pan Screw. (g. 35.2)
8 x #8 x 1/2” Pan Screw (FW3)
3 x #12 x 1” Pan Screw
S5
S6
Fig. 35.1
Other Parts
1 x Cafe Canopy
Cafe Canopy
S6
S6
Cafe
Canopy
Frame
S5
x 8
Start on
this side
5”
(127mm)
2”
(5cm)
1-1/4”
(32mm)
1-1/4”
(32mm)
9376
9375
Fig. 35.2
FW3
