KidKraft Cedar Summit DEVONSHIRE ELITE - Attach TNR 3 Slide to Fort

96
A: On the fourth attached Elbow Assembly remove the pan bolt and nut which is facing the fort (installed in Step 40).
(g. 50.1) The bolt will no longer be needed, but keep the lock nut.
B: Loosely attach TNR3 Tube Support (at the slightly bent end) to the slide seam using 1 (PB6) 1/4 x 1” Pan Bolt (with
at washer and the previously removed lock nut). (g. 50.2)
C: Rotate TNR3 Tube Support and attach to (9214) End Slide Panel using 1 (S6) #12 x 1” Pan Screw as shown in (g.
50.2).
D: Fully tighten screw and bolt.
Hardware
1 x #12 x 1” Pan Screw
1 x 1/4 x 1” Pan Bolt
(FW1 & LN1 - previously removed)
PB6
Other Parts
1 x TNR3 Tube Support
S6

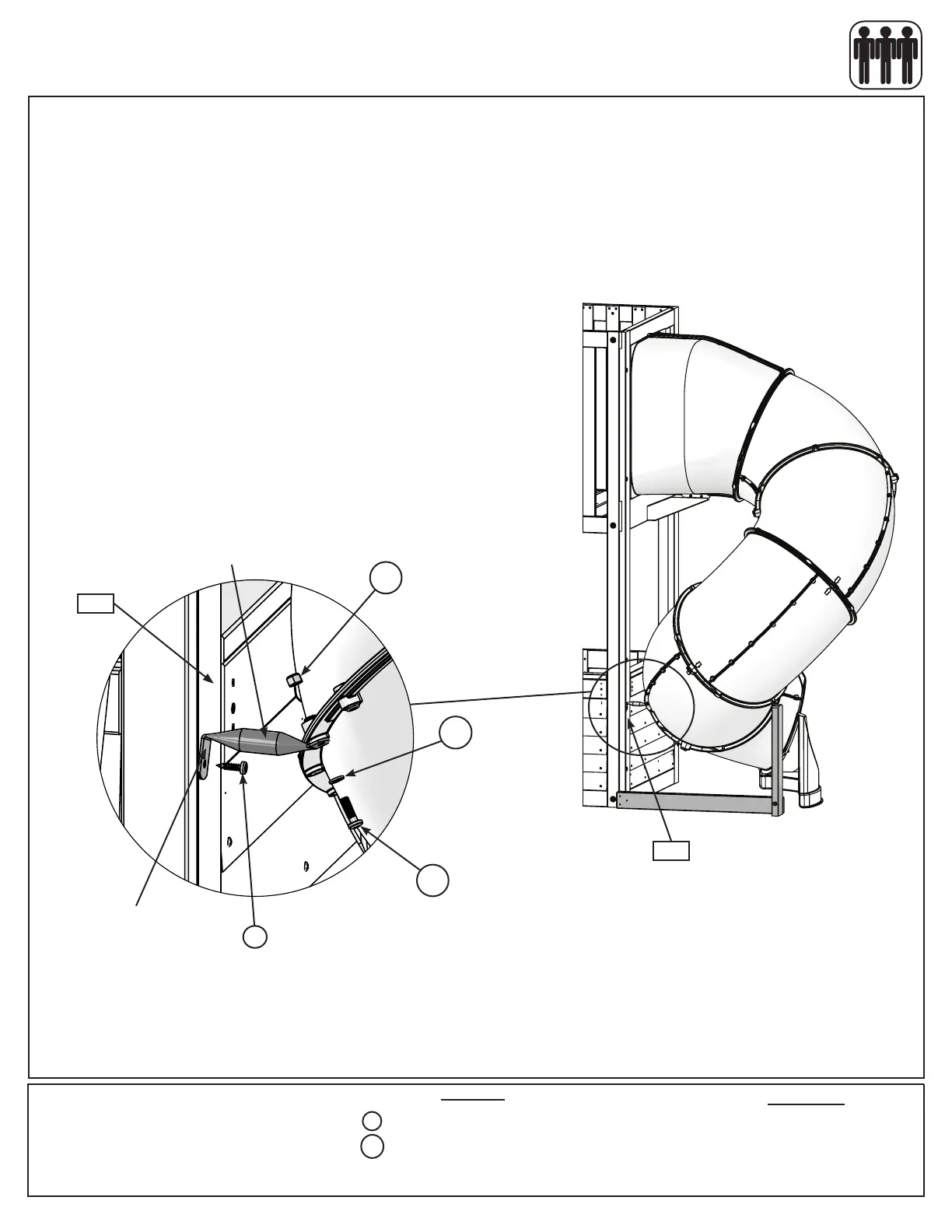

Step 50: Attach TNR 3 Slide to Fort
Remove PB1 (1/4 x 3/4”
Pan Bolt) rst then install
PB6 (1/4 x 1” Pan Bolt
with at washer)
S6
A
Fig. 50.2
Fig. 50.1
TNR 3 Tube
Support
PB6
LN1
Note: Flat
end down
9214
9214
FW1
