49
14 x #8 x 2” Wood Screw
Hardware
S11
S11
S11
x 3 per
side
Other Parts
2 x Gable Roof Panel
Gable Roof Panel
Gable Roof Panel
2852

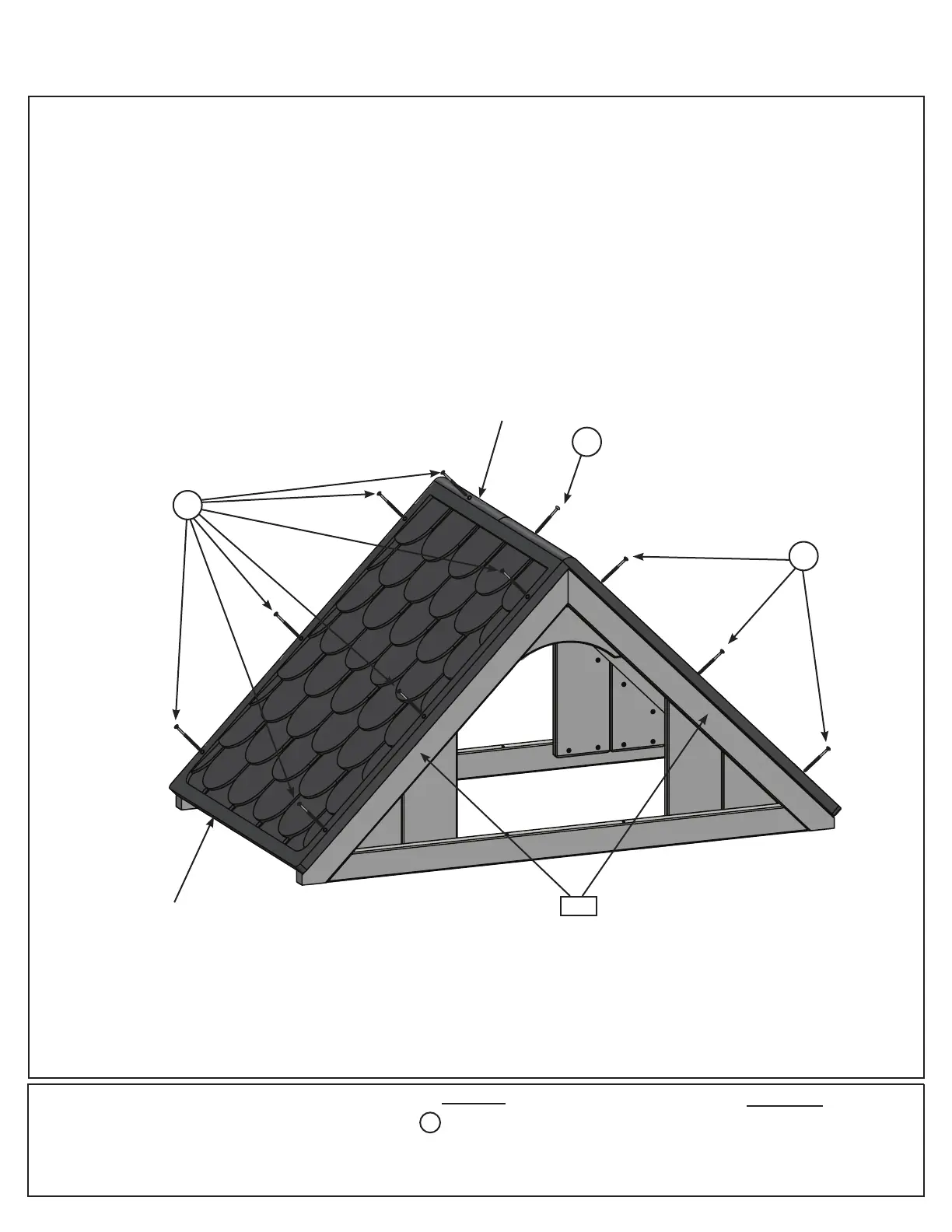

A: Line up the connector tabs on the 2 Roof Panels and snap the panels together. (g 16.1)
B: Place the Roof Panel assembly over the Gable Assembly and attach to the (2852) Roof Ends using 12 (S11)
#8 x 2” Wood Screws. (g 16.1)
C: Install 2 (S11) #8 x 2” Wood Screws along the roof peak as shown in g. 16.1, attaching the roof panels
together. (g 16.1)
Step 16: Tower Roof Assembly
S11
Fig. 16.1
To Next Page
