KidKraft Cedar Summit DEVONSHIRE ELITE - Attach SL Gusset

93
1 x SL Gusset 1-1/4 x 3 x 12-1/2”
9453
Hardware
Wood Parts
2 x #12 x 1” Pan Screw
2 x #8 x 2-1/2” Wood Screw
S6
S3
Step 47: Attach SL Gusset
x 2
x 2
S6
S3
Flange
Assembly
Cross
Frame
9453
9214

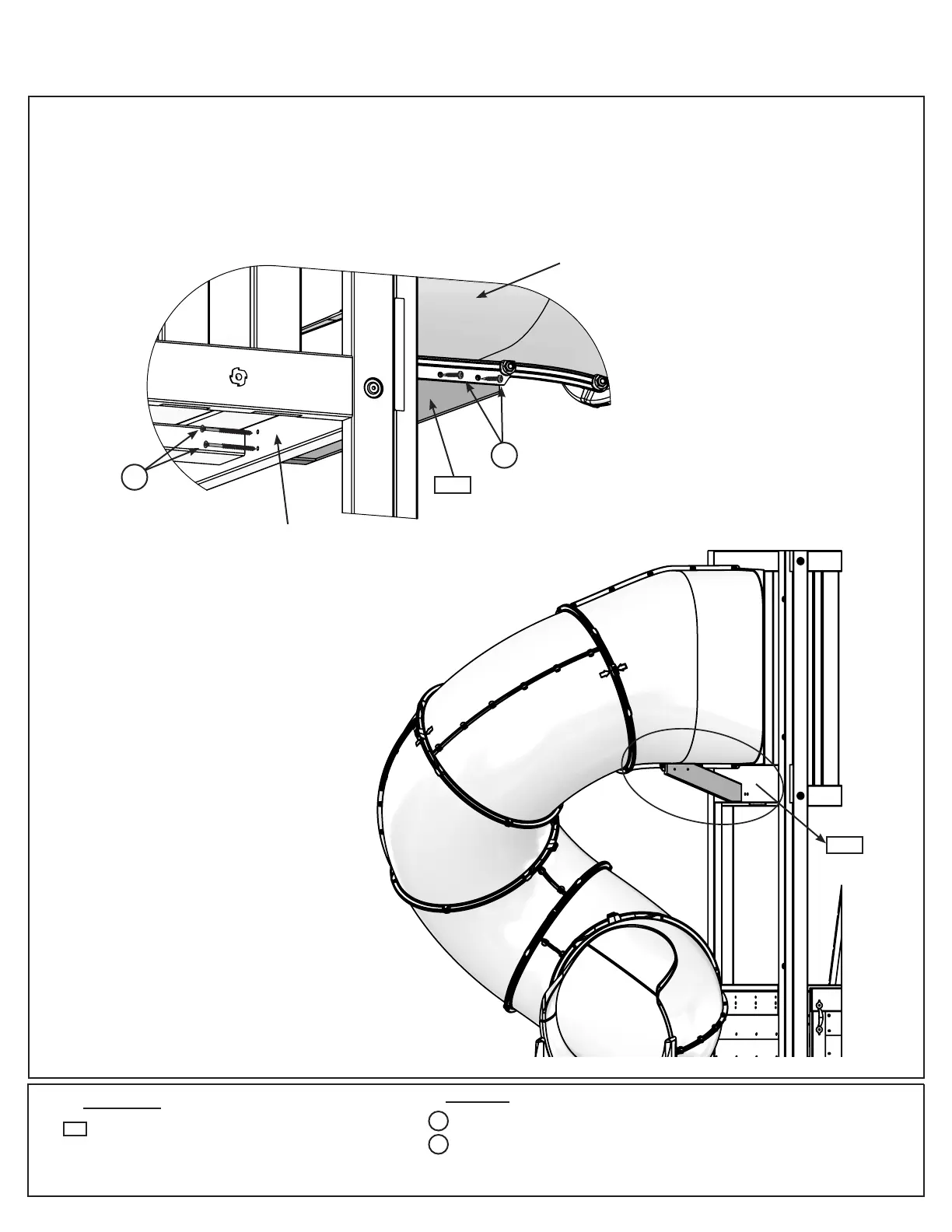

A: Place (9453) SL Gusset under the ange assembly, tight to (9214) End Slide Panel so that it lines up with the
pre-drilled holes. Attach to Flange Assembly with 2 (S6) #12 x 1” Pan Screws. (Fig 47.1 & 47.2)
B: From the underside of the assembly install 2 (S3) #8 x 2-1/2” Wood Screws to attach (9453) SL Gusset to
(9214) End Slide Panel. (Fig 47.1 & 47.2)
Fig. 47.1
Fig. 47.2
