KidKraft Cedar Summit DEVONSHIRE ELITE - Gable End Assembly

48
2X Gable Board A
2X Gable Board B
Gable Board C
20X #8 x 1-3/8" Wood Screw
Build 4 Gable Assemblies
25.40
25.40
25.40
80.37
2X Gable Board A
2X Gable Board B
Gable Board C
20X #8 x 1-3/8" Wood Screw
Build 4 Gable Assemblies
25.40
25.40
25.40
80.37
x 4 per board
Hardware
Wood Parts
Appox 3”
1”
40 x #8 x 1-3/8” Wood Screw
S20
S20
Fig. 15.3
Fig. 15.4
2842
2842
2843
2842
2843
2841
2841
2841
2841
4 x Gable Board A 5/8 x 4-1/4 x 6-5/8”
4 x Gable Board B 5/8 x 4-1/4 x 10-7/8”
2 x Gable Board C 5/8 x 4-1/4 x 12”
2841
2842
2843

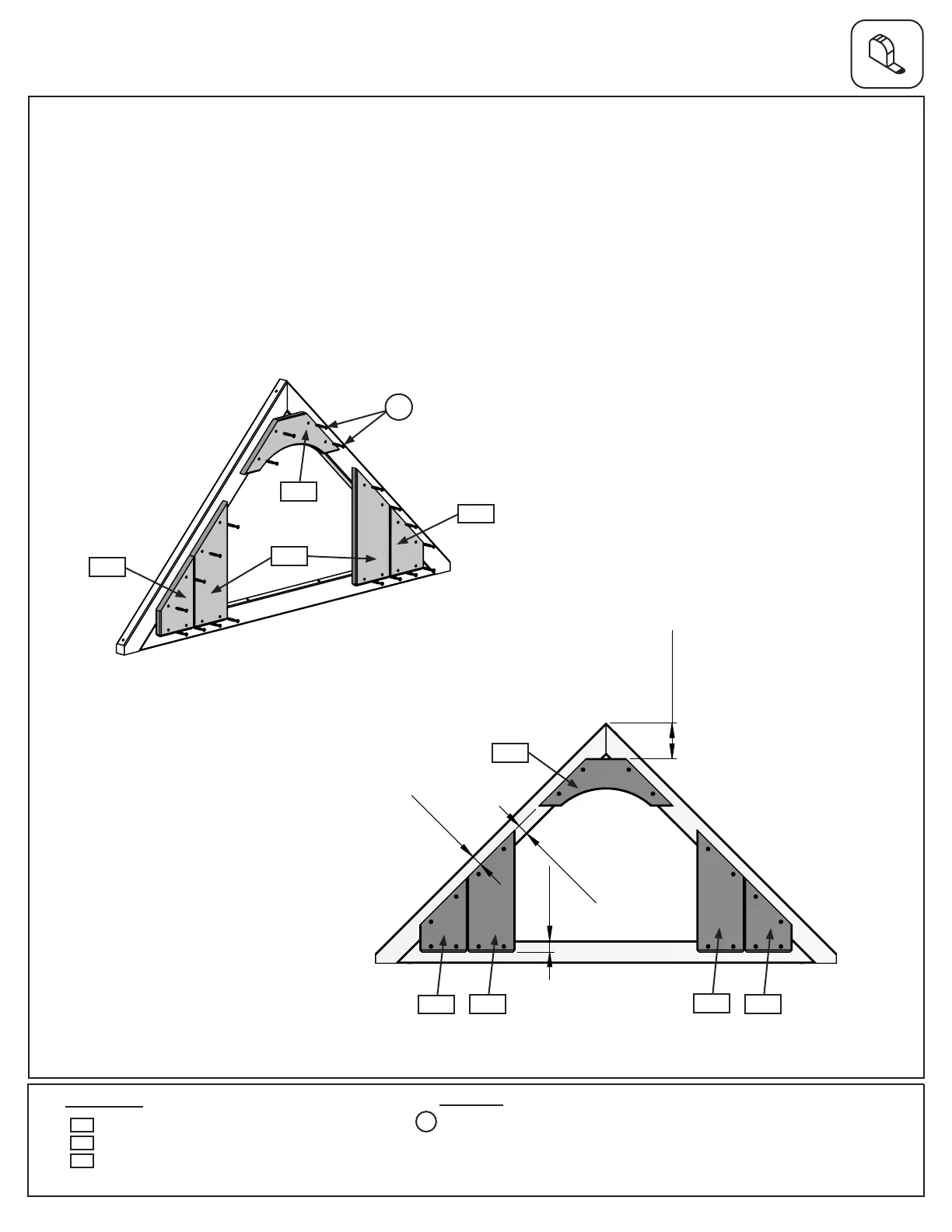

D: From the peak of the gable assembly measure approximately 3” (80.37mm) down and attach 1 (2843) Gable
Board C using 4 (S20) #8 x 1-3/8” Wood Screws as shown in (g. 15.3 and 15.4). Maintain a 1” (25.40mm) space
between the sides of Gable Board C and the edge of the Gable Assembly. (g. 15.3 and 15.4)
E: Place (2841 and 2842) Gable Boards A and B on each side of the Gable assembly as shown in (g. 15.3),
again making sure that there is a space of 1” (25.40mm) between the boards and the edge of the gable and attach
using 4 (S20) #8 x 1-3/8” Wood Screws per board. (g. 15.3 and 15.4)
F: Repeat steps D and E to complete the remaining 1 Gable Assembly.
Step 15: Gable End Assembly
Part 2
