KidKraft Cedar Summit DEVONSHIRE ELITE - Roof and Swing Components; Step 15: Gable End Assembly

47
Step 15: Gable End Assembly
Part 1
A
2X Roof End
Roof Support
3X #8 x 3" Wood Screw
Build 4 Gable End assemblies
Flush
Flush
S3
S3
S3
Hardware
S3
6 x #8 x 2-1/2” Wood Screw
Wood Parts

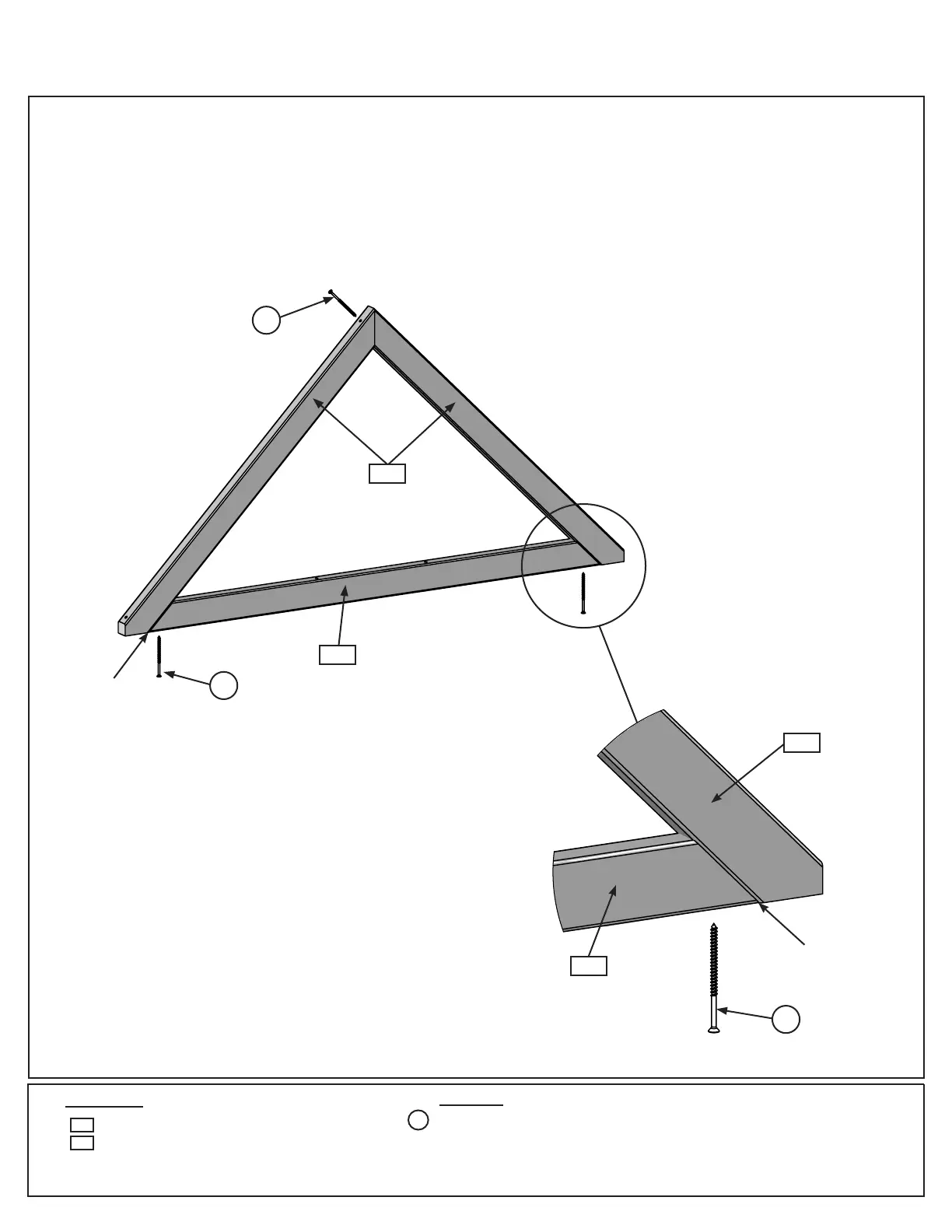

Fig. 15.1
Fig. 15.2
2852
2852
2853
2853
4 x Roof End 1 x 2 x 29-3/4”
2 x Roof Support 1 x 2 x 37-1/4”
2852
2853
A: Attach one (2852) Roof End to a second (2852) Roof End at peak using 1 (S3) #8 x 2-1/2” Wood Screw.
(g. 15.1)
B: Place 1 (2853) Roof Support between the Roof Ends so the bottom of the Roof Support is ush with the
bottoms of each Roof End. Attach using 2 (S3) #8 x 2-1/2” Wood Screws. (g. 15.1 and 15.2)
C: Repeat step to make 1 more assembly.
