Hardware
Fig. 18.1
Wood Parts
6 x #8 x 2” Wood Screw
9 x # 8 x 7/8” Truss Head Screw
S11
Other Parts
3 x Corner Bracket
S0
Fig. 18.3
View from underneath
9071
1 x Half Wall Top 15/16 x 2-1/4 x 33”
1 x SW Wall Top 15/16 x 2-1/4 x 33-1/2”
1 x Small Half Wall Top 15/16 x 2-1/4 x 19”
9053
9071
9354

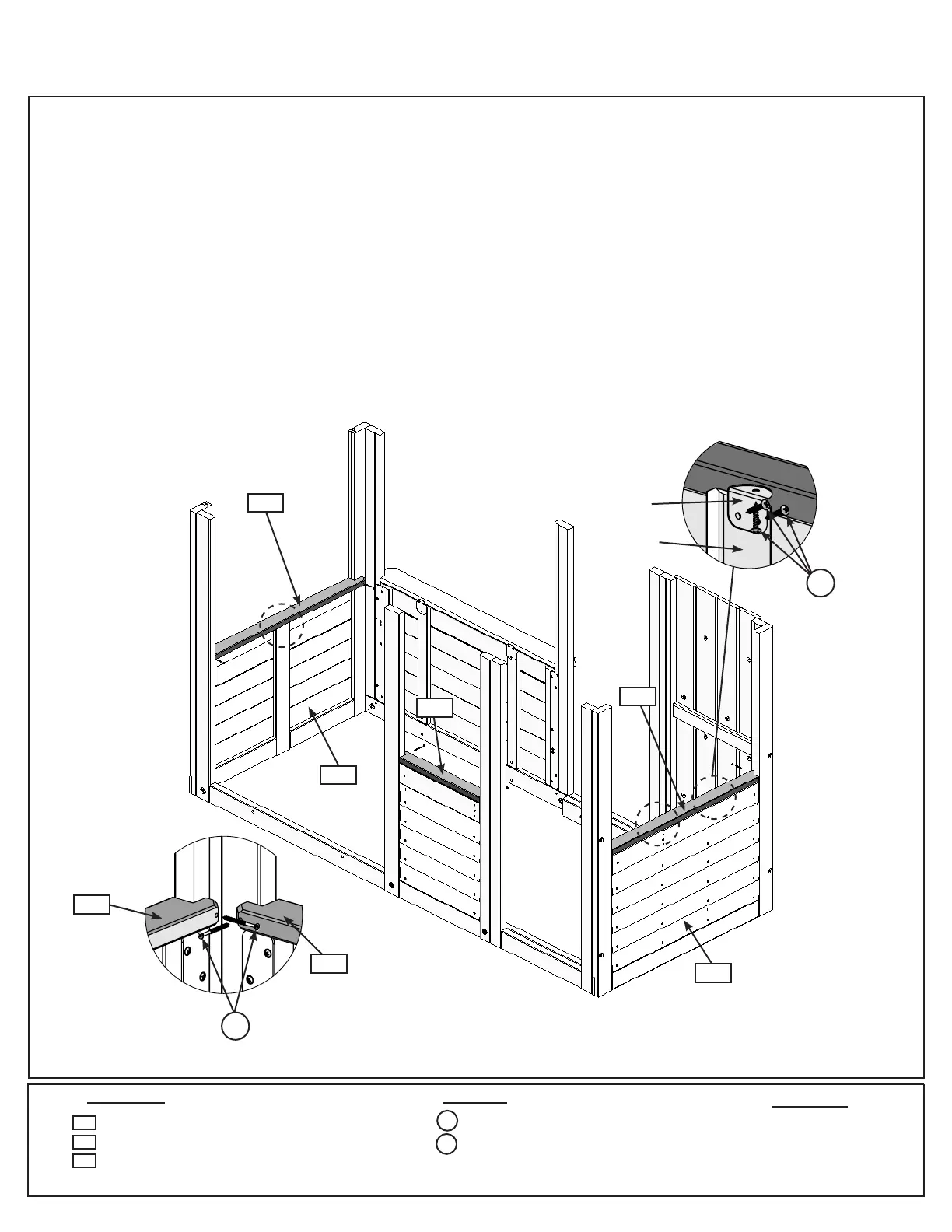

A: In the opening of (9213) SW Wall Panel, from the inside, place (9071) SW Wall Top, tight to the corner of the
panels with overhang facing in. Attach using 1 (S11) #8 x 2” Wood Screw at each end as shown in g. 18.1 and
18.2.
B: In the opening of (9214) End Slide Panel, from the inside, attach (9053) Half Wall Top, tight to the corner of
the panels with overhang facing in with 1 (S11) #8 x 2” Wood Screw at each end as shown in g. 18.1 and 18.2.
C: In the opening of the Back Wall, from the inside, attach (9354) Small Half Wall Top tight to the corner of the
panel with overhang facing in with 1 (S11) #8 x 2” Wood Screw at each end as shown in g. 18.1 and 18.2.
D: At the top of each slat on the end walls, ush to the wall tops, attach 1 Corner Bracket using 3 (S0) # 8 x 7/8”
Truss Head Screws per bracket. (g. 18.1 and 18.3)
Step 18: Attach Wall Tops
9354
9053
Corner
Bracket
Slat
S0
x 3 per
bracket
9213
9214
Fig. 18.2
Inside View
S11
9053
9354
