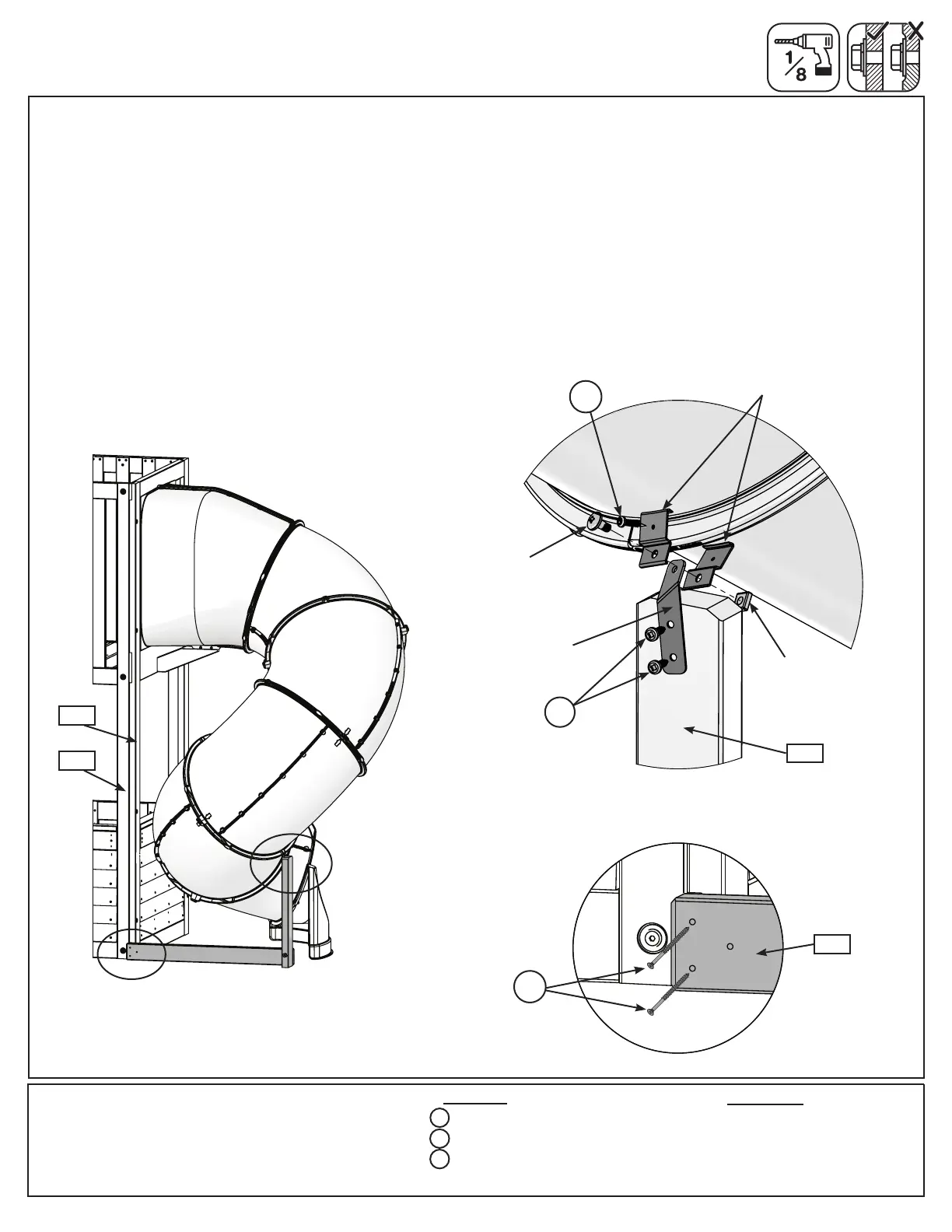

Step 49: Attach Elbow Assemblies and TNR4 Slide
A: Place TNR Brace assembly centered over pilot holes of (8963) TNR Ground Brace. Attach with 2 (S3) #8 x
2-1/2” Wood Screws. (g. 49.1 & 49.3)
B: Place 1 TNR4 Post Mount Clamp on either side of the Clamp Ring so that the bent tops clip in behind the
Clamp Ring. (g. 49.2)
C: Insert the TNR4 Post Mount Base in between the 2 Post Mount Clamps and screw all pieces together using 1
¼ x 14.5mm Pan Head Bolt and Square Nylock Nut. (g. 49.2)
D: Attach TNR4 Post Mount Base to (8965) TNR Upright, pre-drill with a 1/8” drill bit then attach with 2 (S6) #12 x
1” Pan Screws. (g. 49.2)
E: Attach the Post Mount Clamp to the clamp ring using 1 (S37) #7 x 5/8” Pan Screw. (g. 49.2)
S3
8963
100
A
TNR4 Post
Mount Base
TNR4 Post
Mount Clamp
S37
Square
Lock
Nut
S6
8965
¼ x 14.5mm
Pan Head Bolt
Fig. 49.1
Fig. 49.2
Fig. 49.3
Hardware
2 x #12 x 1” Pan Screw
2 x #8 x 2-1/2” Wood Screw
1 x #7 x 5/8” Pan Screw
Other Parts
2 x TNR4 Post Mount Clamp
1 x TNR 4 Post Mount Base
1 x 1/4 x 14.5 mm Pan Head Bolt
1 x Square Lock Nut
