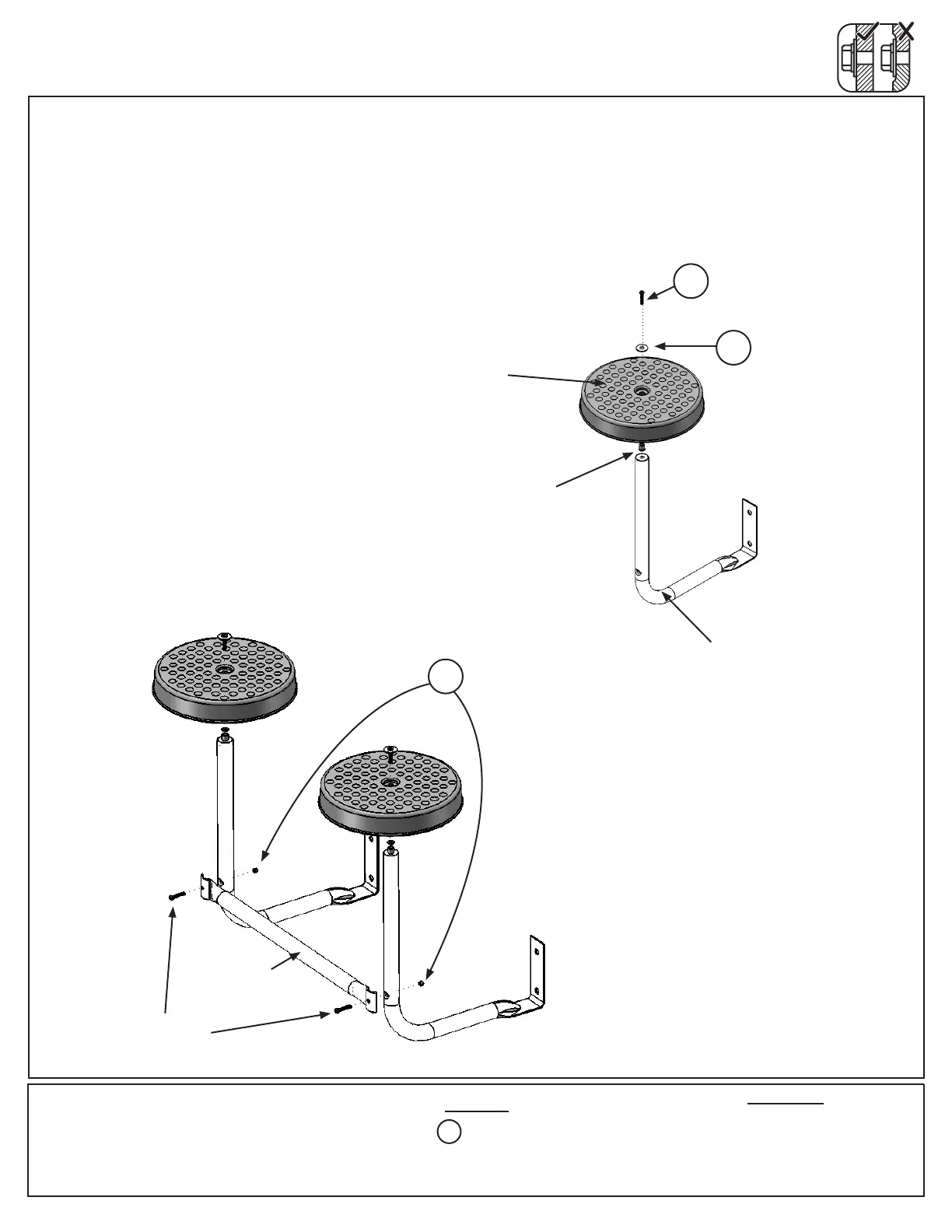

Step 37: Stool Seat Assembly
Part 1
A: Using the hardware provided with the Stool Seat Assembly attach 1 Seat to 1 Seat Support and then create a
second seat as shown in g. 37.1.
B: Keeping the Cross Brace tight to the Seat Assemblies, fasten the Cross Brace to each of the Seat Assemblies
using the hardware provided. (g. 37.2).
1/4-20 x 1-1/4”
Machine Screw
Cross Brace
Other Parts
Seat
Seat Support
Spacer
Fig. 37.1
Fig. 37.2
1 x Stool Set (with hardware)
PB6
FW1
LN1
Hardware
2 x 1/4 x 1” Pan Bolt (FW1)
PB6
