KidKraft Cedar Summit DEVONSHIRE ELITE - Dutch Door Assembly

52
10 x #7 x 5/8” Pan Screw
2 x #7 x 1-1/8” Pan Screw
Hardware
S38
S37
S38

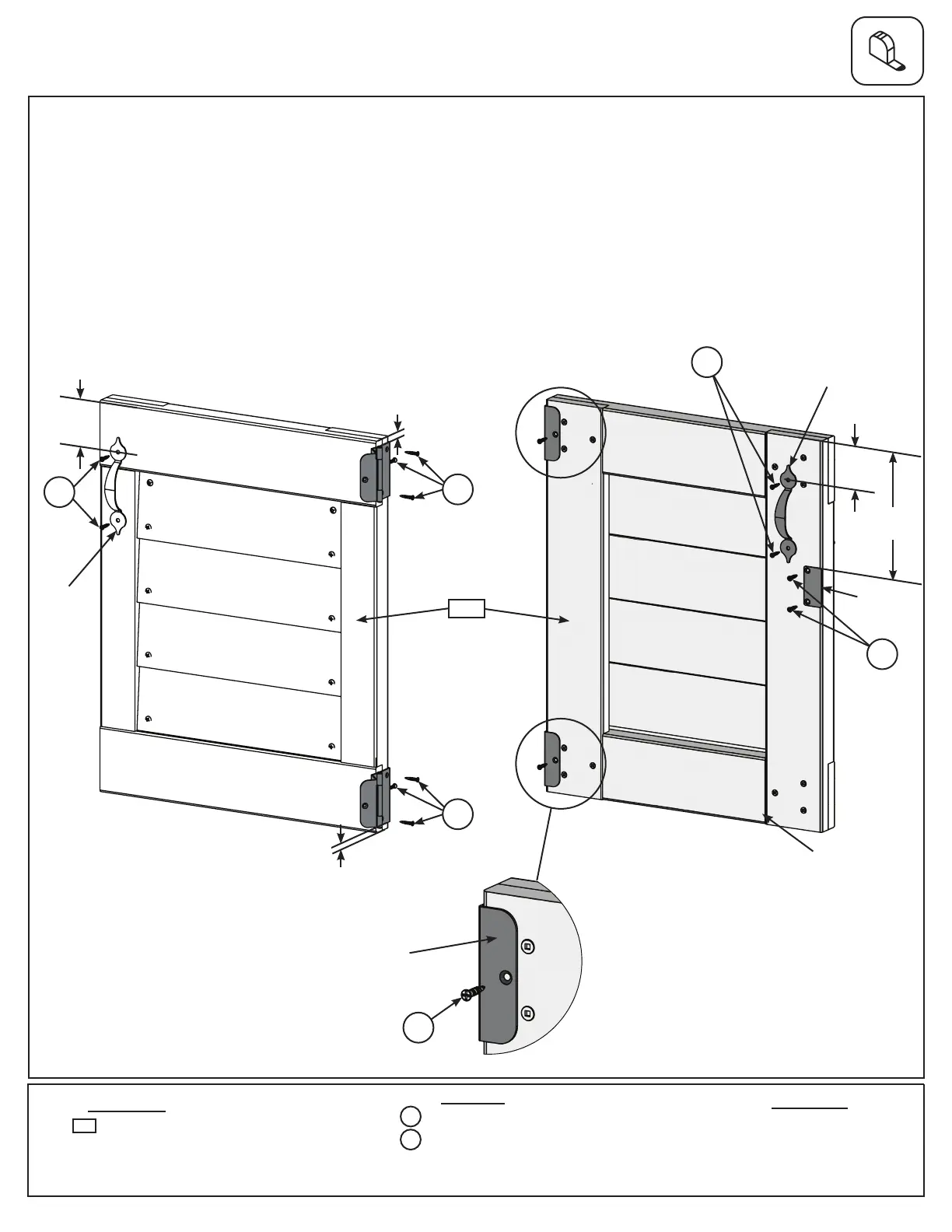

Fig. 19.1 Fig. 19.2
Fig. 19.3
Outside View Inside View
S37
S37
S37
S37
S37
2.6”
(66mm)
2.6”
(66mm)
0.3”
(7.6mm)
0.3”
(7.6mm)
6.5”
(165mm)
Other Parts
2 x Door Handle
2 x Door Hinge
1 x Catch Plate
Door
Handle
Door
Handle
Catch
Plate
Door
Hinge
Flush
9215
1 x Dutch Door
9215
Wood Parts
A: On the outside edge of the (9215) Dutch Door, measure 2.6” (66mm) down from the top of the door and install
1 Door Handle using 2 (S37) #7 x 5/8” Pan Screws. (g. 19.1)
B: At the opposite end of the door panel, measure 0.3” (7.6mm) down from the top of the door and install 1 Door
Hinge using 3 (S37) #7 x 5/8” Pan Screws. Measure 0.3” (7.6mm) up from the bottom of the Door Panel to install
a bottom Door Hinge using 3 (S37) #7 x 5/8” Pan Screws. (g 19.1, 19.2 and 19.3)
C: On the inside edge of (9215) Dutch Door, measure 2.6” (66mm) down from the top of the door and install 1
Door Handle using 2 (S37) #7 x 5/8” Pan Screws. (g. 19.2)
D: Measure 6.5” (165mm) inches down from the top of the inside edge to install a Catch Plate using 2 (S38) #7 x
1- 1/8” Pan Screws, making sure that Catch Plate is ush to the edge of the door frame. (g. 19.2)
Step 19: Dutch Door Assembly
Part 1
