27
Hardware
22 x #8 x 1-1/16” Wood Screw
S30
x 22
S30
S30
S30
3 x Balluster 5/8 x 2-1/2 x 36-29/32”
9373
Wood Parts

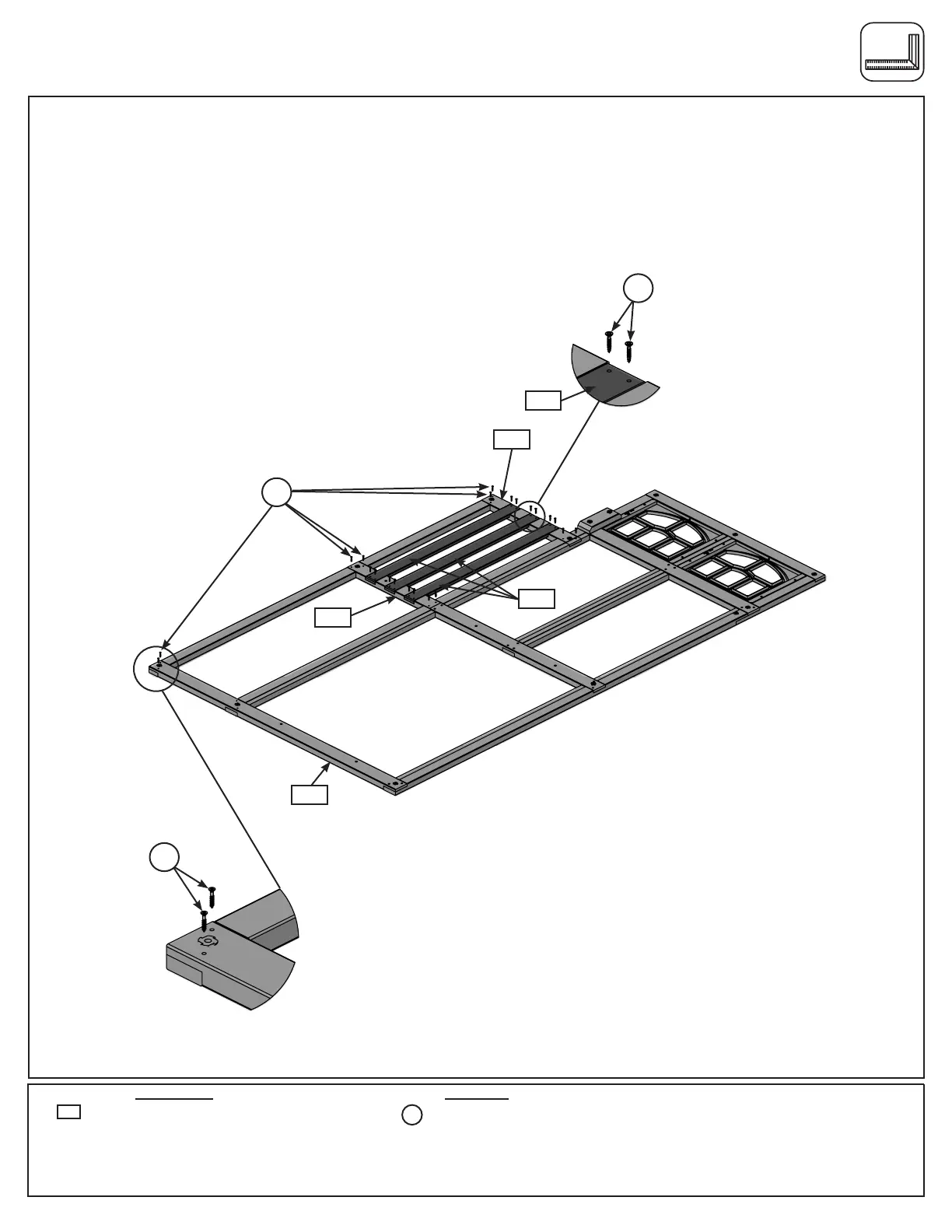

L: Place 1 (9373) Balluster in each of the notches in (9366) Narrow Mid Cross Back and (9451) Cross Support
Middle Short, making sure they are ush. Attach using 4 (S30) #8 x 1- 1/16” Wood Screws per board. (g. 3.9 and
3.10)
M: Check to ensure that the assembly is square, then install 10 (S30) #8 x 1- 1/16” Wood Screws into the
locations shown in g.3.6 securing the (9366) Narrow Mid Cross, (9451) Cross Support Middle Short and the
(9372) Cross Frame. (g 3.9 and 3.11)
N: Tighten all bolts.
Step 3: Back Wall Assembly
Part 4
Fig. 3.9
Fig. 3.11
Fig. 3.10
9373
9373
9366
9451
9372
