KidKraft Cedar Summit DEVONSHIRE ELITE - Install Jamb Mount

85
Step 40: Install Jamb Mount
Hardware
8 x #8 x 7/8” Truss Head Screw
S0
2 x Flat Panel Bracket
Other Parts
Flat Panel
Bracket
S0
S0
Centered

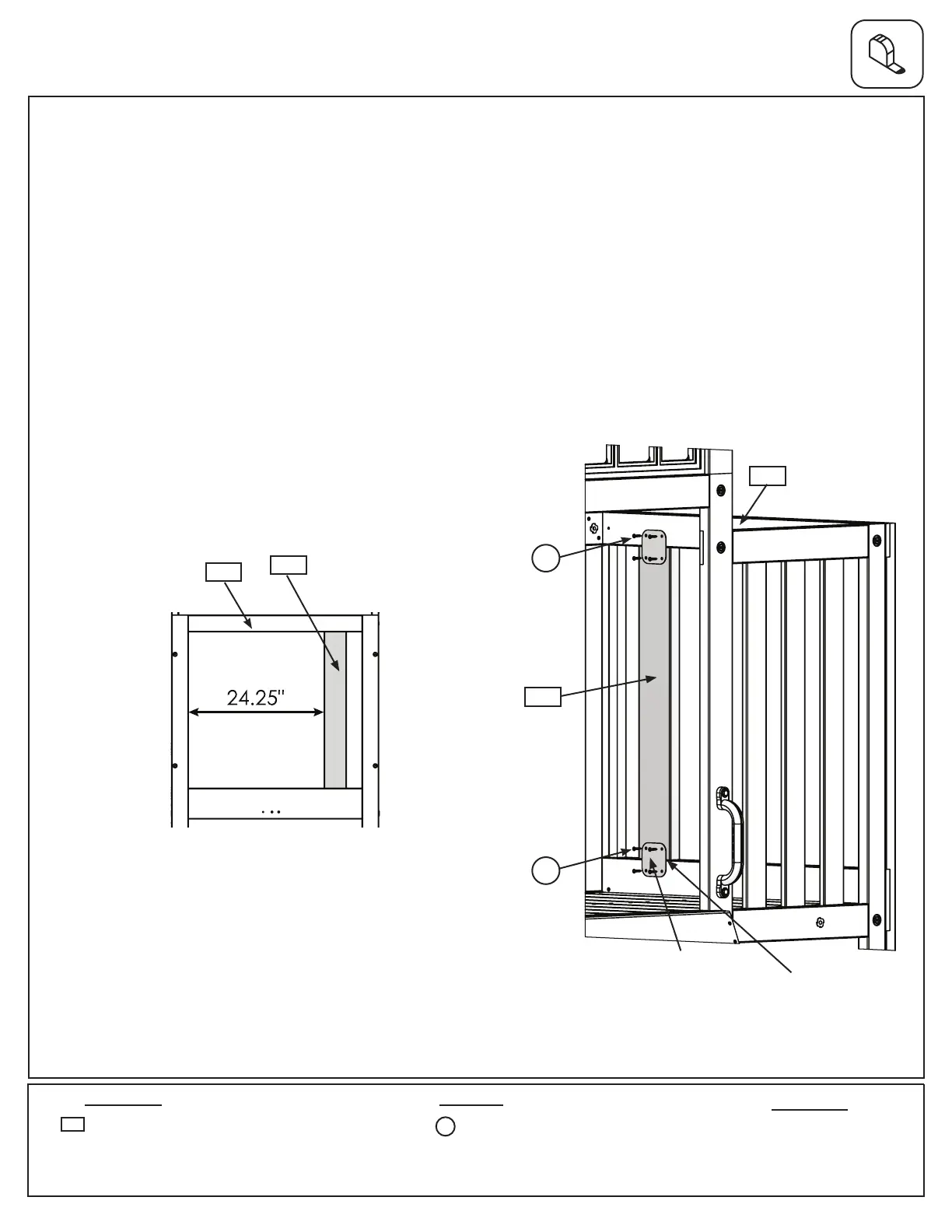

A: From inside the assembly, in the upper opening of (9214) End Slide Panel place (9355) TNR Side Jamb so that
it measures 24- ¼” (61.6cm) to the inside right edge of the panel. Attach with 2 Flat Panel Brackets using 4 (S0)
#8 x 7/8” Truss Head Screws per bracket as shown in g.40.2. (g. 40.1)
Fig. 40.1
Fig. 40.2
x 4
x 4
1 x TNR Side Jamb 1-1/4 x 3-51/61 x 27-29/32
Wood Parts
9355
Opening is 24.25” (61.6cm) wide
9355
9355
9214
9214
(61.6cm)
