58
1 x Access Rock Bottom 5/8 x 5-1/4 x 22-1/8”
1 x Access Board 5/8 x 4-1/4 x 22-1/8”
4 x Board Rock A 5/8 x 5-1/4 x 22-1/8”
5 x Board Rock B 5/8 x 5-1/4x 22-1/8”
Wood Parts
Hardware
8515
8512
8511
9032

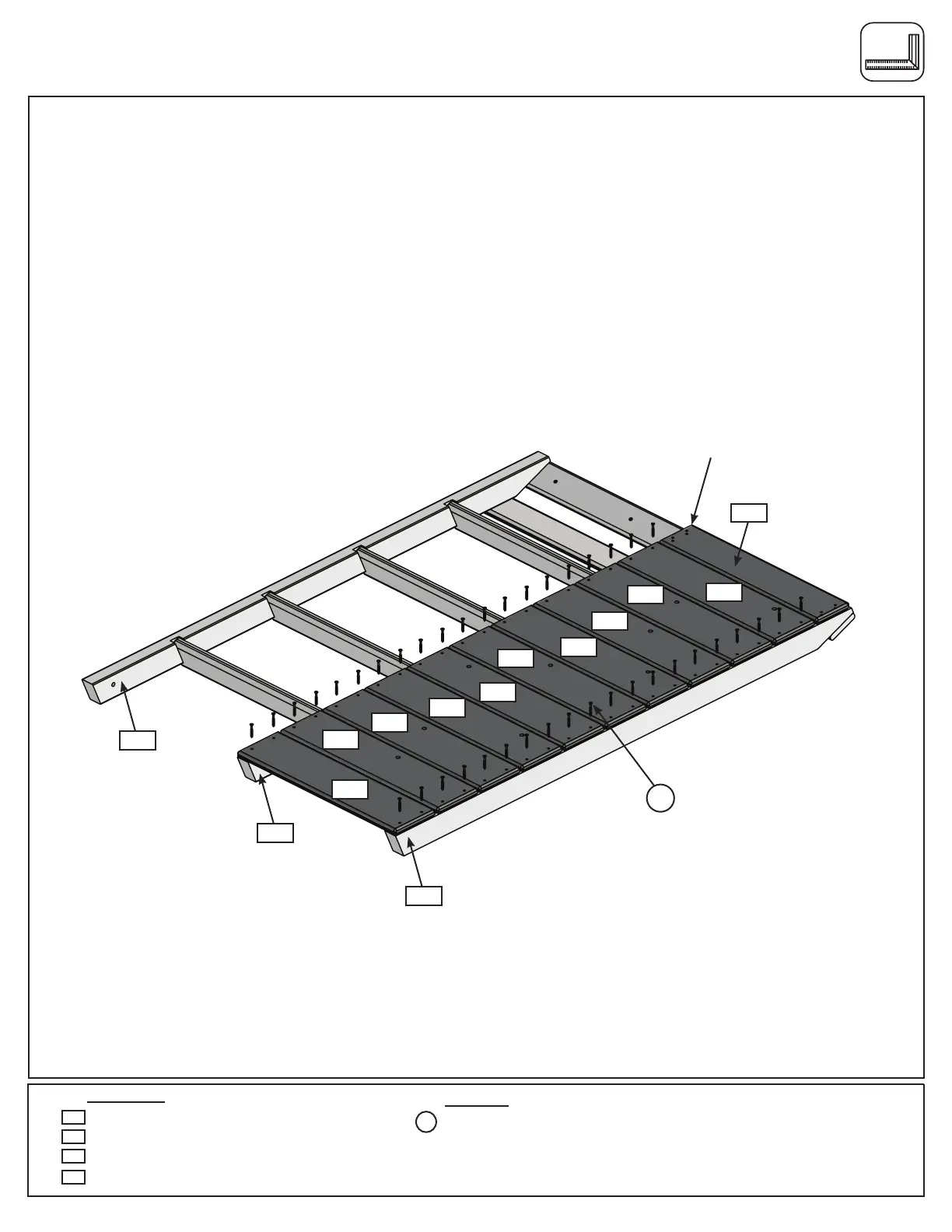

A: Place (9032) Access Board ush to the top of the Access Ladder/Rockwall Assembly and (8515) Access Rock
Bottom at the bottom of the assembly as shown in g. 21.1. Then place (8511) Board Rock A and (8512) Board
Rock B as shown in g. 21.1. Do not screw boards down yet. Rock holes are to be staggered so they do not form
a straight line and are at the top of the boards. Note: Rock Boards are to be ush to (9055) Right Access and
pilot holes are centered over (9058) Rock Rail. (g. 21.1)
B: Make sure all boards are tight together and the assembly is square, then attach all boards except for (9032)
Access Board using 4 (S20) #8 x 1-3/8” Wood Screws per board. (9032) Access Board to be attached in Step 22,
Part 2, keep aside until needed.
40 x #8 x 1-3/8” Wood Screw
Fig. 21.1
S20
IMPORTANT!
Follow hole pattern
x 4 per
board
S20
Do not attach yet,
put aside until
Step 22, Part 2
9032
8511
8511
8511
8511
8512
8512
8512
8512
8512
8515
Flush
9239
9055
9058
Step 21: Rockwall Assembly
Part 1
To Next Page
