72

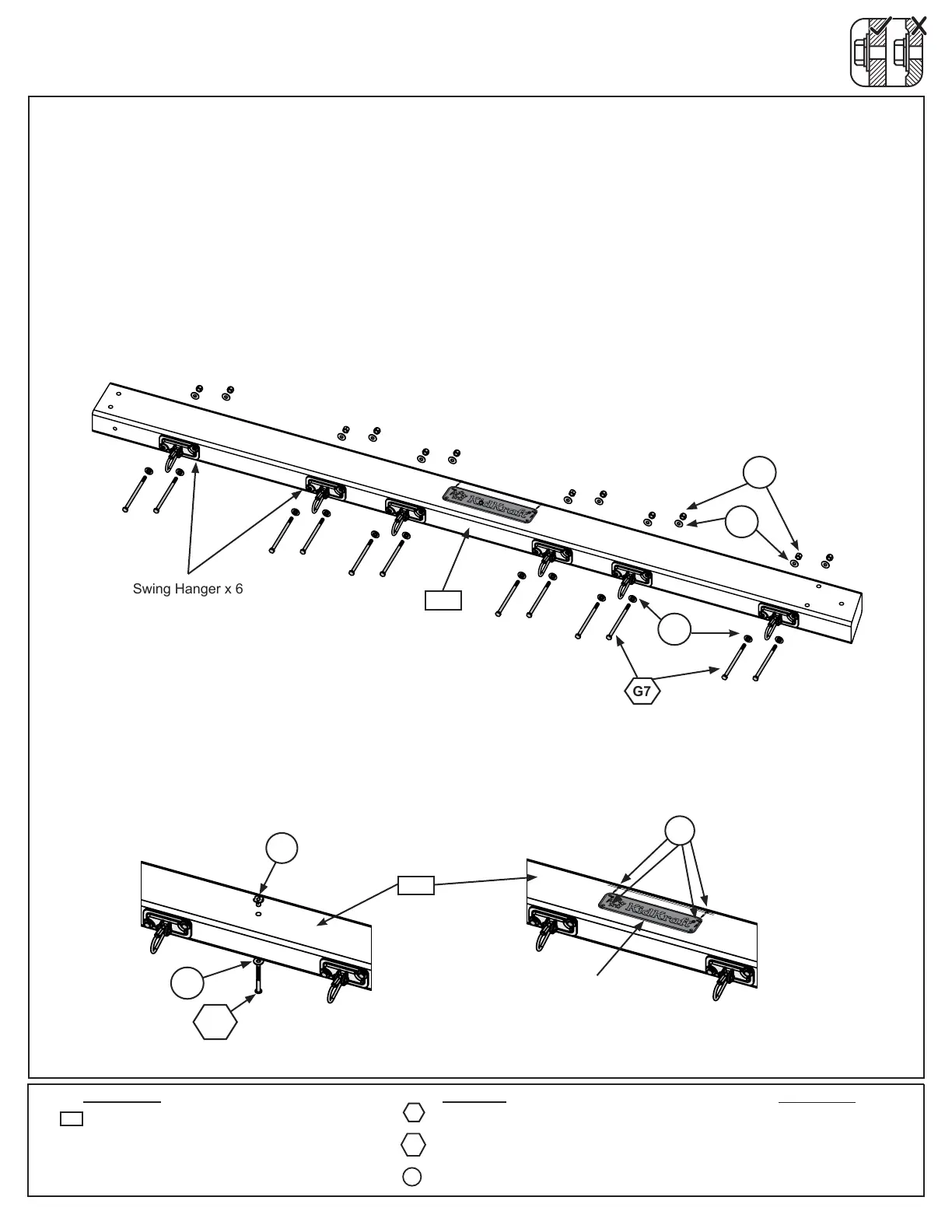

Step 29: Swing Beam Assembly
Part 1
Hardware
A: Attach 6 Swing Hangers to the (9452) Engineered Beam using 2 (G7) 5/16 x 5-1/2” Hex Bolts (with 2 at
washers and 1 lock nut) per Swing Hanger as shown in g. 29.1.
B: Install 1 (WB7) 5/16 x 3” Wafer Bolt (with at washer and t-nut) in the middle bolt hole in (9452) Engineered
Beam as shown in (g. 29.2). IT IS IMPORTANT THAT THIS BOLT IS ATTACHED. IT WILL MINIMIZE
CHECKING OF WOOD.
C: Attach KidKraft Plaque to centre of (9452) Engineered Beam (over top of t-nut) using 4 (S18) #6 x 1” Wood
Screws. (g. 29.3)
12 x 5/16 x 5-1/2” Hex Bolt
(FW2 x 2, LN2)
1 x 5/16 x 3” Wafer Bolt
(FW2 & TN2)
4 x #6 x 1” Wood Screw
Other Parts
6 x Swing Hangers
1 x KidKraft Plaque
Wood Parts
1 x Engineered Beam 3 x 5-1/4 x 88”
G7
WB7
9452
WB7
Fig. 29.2
Swing Hanger x 6
Fort End
Fig. 29.1
G7
9452
KidKraft
Plaque
S18
x 4
Fig. 29.3
S18
9452
FW2
LN2
FW2
TN2
FW2
To Next Page
