KidKraft Cedar Summit DEVONSHIRE ELITE - Attach Exit End Assembly to Fort

91
Step 45: Attach Exit End Assembly to Fort
6 x 1/4” x 12.7mm Pan Bolt
6 x 1/4” Square Lock Nut
Other Parts
A
Make sure arrows are aligned

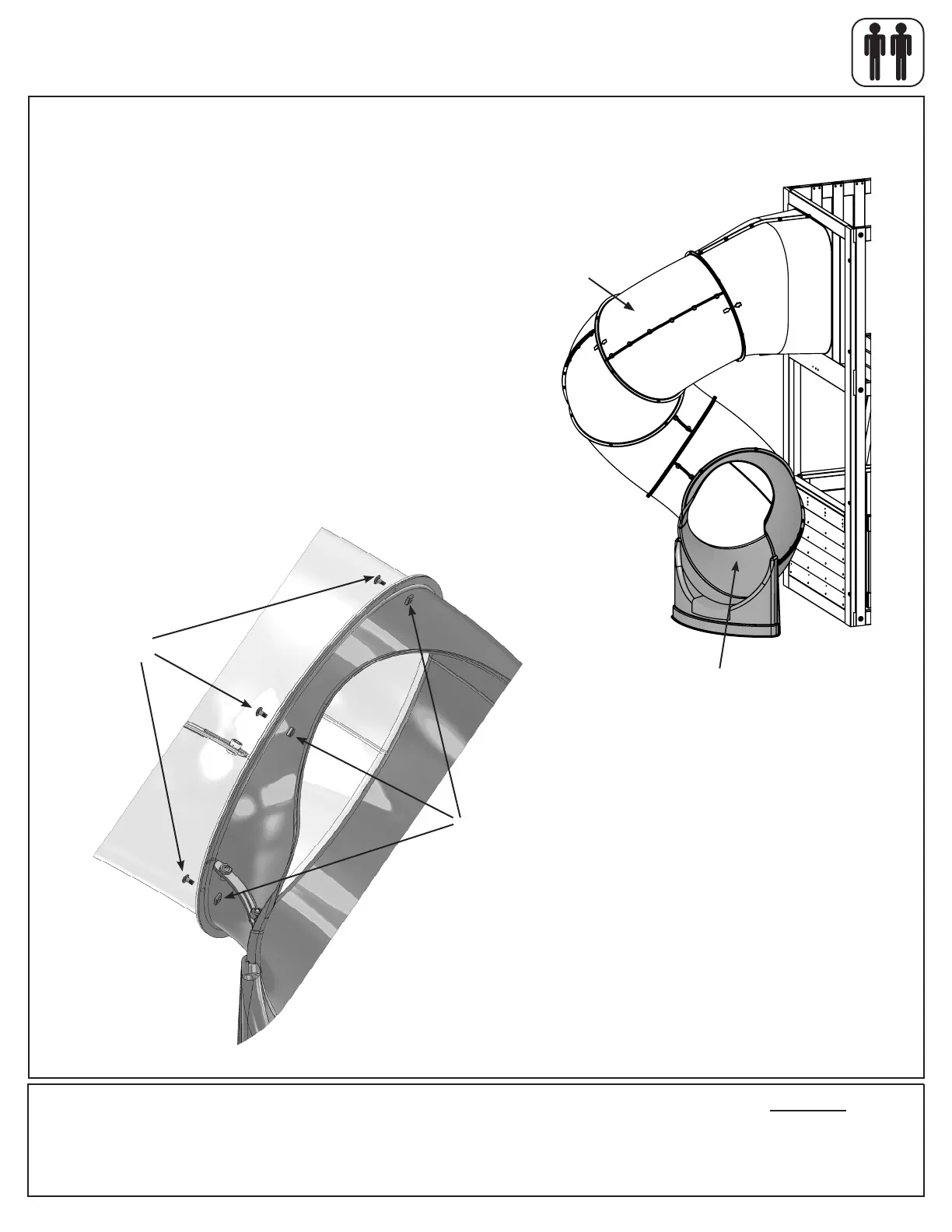

A: Fit the Exit End Assembly to the last Elbow Assembly by lining up the arrows on each assembly. Notice the
elbow orientation. (g. 45.1). Attach with 6 (¼ x 12.7)mm Pan Bolts and Square Lock Nuts. (g. 45.2)
Fig. 45.1
Fig. 45.2
Square Lock Nut
1/4 x 12.7mm
Pan Bolt
Elbow
Assembly
Exit Elbow
Assembly
