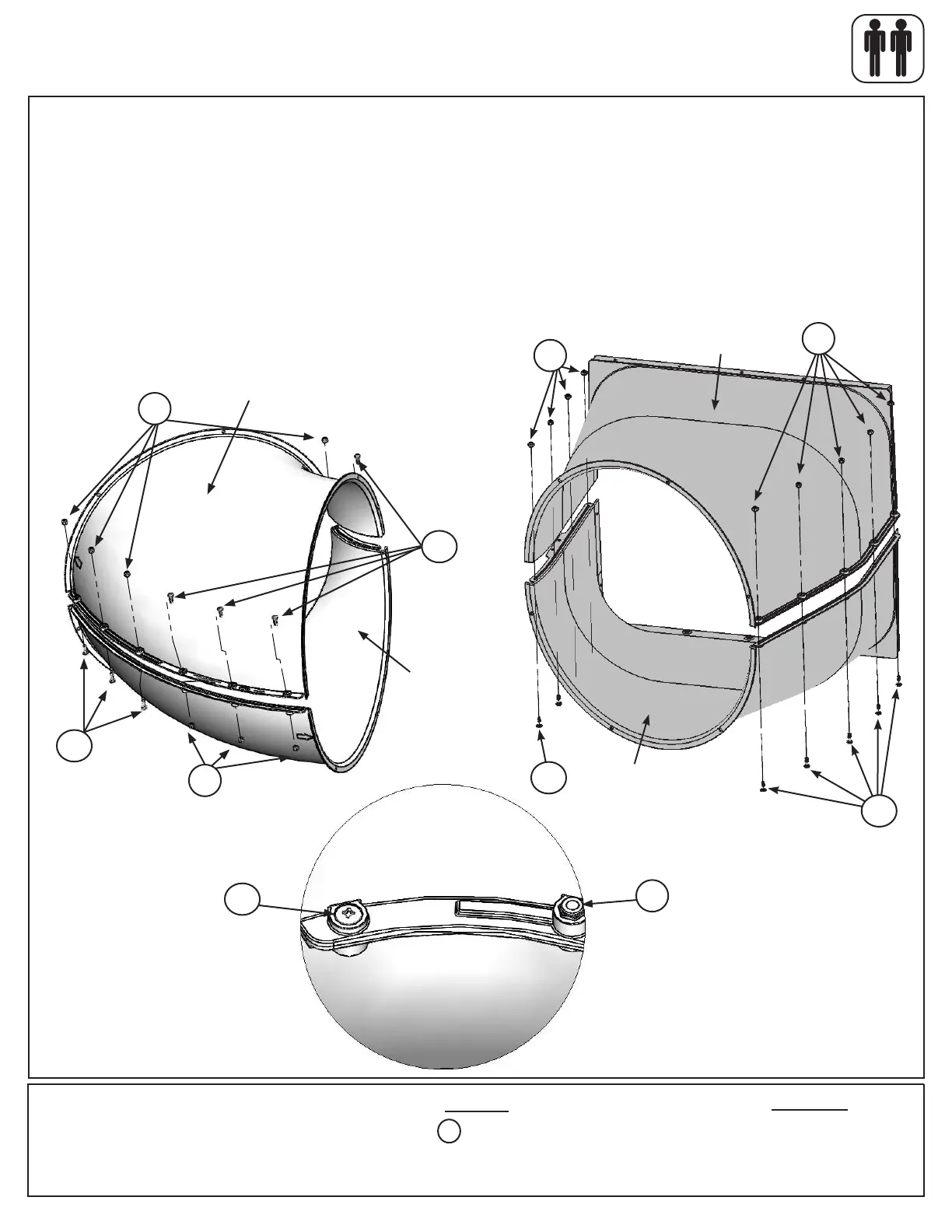

Step 41: Slide Section Assemblies
Part 1
Note: When installing Pan Bolts make sure to look at holes so bolts go through the side with the
round recess and the lock nuts go through the side with the hexagonal recess. (g. 41.3)
A: Fit 2 TNR2 Slide Elbows together and attach with 8 (PB1) 1/4 x 3/4” Pan Bolts (with lock nut) as shown in
g. 41.1. It is very important to attach bolts as indicated.
B: Repeat Step A 3 more times to create 4 Elbow Sections in total.
C: Attach TNR3 Extended RT Flange and TNR3 Extended LT Flange together using 9 (PB1) 1/4 x 3/4” Pan
Bolts (with lock nut) as shown in g. 41.2. This creates the Flange Assembly.
Hardware
41 x 1/4 x 3/4” Pan Bolt (LN1)
PB1
Other Parts
Use a 7/16” open end
wrench for nuts
Fig. 41.1
Fig. 41.2
Fig. 41.3
TNR2
Slide
Elbow
PB1
TNR2
Slide
Elbow
PB1
PB1
1 x TNR3 Extend Flange RT
1 x TNR3 Extend Flange LT
8 x TNR2 Slide Elbow
LN1
LN1
LN1
LN1
LN1
