KidKraft Cedar Summit DEVONSHIRE ELITE - Attach Diagonal

77
1 x 1/4 x 2-1/4” Hex Bolt (LW1, FW1, TN1)
1 x 1/4 x 2-1/2” Wafer Lag (FW2)
1 x #8 x 2-1/2” Wood Screw
2 x #8 x 2” Wood Screw
Hardware
Wood Parts
1 x SW Ground 15/16 x 3-1/4 x 14-1/4”
1 x Diagonal 1-1/4 x 3 x 22”
2606
2607
A: Loosely attach (2606) SW Ground to (2607) Diagonal with 1 (H10) 1/4 x 2-1/4” Hex Bolt (with lock washer,
at washer and t-nut) (g.33.2) then place (2607) Diagonal tight and ush to the front of (9213) SW Wall Panel.
(2606) SW Ground to be ush to the bottom of (9213) SW Wall Panel. (g. 33.1 and 33.2)
B: Pre-drill pilot hole with a 3/16” drill bit then attach (2607) Diagonal to (9213) SW Wall Panel with 1 (WL5) 1/4
x 2-1/2” Wafer Lag (with at washer), checking that it remains ush to outside edge. (g. 33.2)
C: Make sure bottom of (2606) SW Ground is ush to bottom of (9213) SW Wall Panel then attach with 2 (S11)
#8 x 2” Wood Screws and 1 (S3) #8 x 2-1/2” Wood Screw then tighten the bolt. (g. 33.2)
WL5
S11
S3
H10

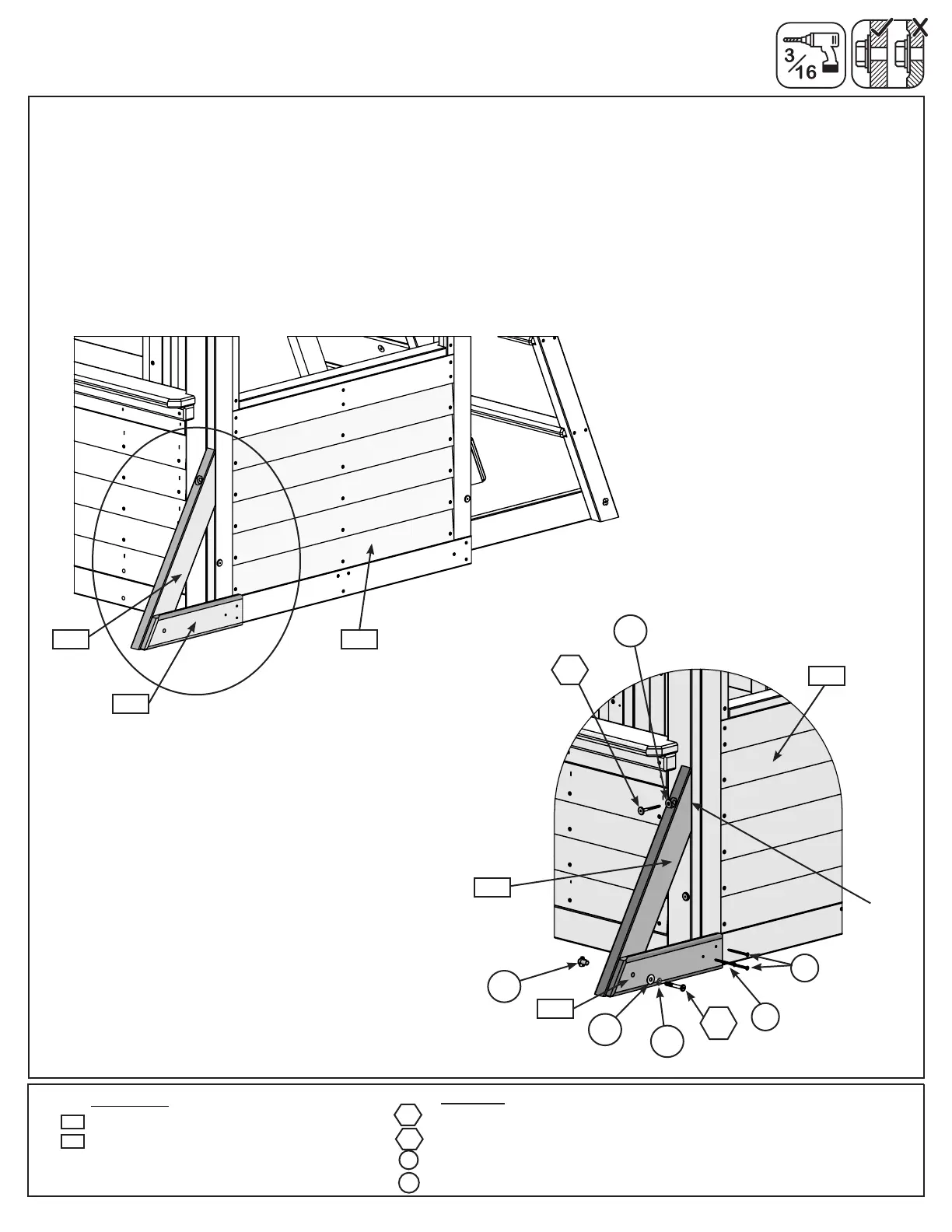

Step 33: Attach Diagonal
Fig. 33.1
9213
17
Tight and
ush to
outside
edge
S11
S3
H10
WL5
9213
2606
2606
2607
2607
Fig. 33.2
FW2
TN1
FW1
LW1
