Step 28: Attach Roof to Fort

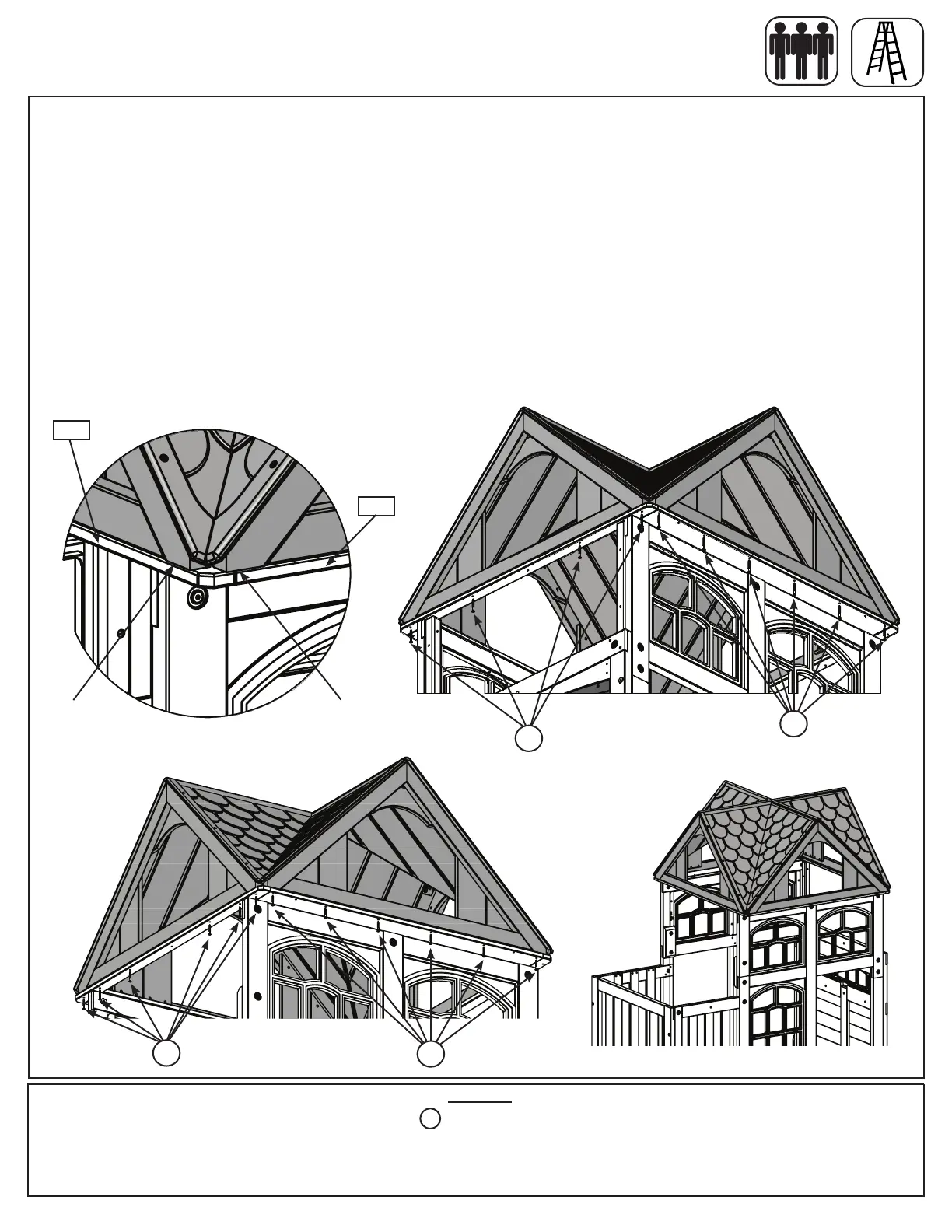

A: With 2 people on the ground and at least 1 person in the fort, lift the Roof Assembly up and over the Back
side of the fort. Guide the Roof Assembly onto the fort so all four Gable Assemblies sit ush to the front and
outside edges of the (9350) Softs and the (9351) Soft Narrows. (g. 28.1 and 28.2)
B: Attach Roof Assembly to (9350) Softs and (9351) Soft Narrows from underneath using 20 (S20) #8 x 1-3/8”
Wood Screws.(g. 28.2, 28.3 and 28.4)
Hardware
20 x #8 x 1-3/8” Wood Screw
Fig. 28.1
Fig. 28.3
Fig. 28.4
S20
S20
S20
Flush
Flush
S20
S20
Fig. 28.2
9351
