38
HardwareWood Parts
4 x #8 x 7/8” Truss Screw
2 x #8 x 3” Wood Screw
S0
S4
x 2 per
bracket
x 1 per
side
1 x Half Wall 1.27 x 18.8 x 14-7/8”
1 x Window Bottom Spacer 1-1/4 x 2-1/8 x 17
2655A
9386
S4's for the Window Bottom Spacer are not shown,
they go on a 45° angle down
S4's for the Window Bottom Spacer are not shown,
they go on a 45° angle down
S0
S4
2655A
9386
9248

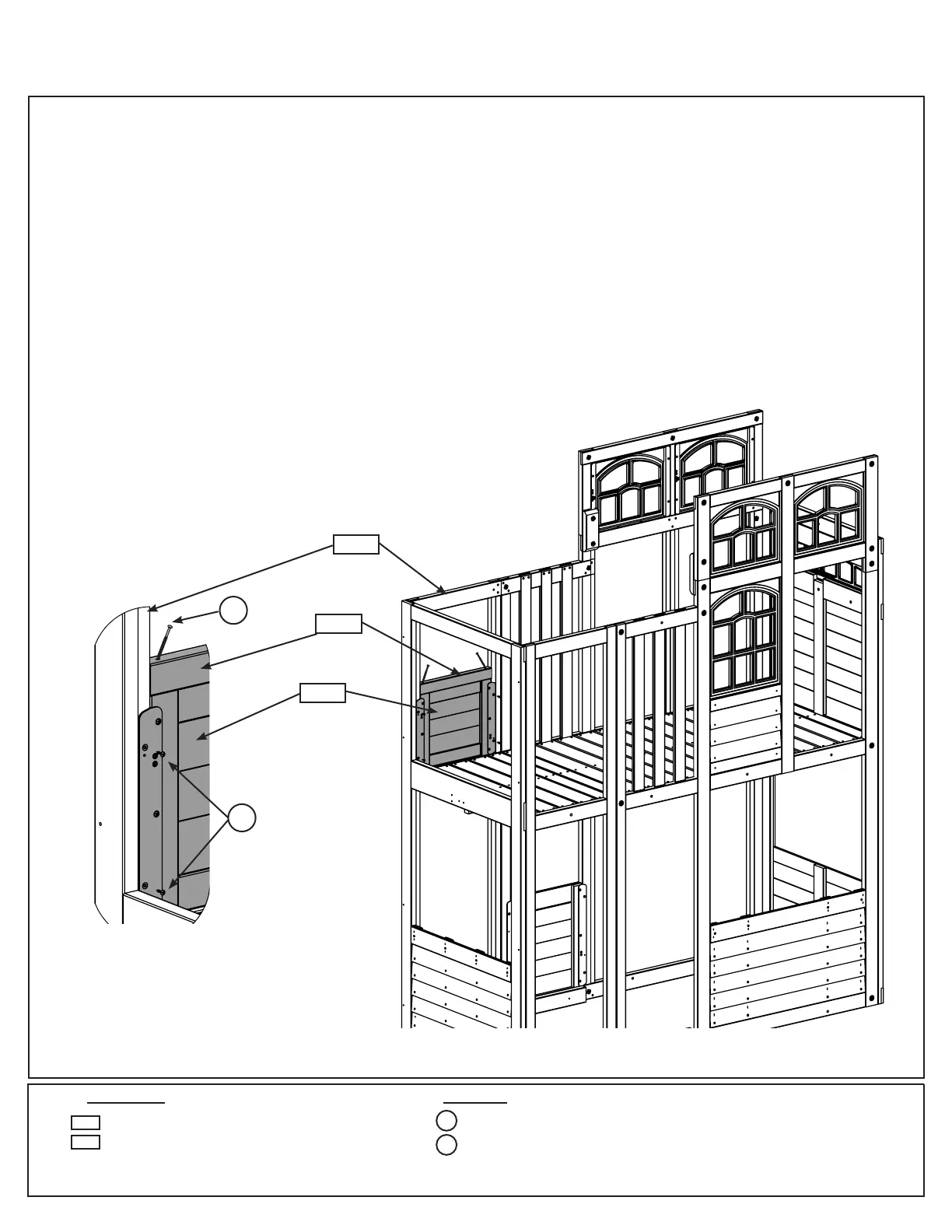

A: On the Back Wall, in the upper opening of the (9248) Narrow Panel, attach one (2655A) Half Wall from the inside
using 2 (S0) #8 x 7/8” Truss screws per side. (g 9.1 and 9.2)
B: Place (9386) Window Bottom Spacer on top of (2655A) Half Wall so that it’s ush with the panel frame. Attach
(9386) Window Bottom Spacer to (9248) Narrow Panel using 2 (S4) #8 x 3” Wood Screws, making sure that they
are installed on a 45 degree angle as shown in g. 9.1 and 9.2.
Fig. 9.1
Fig. 9.2
Step 9: Install Window and Wall Insert
Part 1
