37
Wood Parts
Hardware
102 x #8 x 1-3/8” Wood Screw
S20
9358
x 6 per board
x 15
x 2
Tight
S20
15 x Floor Board A 5/8 x 4-1/2 x 34-5/8”
2 x Floor Board 5/8 x 3 3/8 x 34 3/8
9358
9359
9358
9359
9358
9214

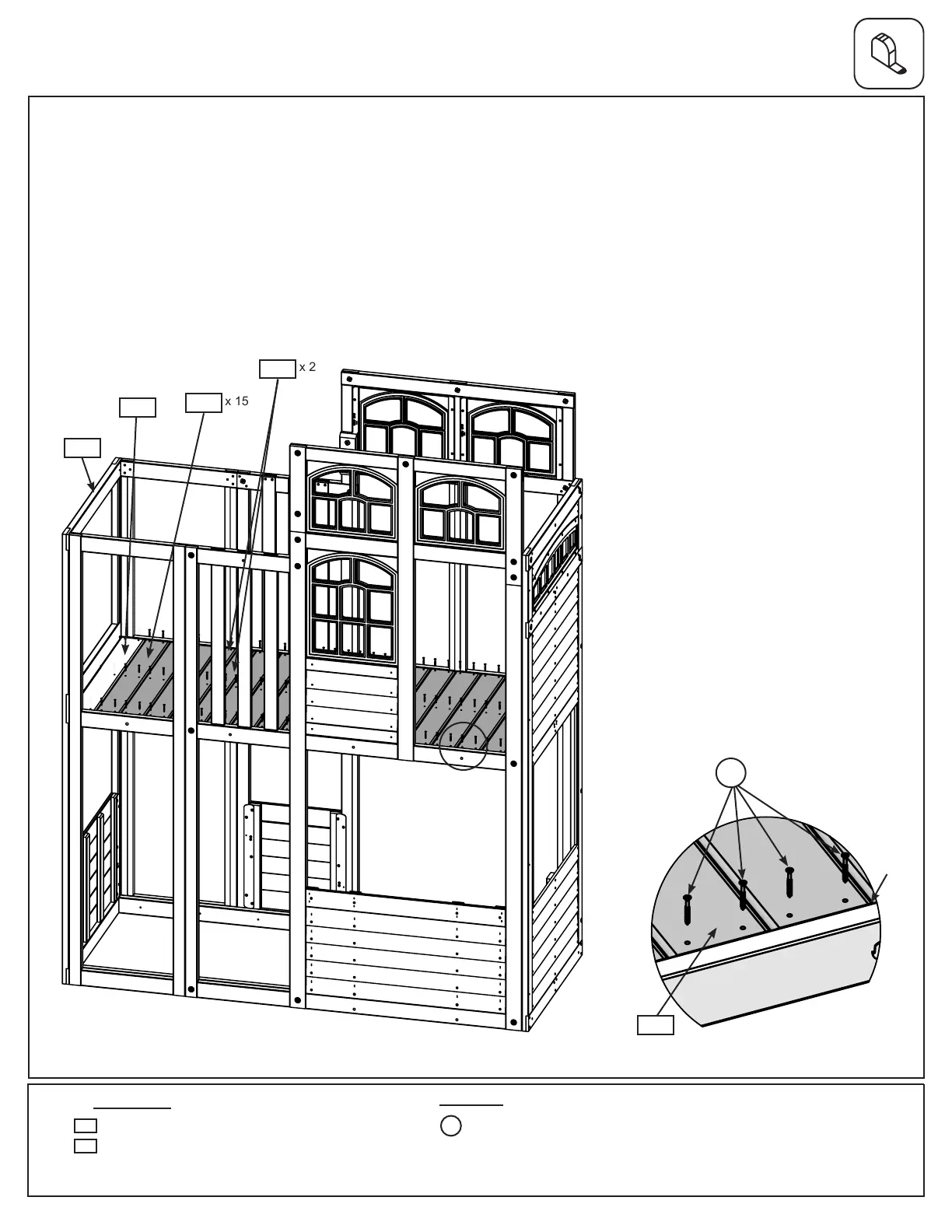

J: Starting at the (9214) End Slide Panel side, place 3 (9358) Floor Board A’s next to the one that was previously
installed. (g 8.6)
K: Place 2 (9359) Floor Boards side by side, next to the (9358) Floor Board A’s. (g 8.6)
L: Evenly space the remaining 12 (9358) Floor Board A’s. (g 8.6)
M: Check to make sure all boards are evenly spaced and attach using 6 (S20) #8 x 1- 3/8” Wood Screws per board.
(g 8.6 and 8.7)
Step 8: Floor Assembly
Part 3
Fig. 8.6
Fig. 8.7
