41
opening is 22-7/16" (570mm)
20 x #8 x 1-3/8” Wood Screw
2 x #8 x 3” Wood Screw
S20
S4
x 5 per
board
x 2
S20
Hardware
9381
9248
Wood Parts
4 x Vertical Rock Board 5/8 x 4-1/2 x 51”
1 x Window Bottom Spacer 1 1/4 x 2 1/8 x 17
9381
9386

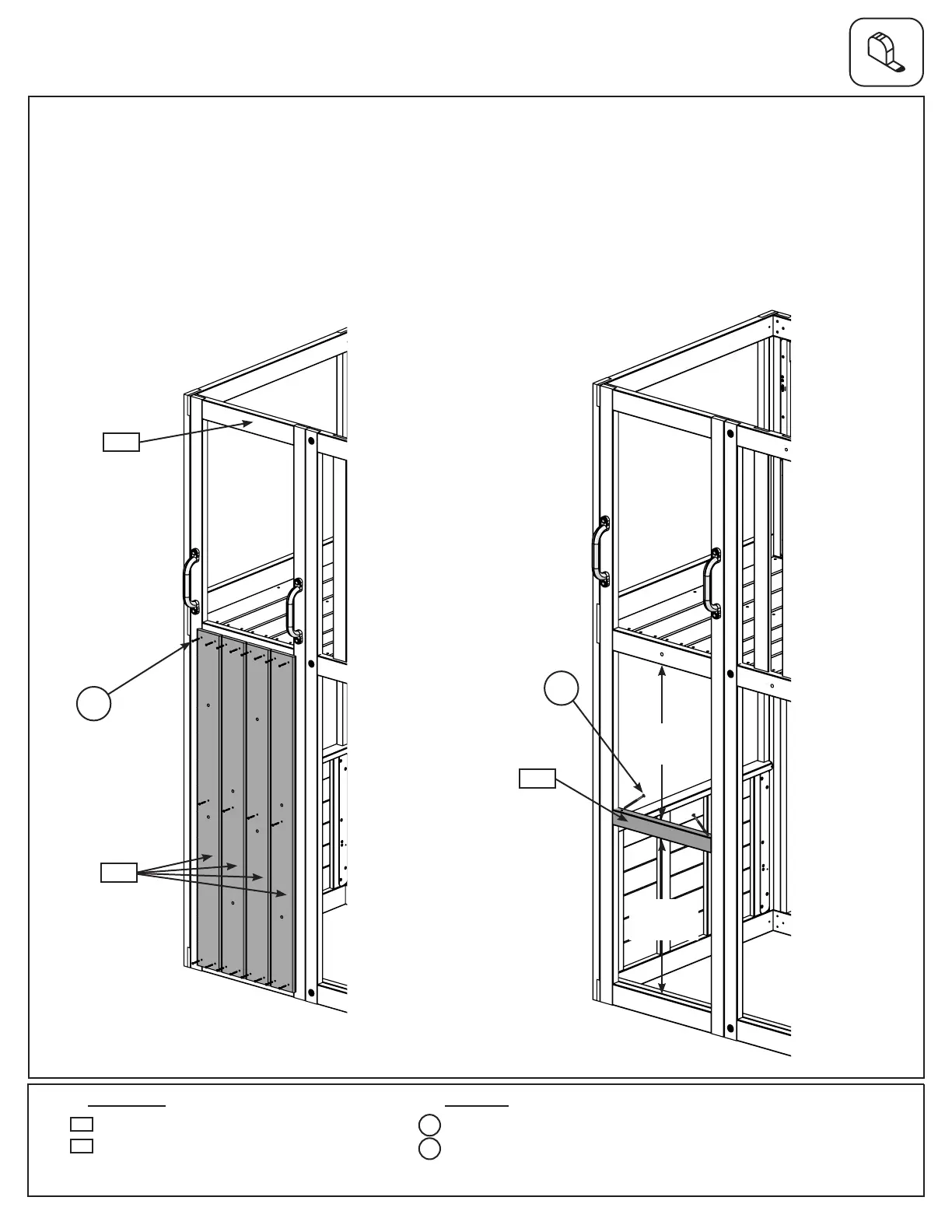

A: In the front lower opening of the (9248) Narrow Panel center 1 (9386) Window Bottom Spacer ensuring that there
is a measurement of 22- 7/16” (570mm) between the board and the frame at both the top and bottom. Attach (9386)
Window Bottom Spacer to each side of the (9248) Narrow Panel using 2 (S4) #8 x 3” Wood Screws, making sure to
install on an angle as shown in g. 11.2.
B: From outside of the assembly position 4 (9381) Vertical Rock Boards, making sure to ip every second board so
the holes are staggered. Check to ensure that the center holes in the Rock Boards are aligned with (9386) Window
Bottom Spacer then attach each board using 5 (S20) #8 x 1- 3/8” Wood Screws. (g 11.1)
Step 11: Attach Rockwall
Part 1
Fig. 11.1 Fig. 11.2
S4
9386
22- 7/16”
57cm
22- 7/16”
57cm
To Next Page
