KidKraft Cedar Summit DEVONSHIRE ELITE - Page 42

42
Hardware
8 x 1/4 x 1-1/4 Pan Bolt
(LW1, FW0 & BN1)
PB2
Other Parts
4 x Rock A
4 x Rock B
8 x #8 x 1” Pan Screw
S10
Fig. 11.4
S10
PB2
Rock
Rock B x 4
Rock A x 4

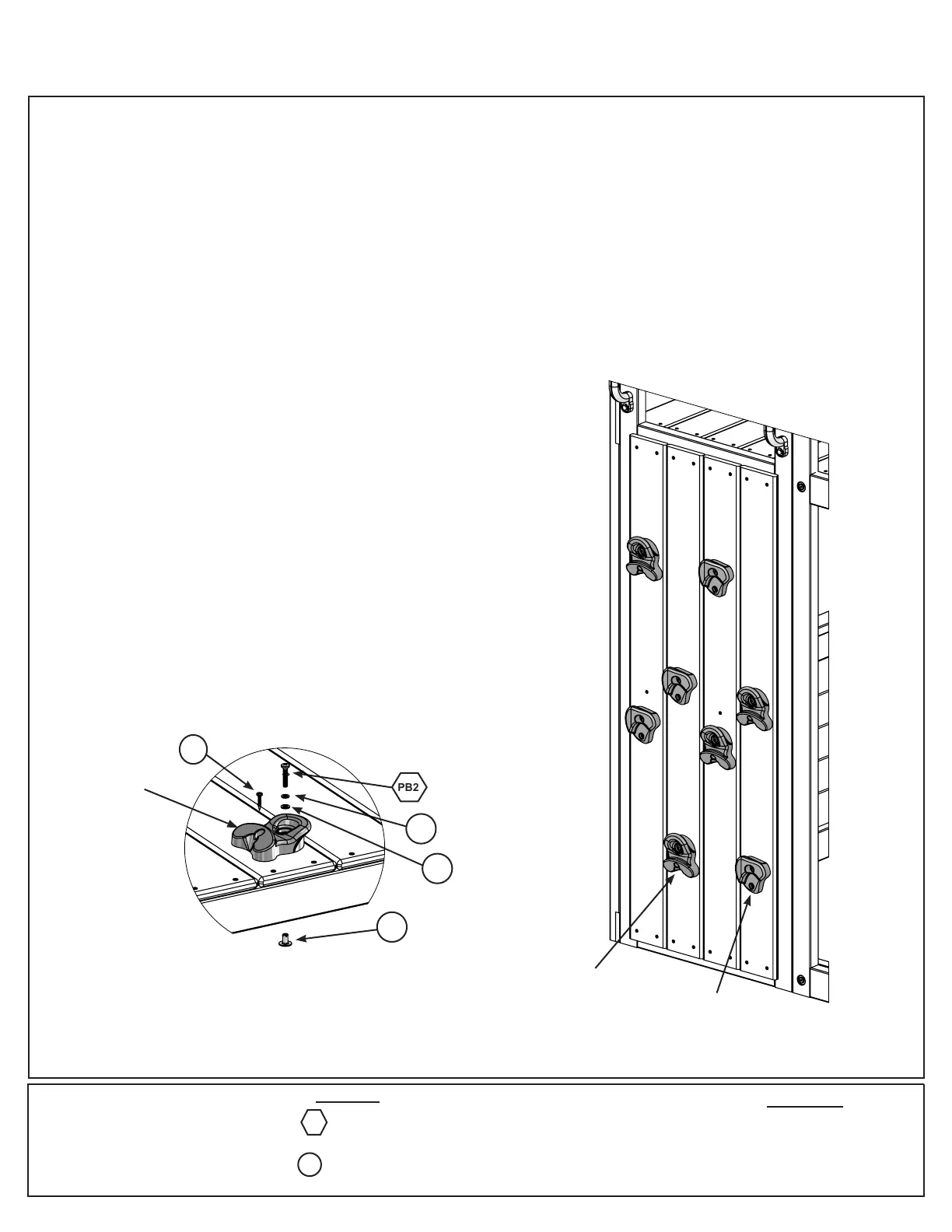

D: Alternating colors and shapes, attach 2 rocks to each rock board using 1 (PB2) 1/4 x 1-1/4” Pan Bolt (with lock
washer, at washer and barrel nut) and 1 (S10) #8 x 1” Pan Screw per rock. (g. 11.3 and 11.4)
The Pan Screw is placed in the hole beneath the Pan Bolt. (g 11.4)
Note: Make sure all hardware is used to secure each rock properly.
Step 11: Attach Rockwall
Part 2
Fig. 11.3
BN1
FW0
LW1
