43
install 2" (50mm) down from
bottom of the rail
Hardware
8 x #8 x 7/8” Truss Screw
S0
Other Parts
2 x Jamb Mount
x 4 per
jamb mount
Jamb Mount
S0
9248
9363
2” (50 mm)

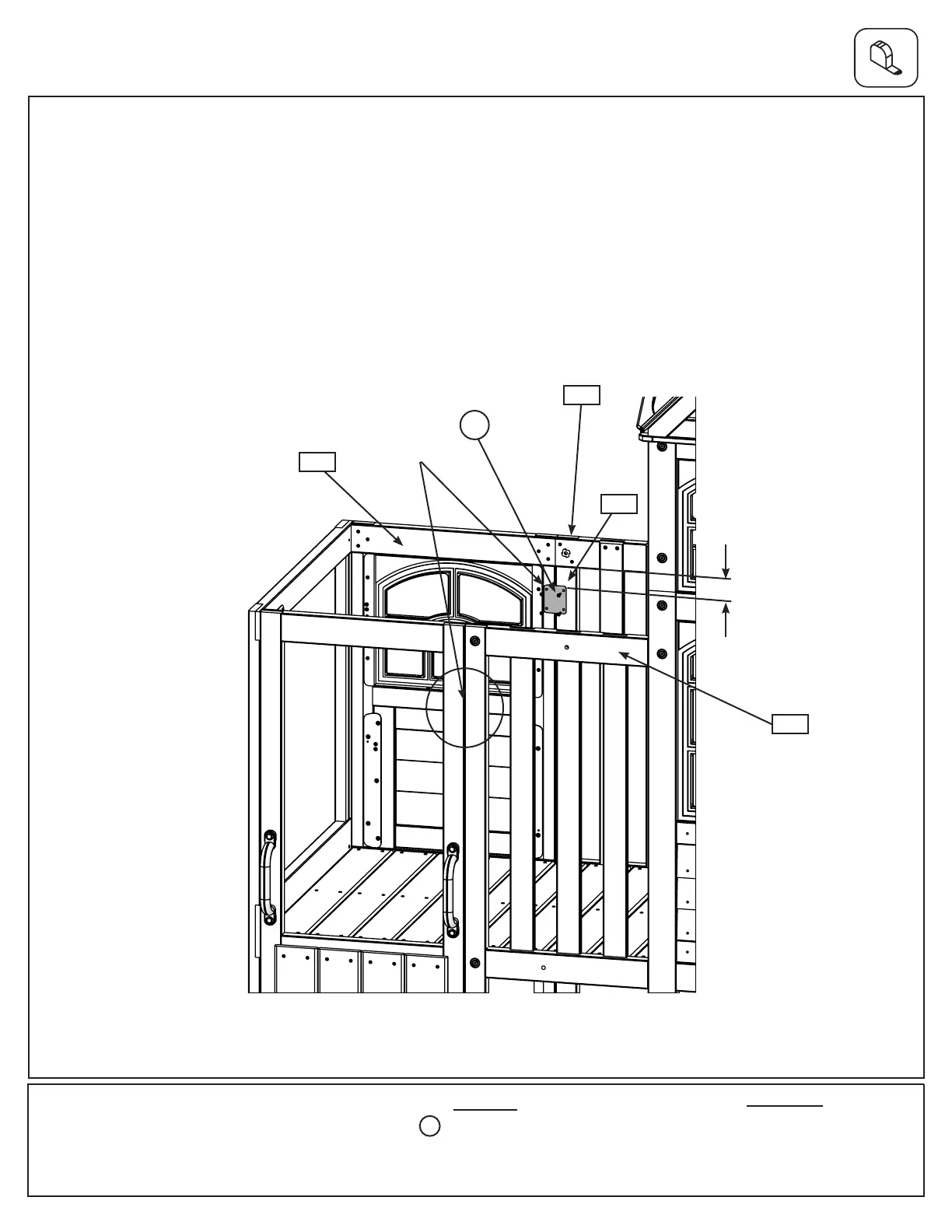

A: On the back wall, Measure 2” (50mm) down from the bottom of (9366) Narrow Mid Cross and place 1 Jamb
Mount centered over (9363) Base End Post and (9248) Narrow Panel. Attach Jamb Mount using 4 (S0) #8 x 7/8”
Truss Screws. (g 12.1)
B: Repeat to install a second Jamb Mount on the Front Wall, measuring 2” (50mm) down from (9367) Narrow Mid
Cross Front.
9366
9367
Step 12: Install Jamb Mount
Fig. 12.1
