MOD 5 Pane
Window
A
Other Parts
1 x MOD 5 Pane Window
Hardware
7 x #8 x 7/8” Truss Screw
S0
A
x 7
S0
9248
S0
Fig. 9.4
Fig. 9.5
Fig. 9.3

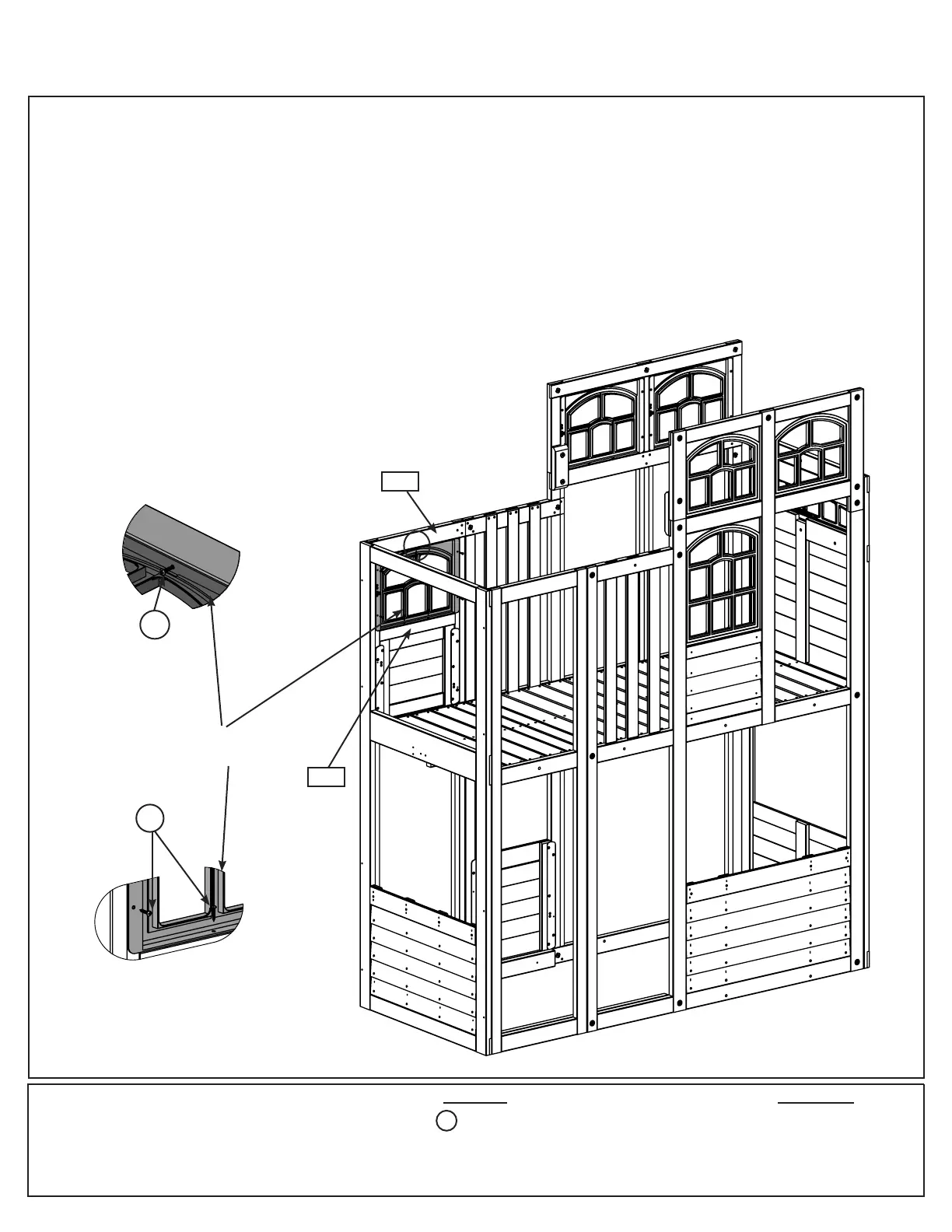

C: Insert MOD 5 Pane Window into the opening and attach to (9248) Narrow Panel and (9386) Window Bottom
Spacer using 7 (S0) #8 x 7/8” Truss Screws.
9386
Step 9: Install Window and Wall Insert
Part 2
