Step 3: Back Wall Assembly
Part 3
H: Place 2 MOD 5 Pane Windows in the upper openings and attach to frame assembly using 7 (S0) #8 x 7/8”
Truss Head Screws per window. (g. 3.5, 3.6 and 3.7)
I: Place (9377) Window Brace over the pre-drilled holes in (9353) Cross Support Top and (9370) Right Upright Back
to join the sections. Attach using 2 (H10) ¼ x 2- ¼” Hex Bolts (with lock washer, at washer and t-nut). (g. 3.5)
J: Loosely attach (9363) Base End Post to (9372) Cross Frame using 1 (WB1) 5/16 x 1” Wafer Bolt (with at
washer and t-nut). (g. 3.8)
K: Place 1 (9451) Cross Support Middle Short over the center hole in (9363) Base End Post and 1 (9366) Narrow
Mid Cross Back over the top hole. Loosely attach boards using 4 (WB1) 5/16 x 1” Wafer Bolts (with at washer
and t-nut) in the locations shown in g. 3.8.

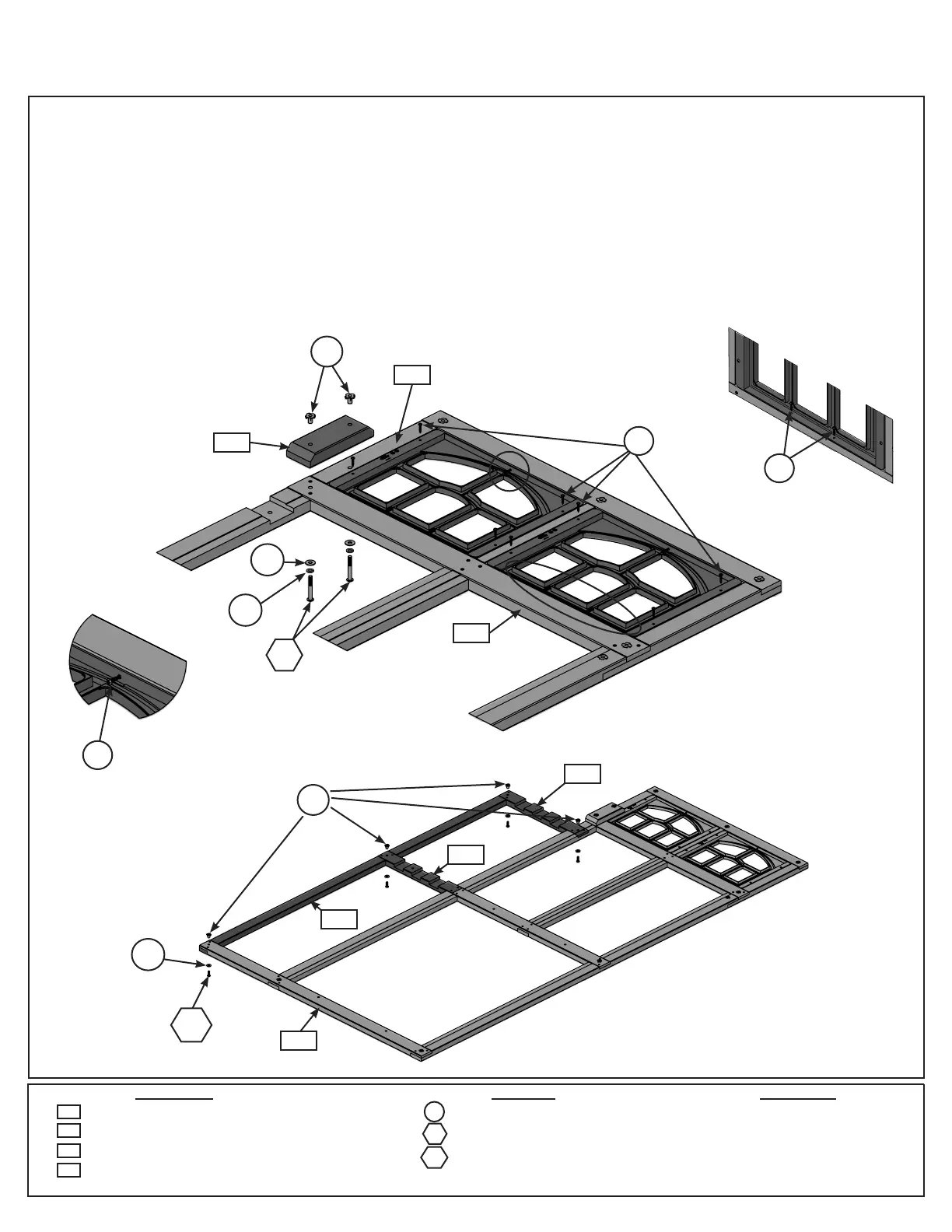

Fig. 3.5
Fig. 3.6
Fig. 3.7
9377
9353
WB1
x 4
9363
9451
9372
9366
Fig. 3.8
S0
1 x Base End Post 1-1/4 x 2-1/4 x 86-29/32”
1 x Narrow Mid Cross 1-1/4 x 3 x 22-5/16”
1 x Cross Support Middle Short 1-1/4 x 3 x 20-13/16”
9363
9451
9377
9366
Wood Parts
WB1
9370
2 x MOD 5 Pane Window
Other Parts
1 x Window Brace 1-1/4 x 3 x 8"
TN2
FW2
FW1
LW1
TN1
