Step 3: Back Wall Assembly
Part 2

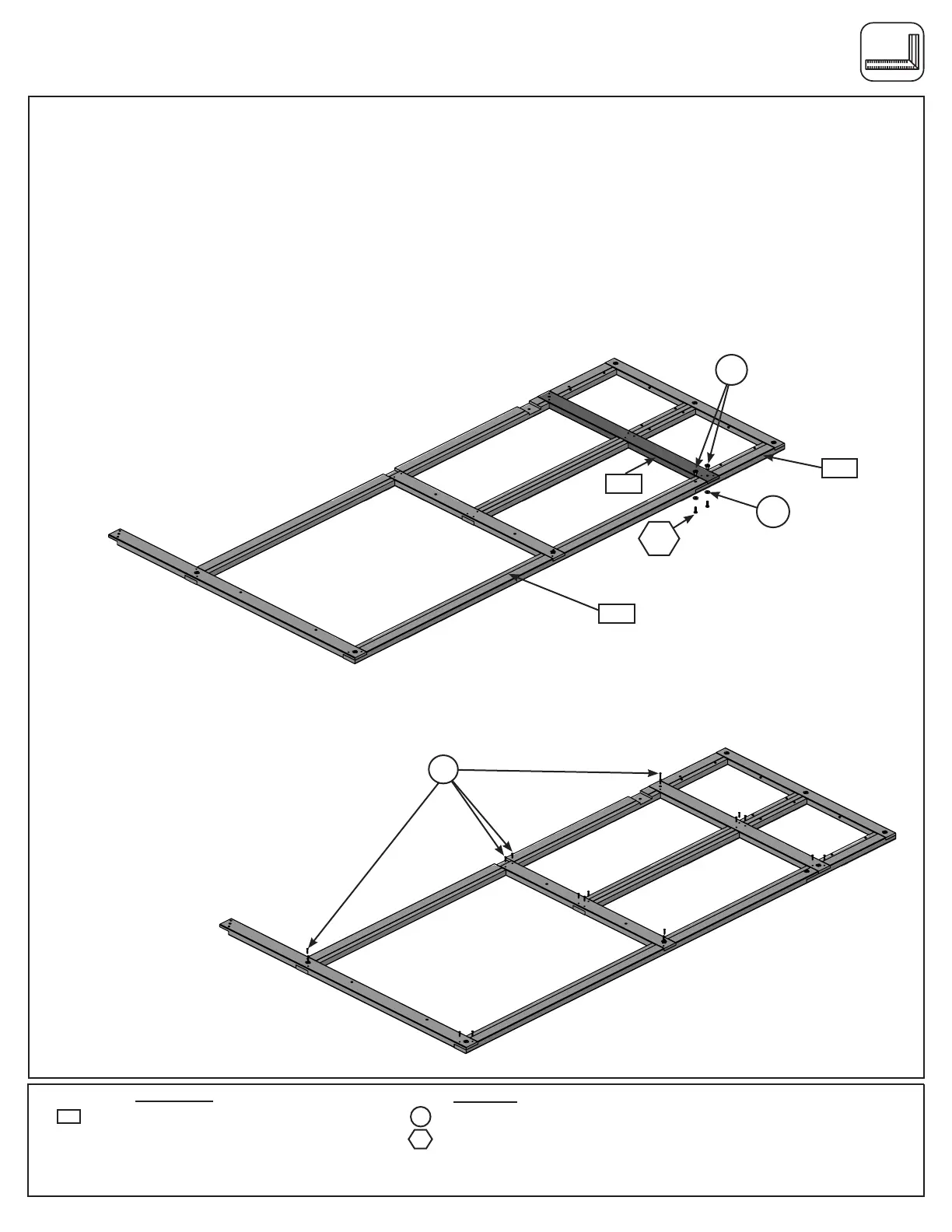

E: Bring the top and bottom of the frame assemblies together as shown in g. 3.3. Place 1 (9353) Cross Support
Top across the assemblies where they meet. Attach (9353) Cross Support Top to (9371) Left Upright Back using
1 (WB1) 5/16 x 1” Wafer Bolt (with at washer and t-nut) and install a second (WB1) 5/16 x 1” Wafer Bolt (with at
washer and t-nut) to attach (9360) Back Post Left to (9371) Left Upright Back.
(g. 3.3)
F: Make sure that the assembly is square and then install 18 (S30) #8 x 1- 1/16” Wood Screws in the locations
shown in g. 3.4.
G: Tighten all bolts.
Fig. 3.4
Fig. 3.3
9360
9371
9353
1 x Cross Support -Top 1-1/4 x 3 x 42-15/16”
Wood Parts
2 x 5/16 x 1” Wafer Bolt
(FW2, TN2)
WB1
9353
x 2
WB1
TN2
FW2
To Next Page
