46
16 x #8 x 2” Wood Screw
Hardware
S11
S11
S11
2 x Short Bottom 1-1/4 x 2 x 20-5/8”
4 x Tower Roof Support 1-5/16 x 2-5/16 x 23-5/8”
Wood Parts
9459
9380
9459
9460
9379
9379
9380
x 2 per
side
x 2 per
side

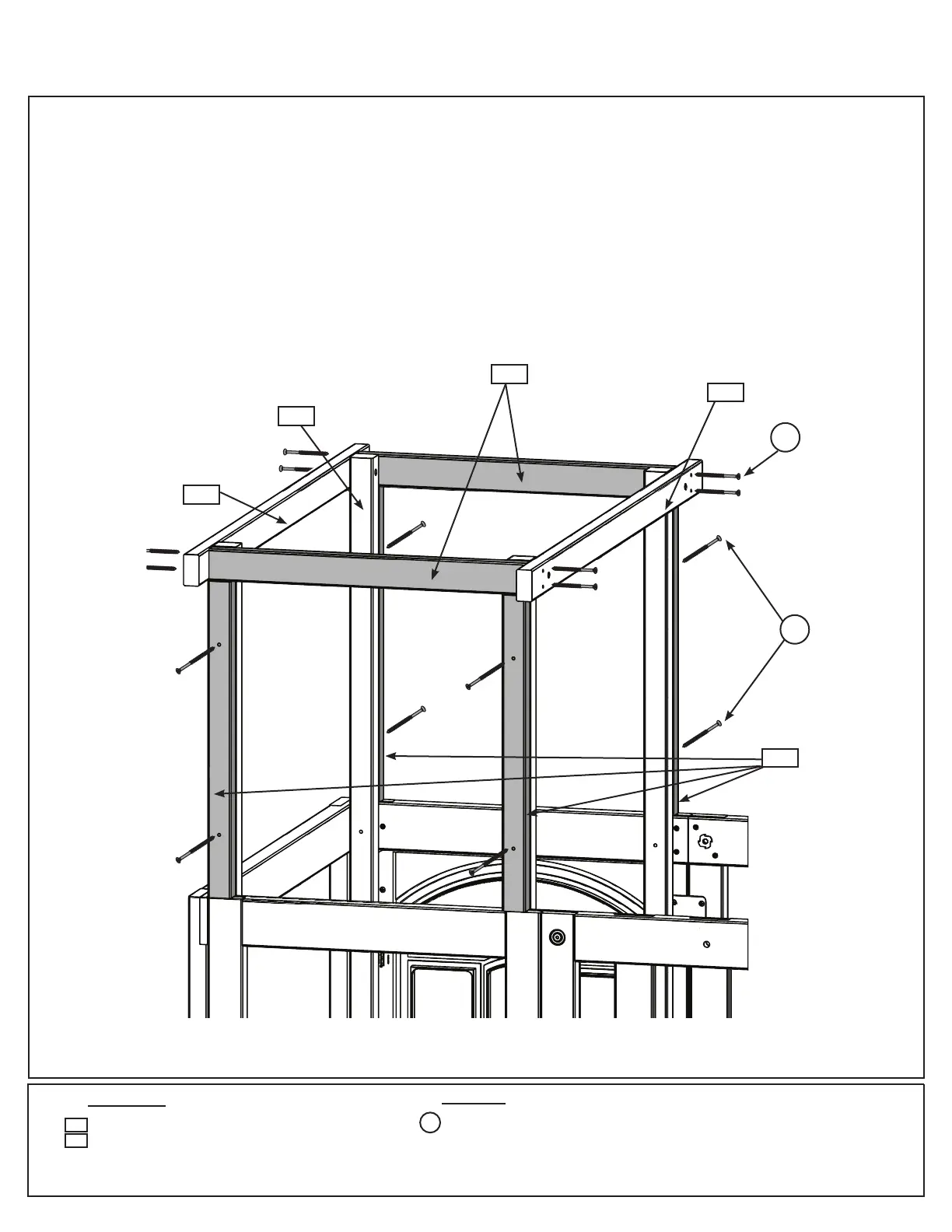

B: Place (9459) Short Bottoms across the front and back of the tower assembly so they are ush to the tops of
(9460) Wall Supports and (9379) Softs. Attach from the outside of (9379) Softs using 4 (S11) #8 x 2” Wood
Screws per board. (g 14.2)
C: On the front and back of the tower assembly install 2 (9380) Tower Roof Supports between the (9459) Short
Bottoms and the (9248) Narrow Panels so they are ush and tight to the (9460) Supports. Attach using 2 (S11) #8 x
2” Wood Screws per board. (g 14.2)
Step 14: Tower Roof Support Assembly
Part 2
Fig. 14.2
